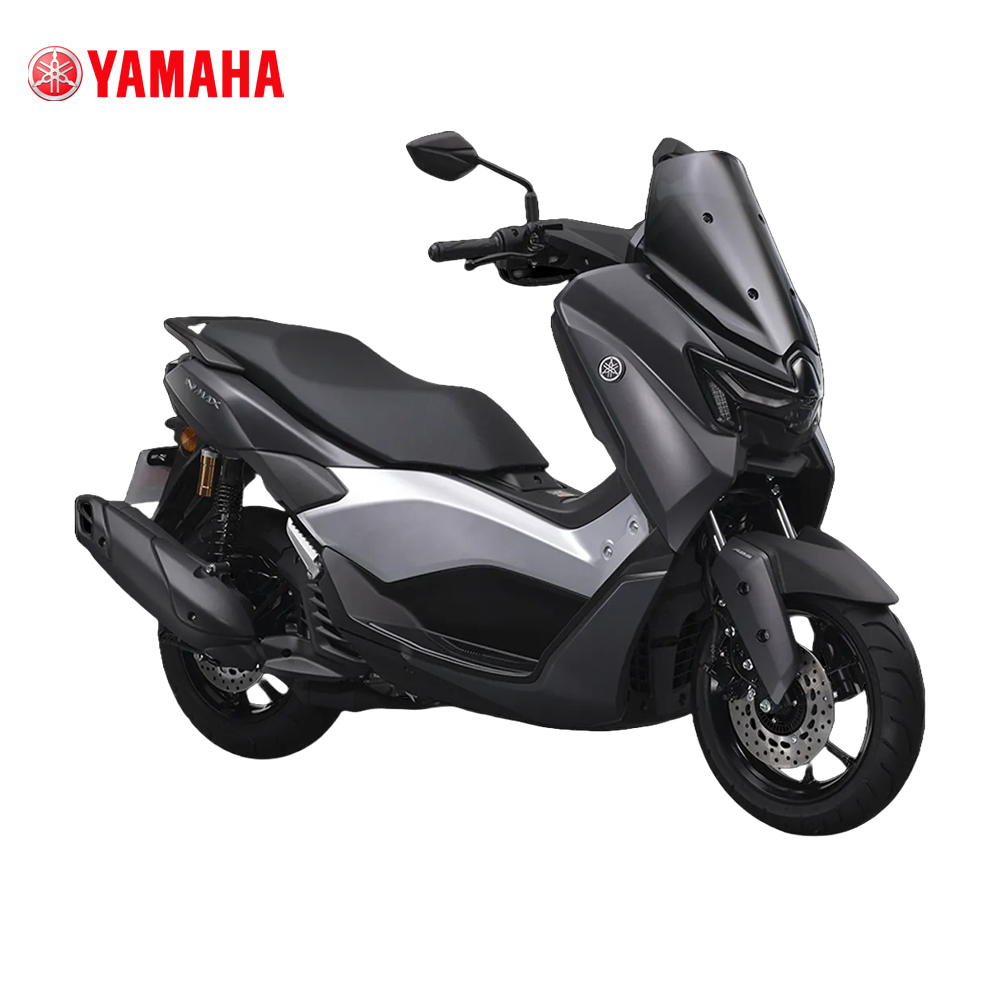

Yamaha Motorcycle NMAX

Description

Yamaha Motorcycle Nmax
ENGINE
• ENGINE TYPE: Liquid cooled, 4-stroke, SOHC, 4-valve
• CYLINDER ARRANGEMENT: Single Cylinder
• DISPLACEMENT: 155cm³
• BORE X STROKE: 58.0×58.7mm
• COMPRESSION RATIO: 11.6:1
• MAXIMUM HORSEPOWER: 11.3k·W(15.4PS)/8000r/min
• MAXIMUM TORQUE: 14.2N·m(1.4kgf·m)/6500r/min
• STARTING SYSTEM TYPE: Electric starter
• LUBRICATION SYSTEM: Wet Sump
• ENGINE OIL CAPACITY: 1L
• CLUTCH TYPE: Dry, centrifugal, shoe
• TRANSMISSION TYPE: V-belt automatic
• FUEL TANK CAPACITY: 7.1L
• FUEL SUPPLY: Fuel injection

CHASSIS
• FRAME TYPE: Backbone
• FRONT SUSPENSION TYPE: Telescopic fork
• REAR SUSPENSION TYPE: Unit Swing
• FRONT TIRE SIZE: 110/70-13 M/C 48P Tubeless
• REAR TIRE SIZE: 130/70-13 M/C 63P Tubeless
• FRONT BRAKE TYPE: Hydraulic single disc brake
• REAR BRAKE TYPE: Hydraulic single disc brake

ELECTRICAL
• Ignition System: TCI (Transistor Controlled Ignition)
• BATTERY TYPE: YTZ6V, 12V, 5.0Ah (10HR)

DIMENSION
• OVERALL LENGTH: 1935mm
• OVERALL WIDTH: 740mm
• OVERALL HEIGHT: 1200mm
• SEAT HEIGHT: 770mm
• WHEELBASE: 1340mm
• MINIMUM GROUND CLEARANCE: 125mm
• WET WEIGHT (WITH OIL AND A FULL FUEL TANK): 131kg

OTHERS
• SMART KEY: Equipped
• ABS (ANTI-LOCK BRAKING SYSTEM): Equipped
• TCS (TRACTION CONTROL SYSTEM): Equipped
• STOP & START SYSTEM: Equipped
• ELECTRIC POWER SOCKET: Equipped

Note: Available in Visayas, Mindanao and Palawan area.
