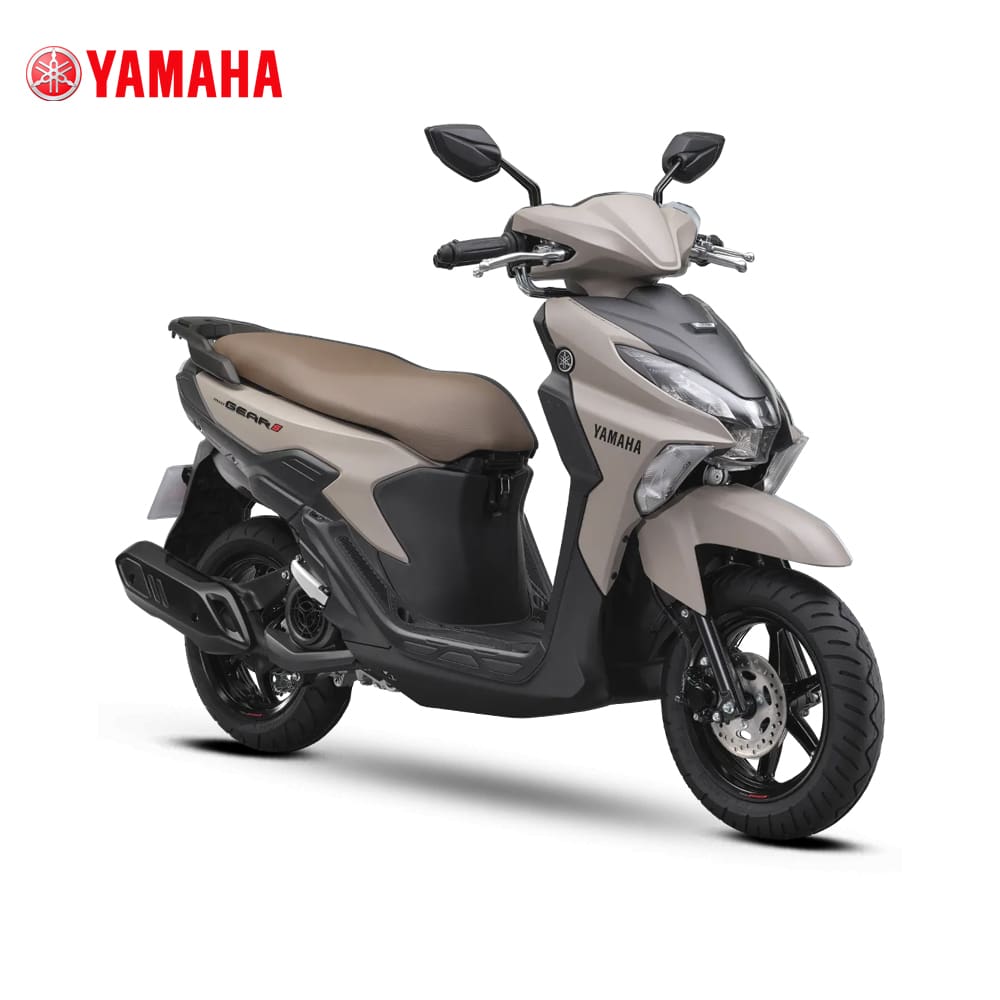

Yamaha Motorcycle Mio Gear S

Description

Yamaha Motorcycle Mio Gear S
Engine
• ENGINE TYPE: Air cooled, 4-stroke, SOHC, 2-valve
• CYLINDER ARRANGEMENT: Single cylinder
• DISPLACEMENT: 125cm³
• BORE X STROKE: 52.4×57.9mm
• COMPRESSION RATIO: 11.0:1
• MAXIMUM HORSEPOWER: 6.2kW(8.4PS)/6500r/min
• MAXIMUM TORQUE: 9.9N·m(1.0kgf·m)/5000r/min
• STARTING SYSTEM TYPE: Electric starter
• LUBRICATION SYSTEM: Wet sump
• ENGINE OIL CAPACITY: 0.84L
• CLUTCH TYPE: Dry, centrifugal, shoe
• TRANSMISSION TYPE: V-belt automatic
• FUEL TANK CAPACITY: 5.1L
• FUEL SUPPLY: Fuel injection

Chassis
• FRAME TYPE: Underbone
• FRONT SUSPENSION TYPE: Telescopic fork
• REAR SUSPENSION TYPE: Unit swing
• FRONT TIRE SIZE: 110/70-12 47L tubeless
• REAR TIRE SIZE: 110/70-12 47L tubeless
• FRONT BRAKE TYPE: Hydraulic single disc brake
• REAR BRAKE TYPE: Mechanical leading trailing drum brake

Electrical
• IGNITION SYSTEM: TCI (Transistor Controlled Ignition)
• BATTERY TYPE: YTZ6V

Dimension
• OVERALL LENGTH: 1850mm
• OVERALL WIDTH: 685mm
• OVERALL HEIGHT: 1075mm
• SEAT HEIGHT: 750mm
• WHEELBASE: 1280mm
• MINIMUM GROUND CLEARANCE: 135mm
• WET WEIGHT (WITH OIL AND A FULL FUEL TANK): 95kg

Others
• METER PANEL: Digital
• STOP & START SYSTEM: Equipped

Note: Available in Visayas, Mindanao and Palawan area.
