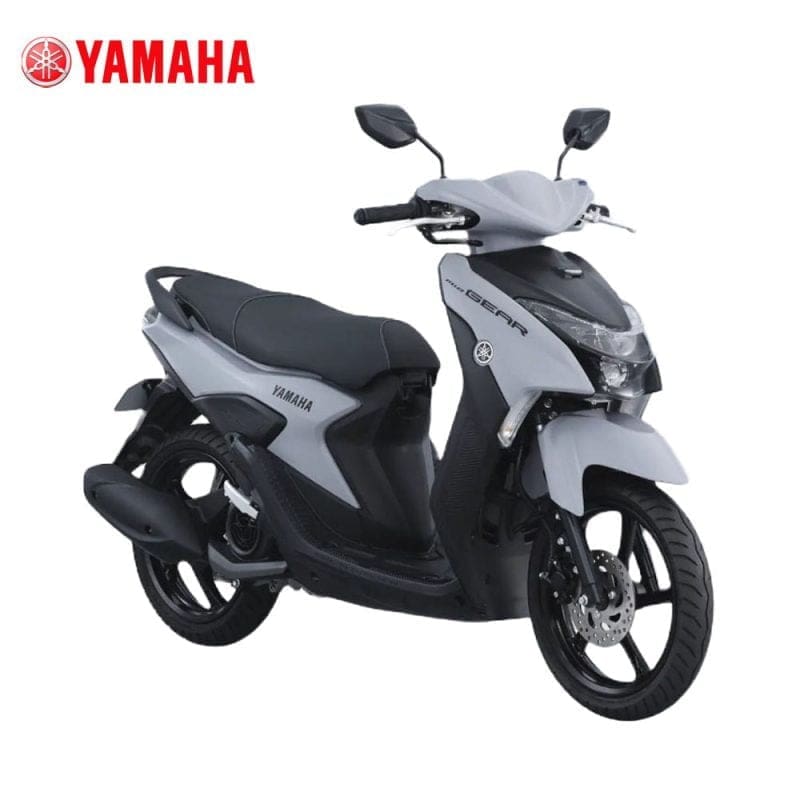

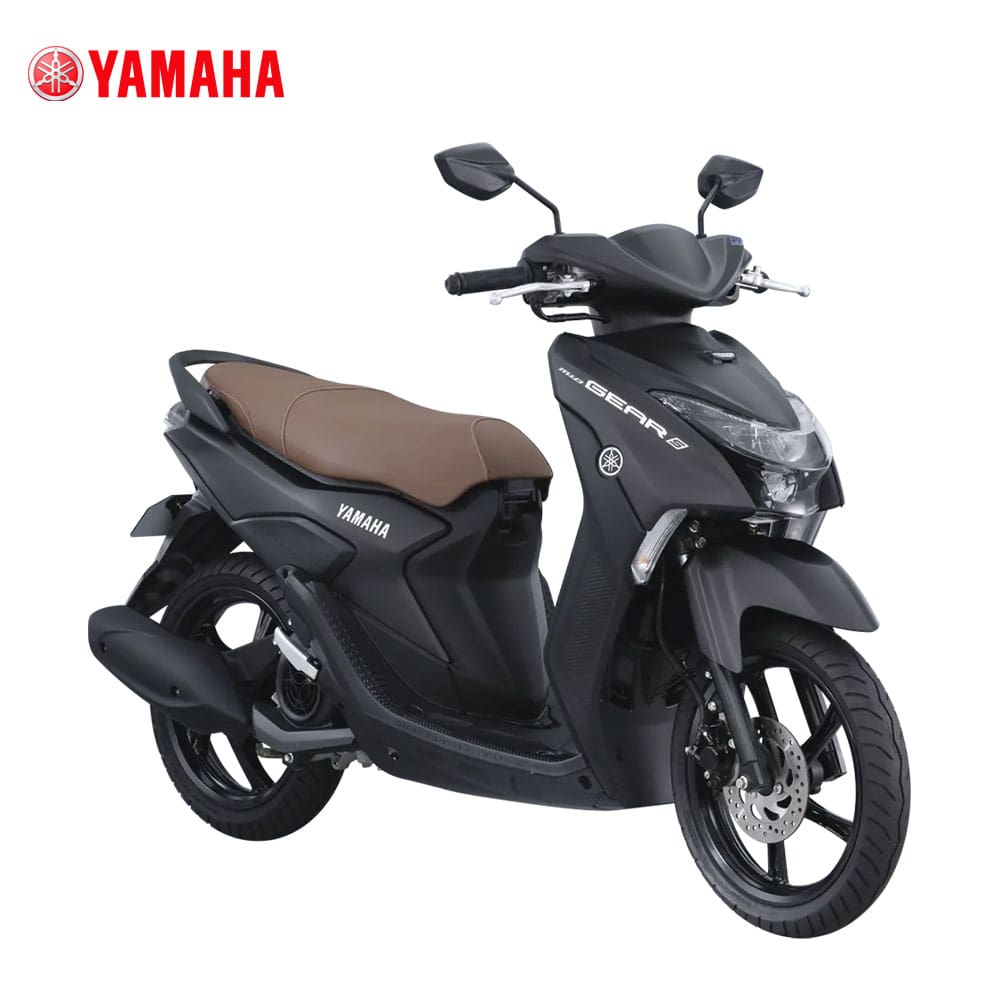

Yamaha Motorcycle Mio Gear

Description

Yamaha Motorcycle Mio Gear
ENGINE
• Engine Type: Air cooled,4-stroke, SOHC, 2-valve
• Cylinder Arrangement: Single cylinder
• Displacement: 125cm3
• Bore & stroke: 52.4 X 57.9mm
• Compression ratio: 9.5:1
• Maximum horse power: 7.0kW(9.4PS)/8000r/min
• Maximum Torque: 9.6N･m(1.0kgf･m)5500r/min
• Starting System: Electric starter and Kickstarter
• Lubrication System: Force-feed lubrication,wet sump
• Engine oil capacity: 0.8L
• Fuel supply system: Fuel Injection
• Clutch Type: Dry, centrifugal
• Transmission type: V-belt automatic

CHASSIS
• Frame Type: Underbone
• Front Suspension: Telescopic
• Rear Suspension: Unit swing
• Front Tire: 80/80-14M/C 43P(Tubeless)
• Rear Tire: 100/70-14M/C 51P(Tubeless)
• Front Brake: Hydraulic disc brake
• Rear Trake: Mechanical leading trailing shoe brake（Drum brake）

ELECTRICAL
• Ignition system Type: TCI(Transistor controlled ignition)
• Battery: YTZ4V, GTZ4V, NTZ4V
• Headlight: LED /12V, 7.6W x1 (hi-beam) | LED /12V, 5.1W x1 (lo-beam)
• Tail light
– 12V,21/5W×1
– 12V,21/5Wx1

DIMENSION
• Overall length x width x height: 1,870mm X 685mm X 1,060mm
• Seat height: 750mm
• Wheelbase: 1,260mm
• Minimum ground clearance: 135mm
• Wet weight (with oil and a full fuel tank): Mio Gear – 95kg
• Fuel tank capacity: 4.2L

STANDARD EQUIPMENT
• Meter Panel: Analogue

Note: Available in Visayas, Mindanao and Palawan area.
