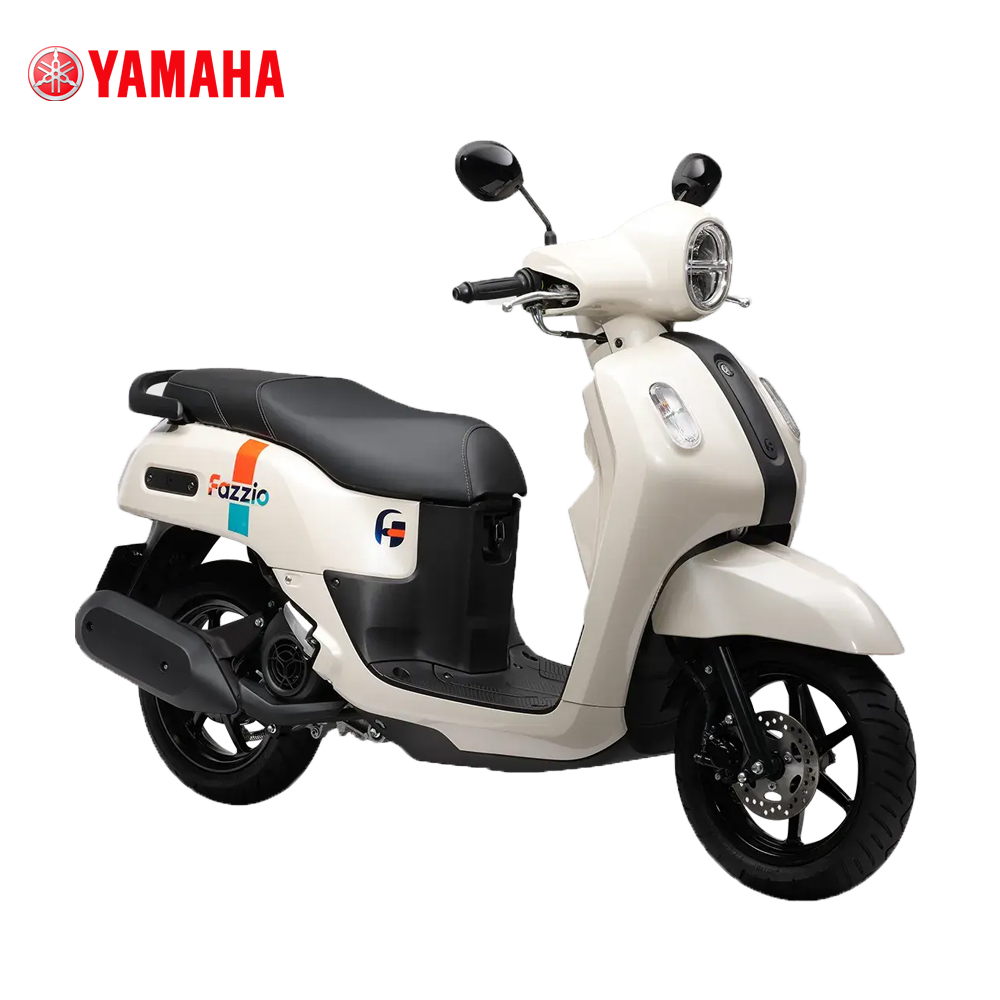

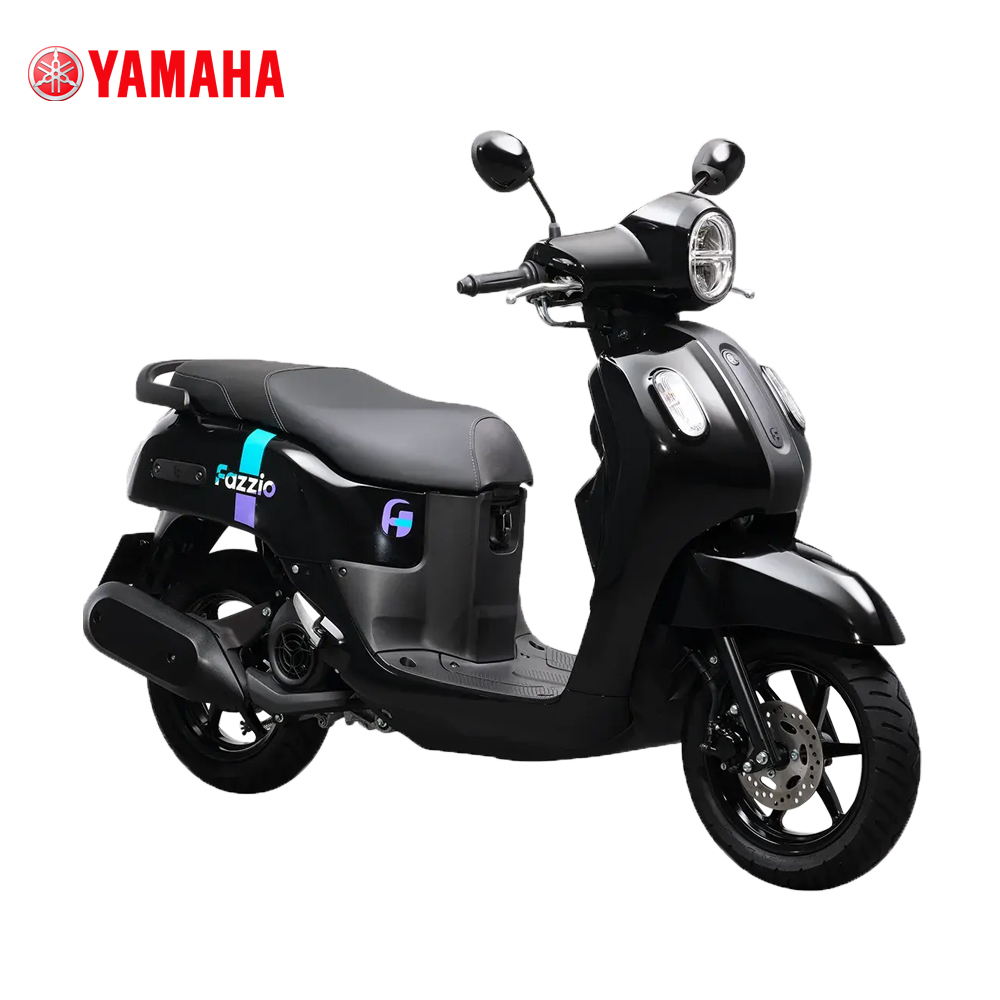

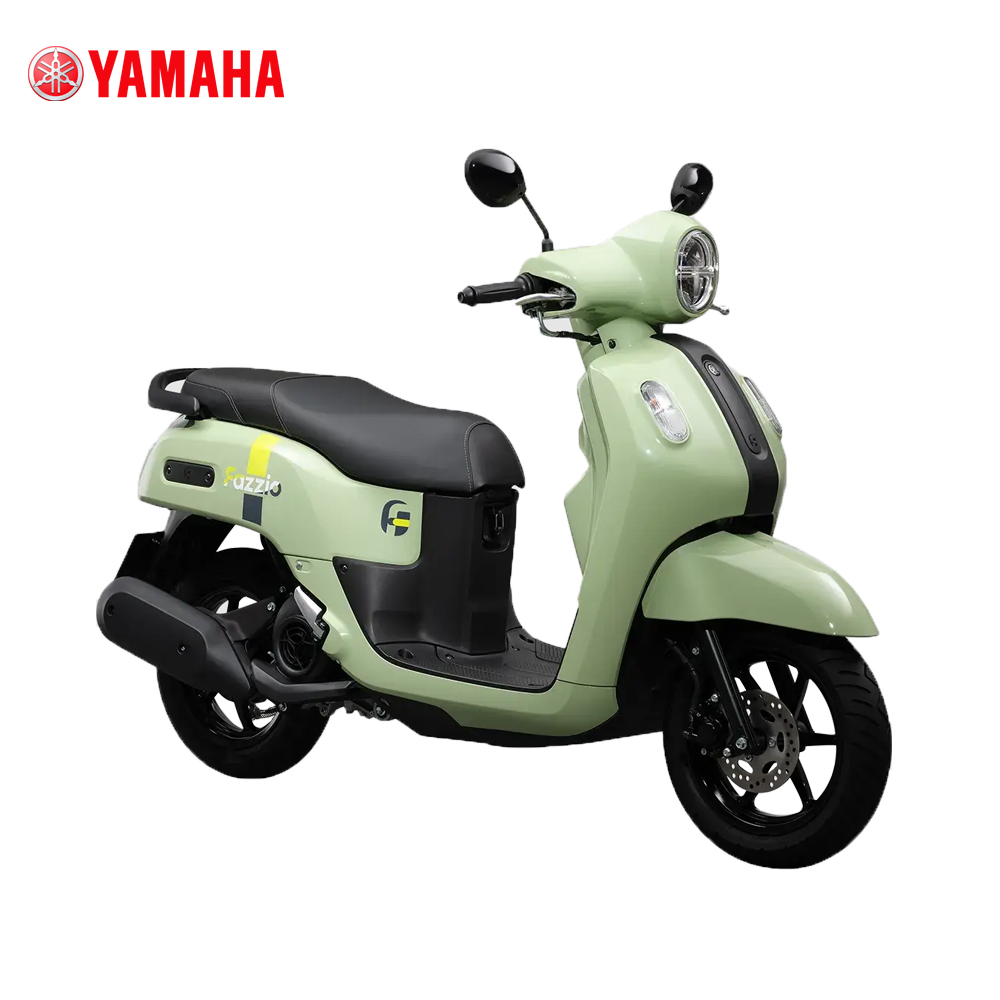

Yamaha Motorcycle Mio Fazzio

Description

ENGINE
• Engine type: Air cooled, 4-stroke, SOHC, 2 Valve
• Cylinder arrangement: Single Cylinder
• Displacement: 125 cm³
• Bore & stroke: 52.4×57.9mm
• Compression ratio: 11.0:1
• Maximum horse power: 6.2kW(8.4PS)/6500r/min
• Maximum torque: 9.9N・m(1.0kgf・m)/5000r/min
• Maximum horse power(when assist is activated): 6.2kW(8.4PS)/6500r/min
• Maximum torque (when assist is activated): 10.6N・m(1.1kgf・m)/4500r/min
• Starting system: Electric Starter
• Lubrication system: Wet sump
• Engine oil capacity: 0.84L
• Fuel supply system: Fuel injection
• Clutch type: Dry, Centrifugal, Shoe
• Transmission type: V-Belt Automatic

CHASSIS
• Frame type: Underbone
• Front suspension: Telescopic Fork
• Rear suspension: Unit Swing
• Front tire: 110/70-12 47L Tubeless
• Rear tire: 110/70-12 47L Tubeless
• Front brake: Hydraulic Single Disc Brake
• Rear brake: Mechanical Leading Trailing Drum Brake

ELECTRICAL
• Ignition system type: TCI (Transistor Controlled Ignition)
• Battery: YTZ6V, 12V, 5.0Ah (10HR)
• Headlight: LED
• Tail light: 12V, 18/5W x 1

DIMENSION
• Overall length x width x height: 1820mm x 685mm x 1125mm
• Seat height: 750mm
• Wheelbase: 1280mm
• Minimum ground clearance: 135mm
• Curb weight (with oil and full fuel tank): 95kg
• Fuel tank capacity: 5.1L

STANDARD EQUIPMENT
• Meter panel: Digital
• Y-connect: Equipped

Note: Available in Visayas and Mindanao areas
