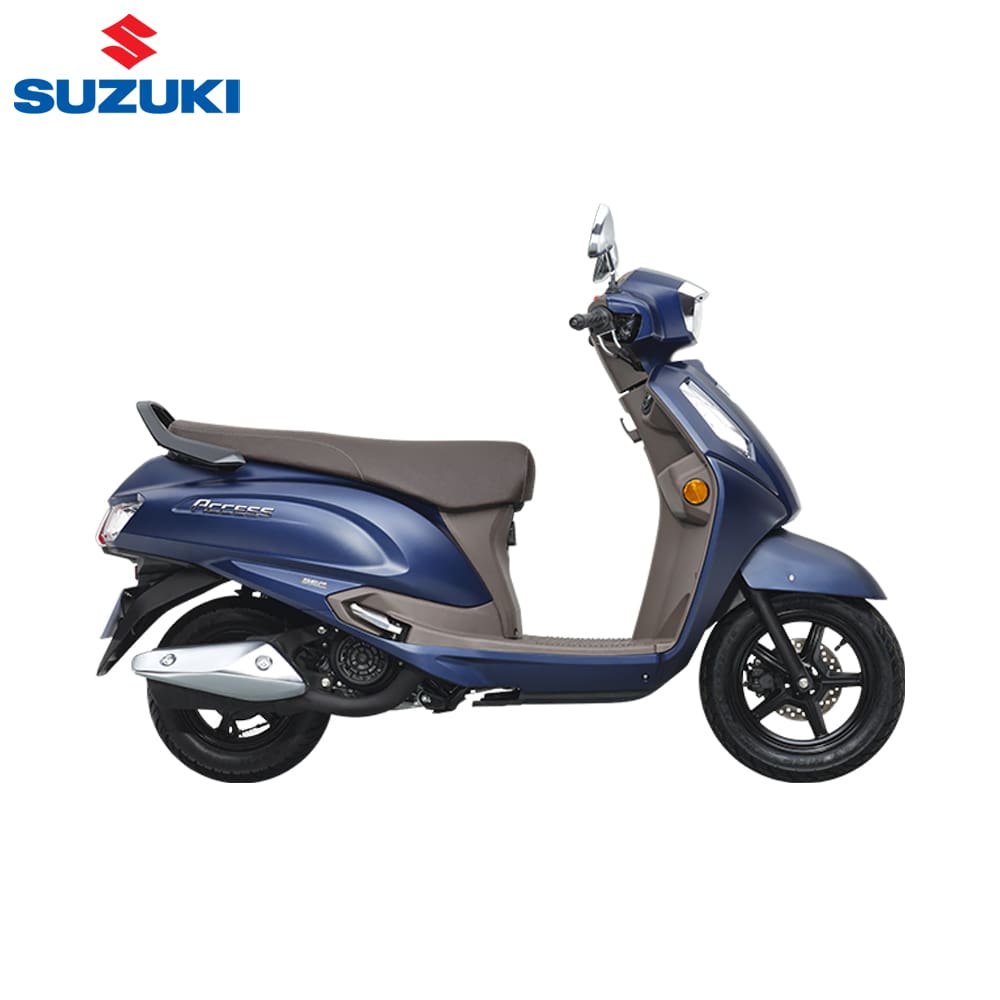

Suzuki Motorcycle Access 125 (Ride Connect Edition)

Description

Suzuki Motorcycle Access 125 (Ride Connect Edition)
Engine
• Engine Type: 4-Stroke, 1-cylinder, SOHC, 2 Valve
• Bore x Stroke: 52.5 MM x 57.4 MM
• Max Power: 6.2 KW / 6,500 RPM
• Max Torque: 10.2 NM / 5,000 RPM
• Engine Displacement: 124CC
• Fuel System: FUEL INJECTED
• Cooling System: AIR COOLED
• Starting: ELECTRIC & KICK
• Transmission Type: CVT
• Ignition System: ELECTRONIC IGNITION (TRANSISTORIZED)
• Compression Ratio: 10.3 : 1
• Lubrication: WET SUMP

Chassis
• Suspension (Front): Telescopic Front Fork , coil spring, oil damped
• Suspension (Rear): SWING-ARM TYPE, coil spring, OIL DAMPED
• Tire Size (Front): 90 / 90 – 12 44J, TUBELESS
• Tire Size (Rear): 90 / 90 – 10 53J, TUBELESS
• Brakes (Front): DISC
• Brakes (Rear): DRUM

Dimensions
• Overall Length: 1,085 MM
• Overall Width: 690 MM
• Overall Height: 1,155 MM
• Wheelbase: 1,260 MM
• Ground / Road Clearance: 160 MM
• Curb Mass: 106 KG
• Seat Height: 770 MM
• Fuel Tank Capacity: 5.3 L

Note: Available in Visayas, Mindanao and Palawan area.
