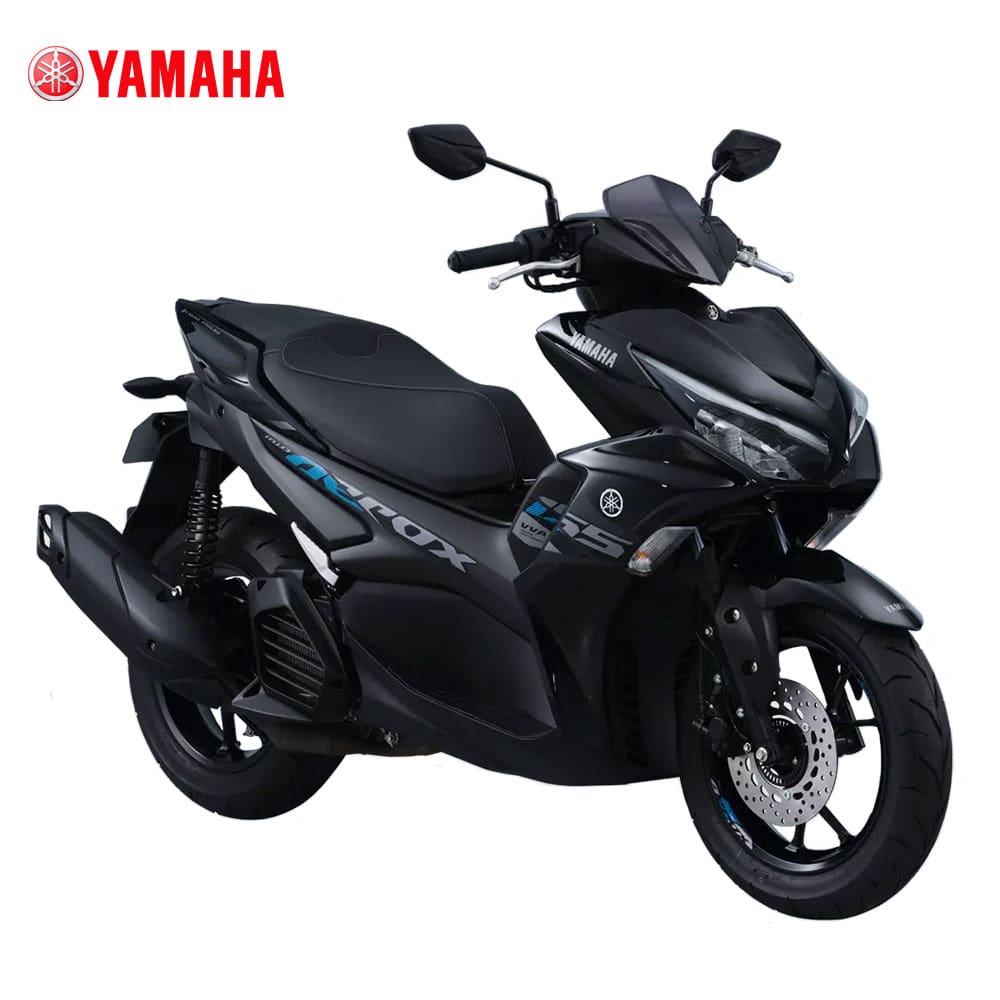

Yamaha Motorcycle Mio Aerox

Description

Engine
• Engine type: Liquid cooled, 4-stroke, SOHC, 4-valve
• Cylinder arrangement: Single Cylinder
• Displacement: 155 cm3
• Bore & stroke: 58.0 x 58.7mm
• Compression ratio: 11.6:1
• Maximum horse power: 11.3kW(15.4PS)/8000r/min
• Maximum torque: 13.9N・m(1.4kgf・m)/6500r/min
• Starting system: Electric starter
• Lubrication system: Wet Sump
• Engine oil capacity: 1.0 L
• Fuel supply system: Fuel Injection
• Clutch type: Dry, Centrifugal Shoe
• Transmission type: V-belt automatic

Chassis
• Frame type: Backbone
• Front suspension: Telescopic Fork
• Rear suspension: Unit Swing
• Front tire: 110/80-14M/C 53P Tubeless
• Rear tire: 140/70-14M/C 62P Tubeless
• Front brake: Mio Aerox S – Hydraulic single disc brake (230mm)&Mio Aerox – Hydraulic single disc brake (230mm)
• Rear brake: Mechanical leading trailing drum brake

Electrical
• Ignition system type: TCI (Transistor Controlled Ignition)
• Battery: Mio Aerox S – YTZ7V | Mio Aerox – NTZ6V/YTZ6V
• Headlight: LED
• Tail light: LED

Dimension
• Overall length x width x height: 1980mm X 700mm X 1150mm
• Seat height: 790mm
• Wheelbase: 1350mm
• Minimum ground clearance: 145mm
• Wet weight (with oil and a full fuel tank): Mio Aerox – 122kg
• Fuel tank capacity: 5.5L

Standard Equipment
• Meter panel: Digital
• Electric power socket: Equipped
• Y-connect: Equipped
• Y-connect: Equipped
• Stop & start system: Equipped
• Smart key: Equipped

Note: Available in Visayas and Mindanao areas
