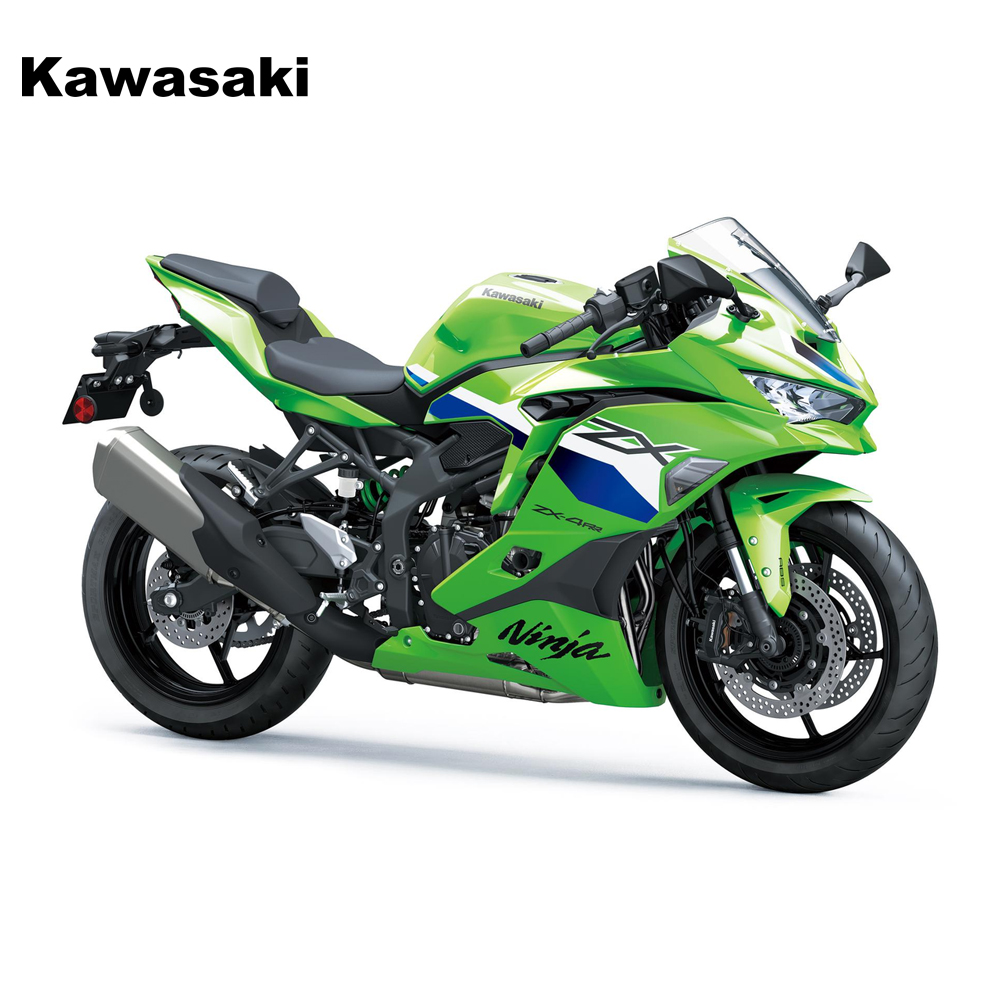

Kawasaki Motorcycle Ninja ZX-4RR

Description

Kawasaki Motorcycle Ninja ZX-4RR
Engine
• Engine type: Liquid-cooled, 4-stroke, in-line four
• Compression ratio: 12.6:1
• Valve system: DOHC, 16 valves
• Bore x stroke: 57.0 x 39.3 mm
• Displacement: 401 cm³
• Fuel system: Fuel injection: 34 mm x 4
• Lubrication: Forced lubrication, wet sump
• Starting system: Electric
• Ignition system: Digital

Performance & Transmission
• Maximum power: 57.0 kW {77 PS} / 14,000 rpm
• Maximum power with RAM Air: 58.7 kW {80 PS} / 14,000 rpm
• Maximum torque: 39.6 N•m {4.0 kgf•m} / 13,200 rpm
• Transmission: 6-speed, return shift
• Clutch: Wet, multi disc
• Primary reduction ratio: 2.029 (69/34)
• Gear ratios 1st: 2.929 (41/14)
• Gear ratios 2nd: 2.056 (37/18)
• Gear ratios 3rd: 1.619 (34/21)
• Gear ratios 4th: 1.333 (32/24)
• Gear ratios 5th: 1.154 (30/26)
• Gear ratios 6th: 1.037 (28/27)
• Final drive: Sealed chain
• Final reduction ratio: 3.429 (48/14)

Frame & Dimensions
• Frame type: Trellis, high-tensile steel
• Rake: 23.5 °
• Trail: 97 mm
• Wheel travel front: 120 mm
• Wheel travel rear: 124 mm
• Tyre, front: 120/70 ZR17 M/C (58W)
• Tyre, rear: 160/60 ZR17 M/C (69W)
• L x W x H: 1,990 x 765 x 1,110 mm
• Steering angle L/R: 35° / 35°
• Wheel base: 1,380 mm
• Ground clearance: 135 mm
• Fuel capacity: 15.0 litres
• Seat height: 800 mm
• Curb mass: 188 kg
• Estimated dry weight**: 174 kg

Brakes & Suspension
• Front brake type: Dual semi-floating discs
• Front brake diameter: Ø 290 mm
• Front brake caliper type: Radial-mount, monobloc, opposed 4-piston
• Rear brake type: Single disc
• Rear brake diameter: Ø 220 mm
• Rear brake caliper type: Single-piston
• Front suspension type: Single A-Arm with twin shock absorbers
• Front suspension diameter: Ø 37 mm
• Rear suspension type: Horizontal Back-link, BFRC lite gas-charged shock with piggyback reservoir, compression and rebound damping, spring preload adjustability, and top-out spring

Note: Available in Visayas, Mindanao and Palawan area.
