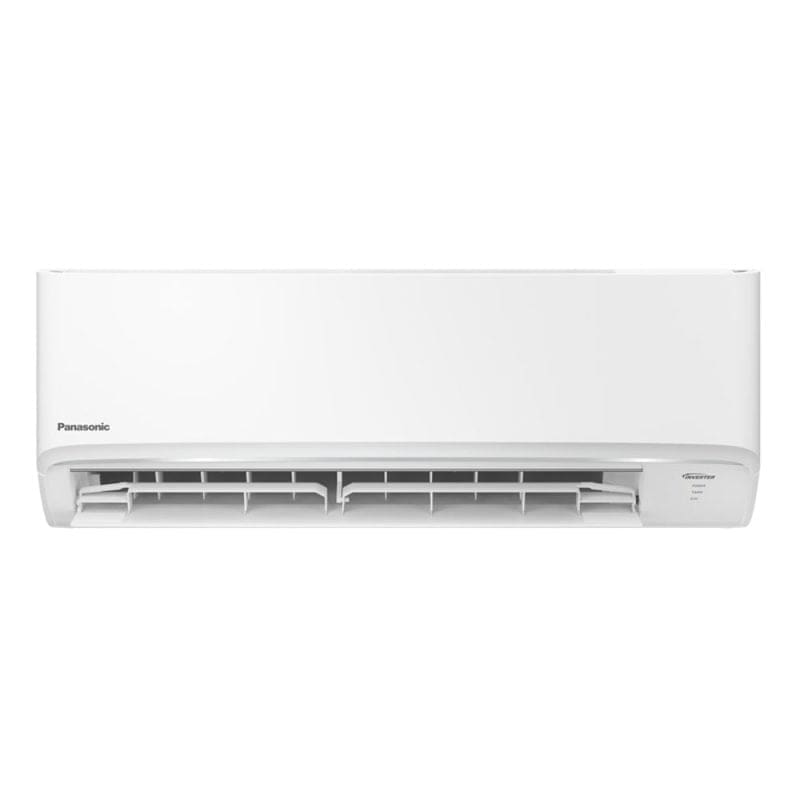

Panasonic 1HP Standard Inverter Split Type Aircon CS/CU-PU9WKQ

Description

Cooling Capacity
• (min-max) kW: 2.54 (0.84-3.10)
• (min-max) kJ/h: 9,140 (3,020-11,160)

EER
• (min-max) kJ/hW: 13.64 (13.73-12.61)

Electrical Data
• Voltage V: 230
• Current A: 3.2
• Power Input (min-max) W: 670 (225-885)

Moisture Removal
• L/h: 1.6
• Pt/h: 3.4 Air Circulation
• Indoor m3/min (ft3/min): 10.3 (365)
• Outdoor m3/min (ft3/min): 27.3 (960)

Noise Level
• Indoor (H / L / Q-Lo) dB (A): 36/26/21
• Outdoor (H) dB (A): 47

Dimensions Indoor (Outdoor)
Height
• mm: 290 (511)
• inch: 11-7/16 (20-1/8)
Width
• mm: 779 (650)
• inch: 30-11/16 (25-19/32)
Depth
• mm: 209 (230)
• inch: 8-1/4 (9-1/16)

Net Weight
• Indoor kg (lb): 8 (18)
• Outdoor kg (lb): 18 (40)

Refrigerant Pipe Diameter
• Liquid Side mm: ø 6.35
• inch: 1/4
• Gas Side mm: ø 9.52
• inch: 3/8 Pipe Extension
• Chargeless Pipe Length m: 7.5
• Maximum Pipe Length m: 20
• Maximum Elevation Length m:15

Power Supply
• Outdoor
• Additional Refrigerant Gas* g/m: 10

Note: Available in Visayas and Mindanao only
