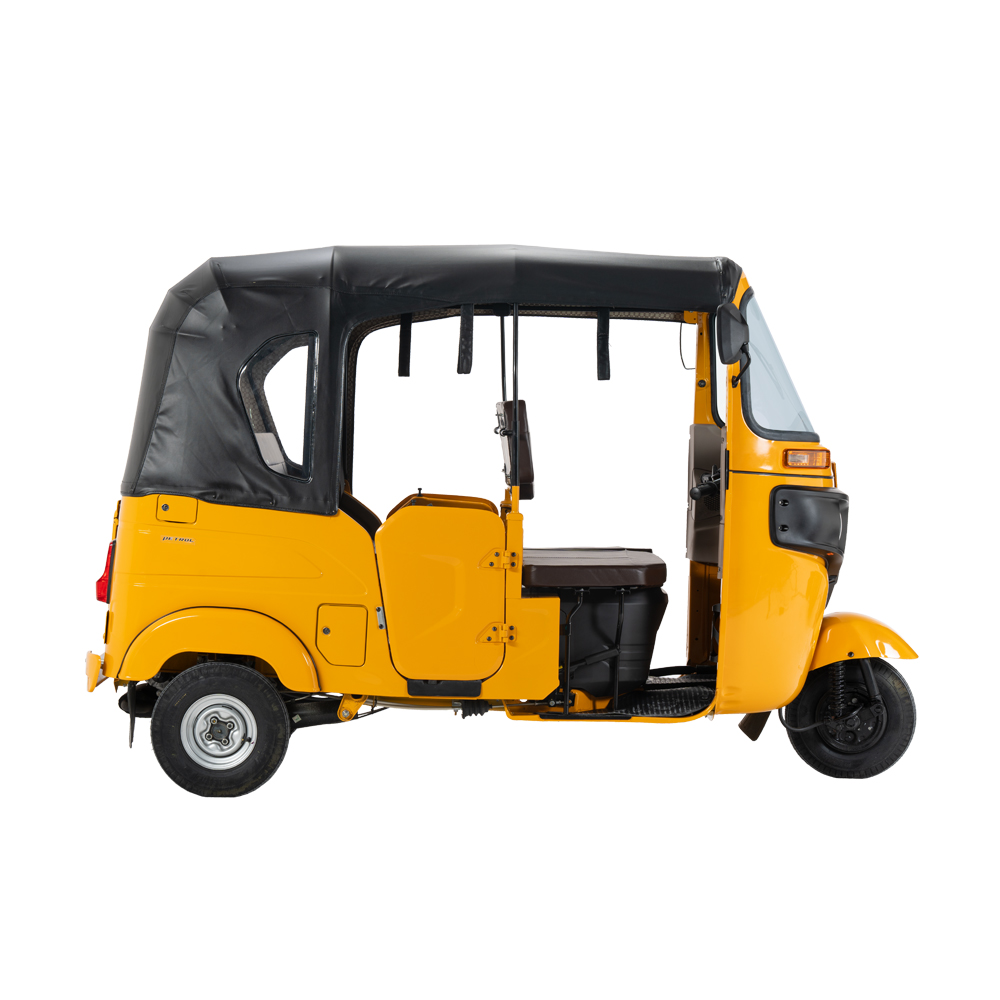

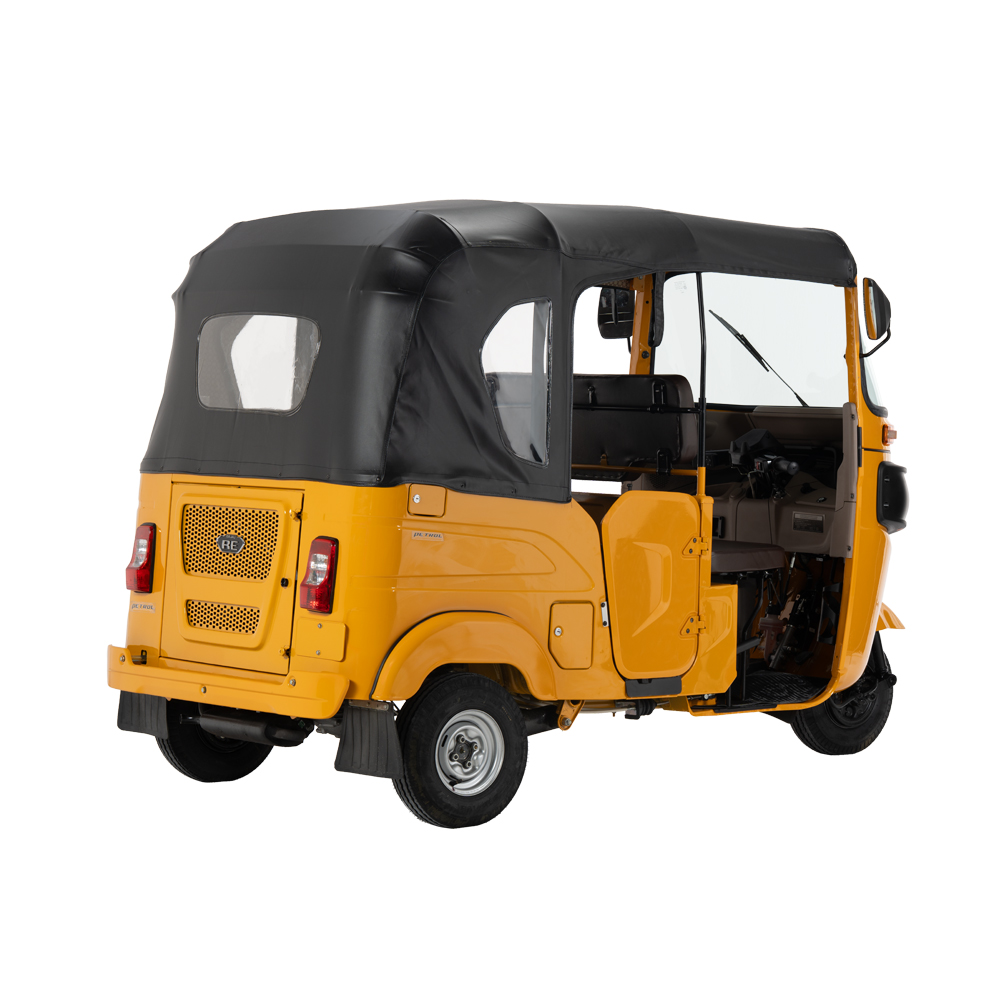

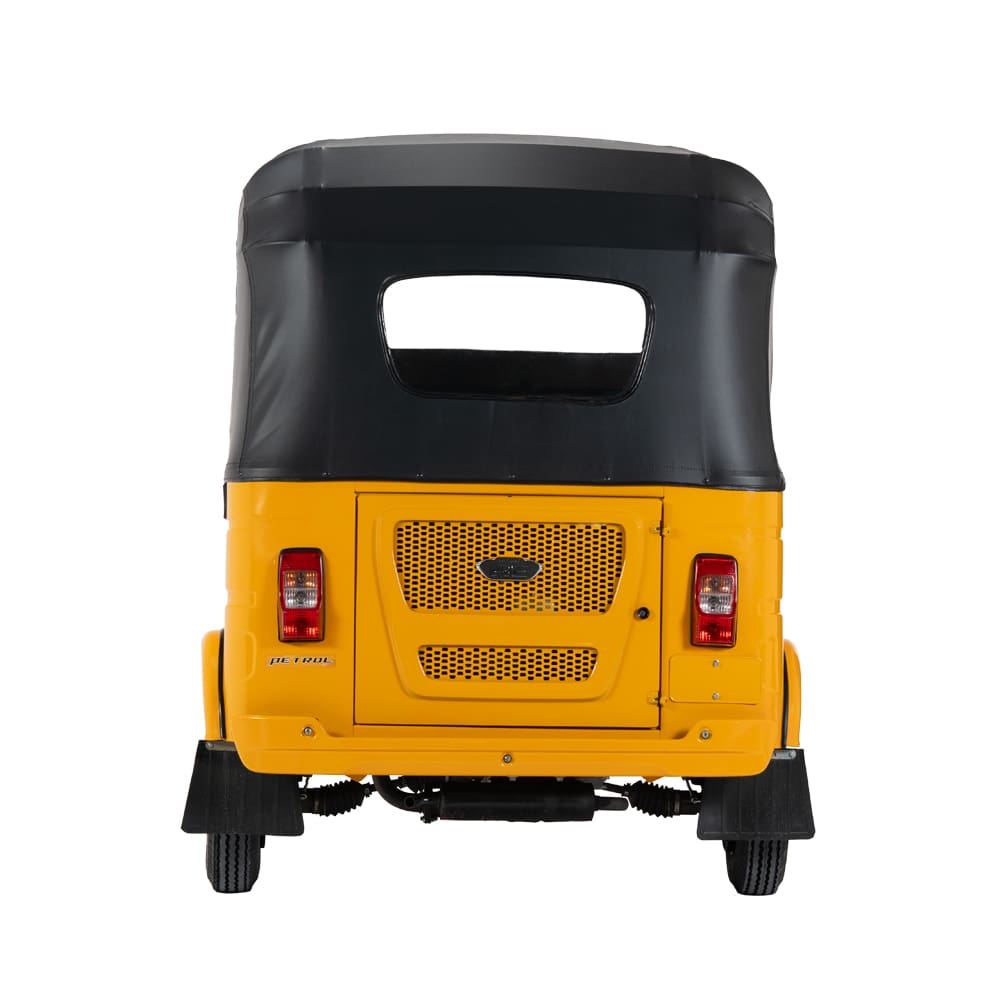

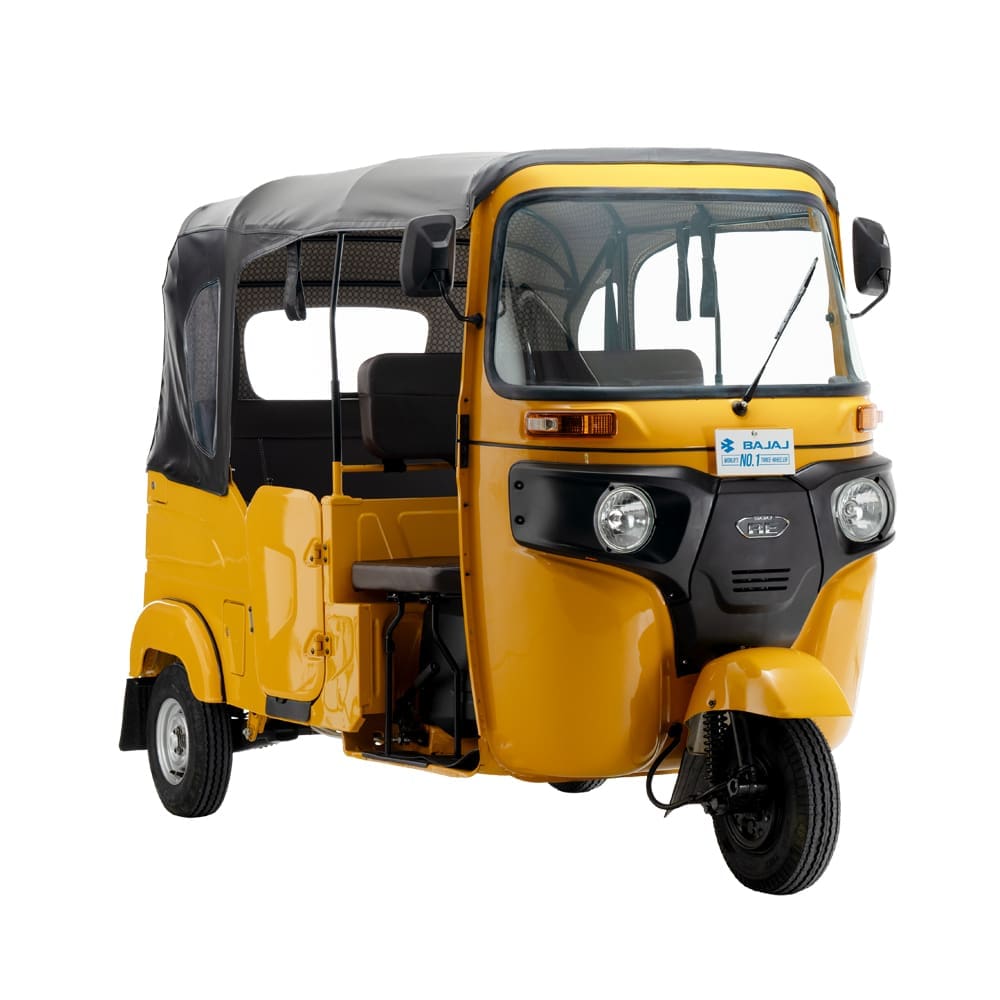

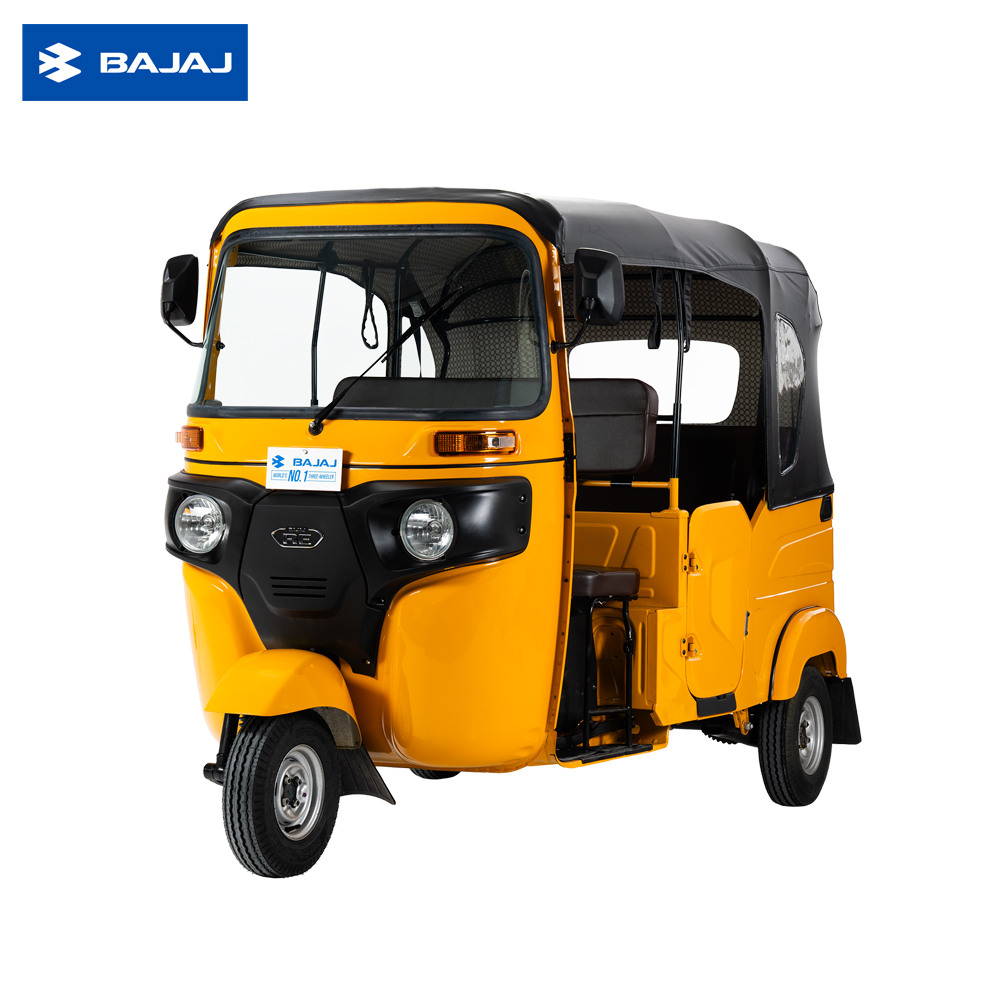

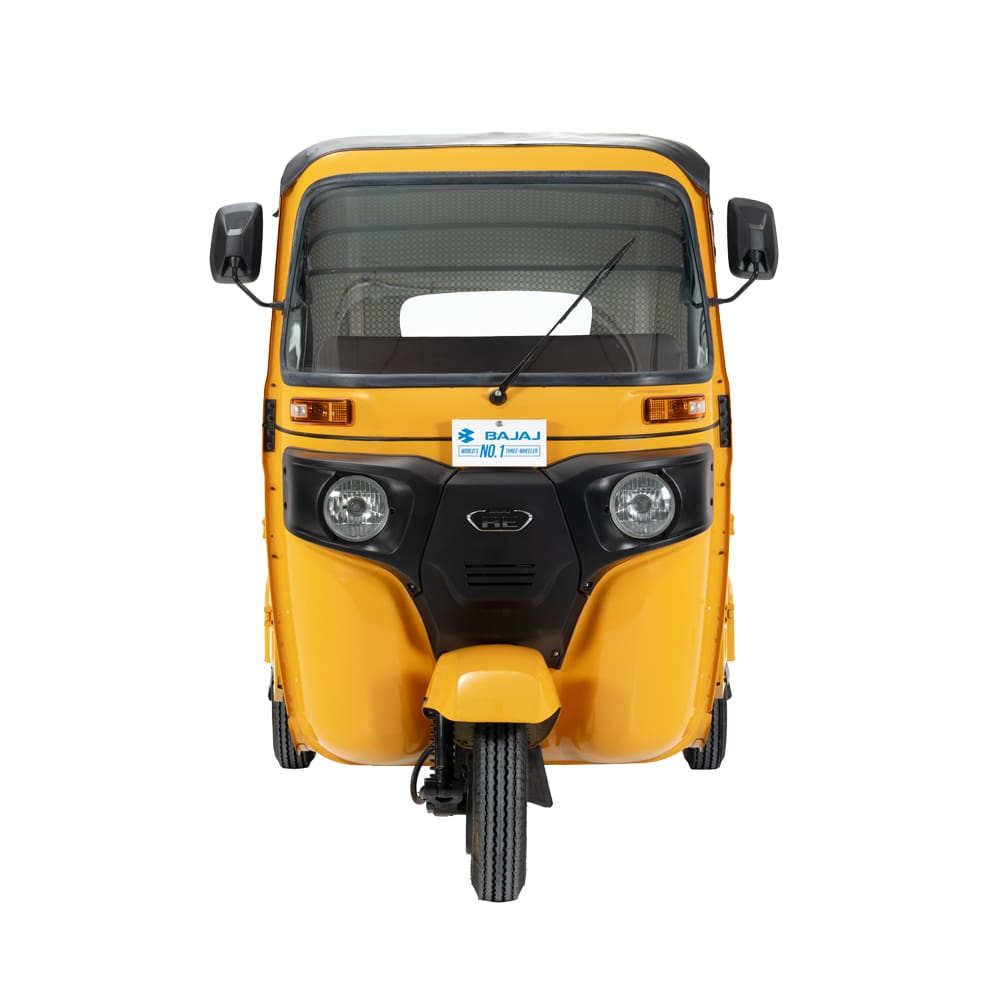

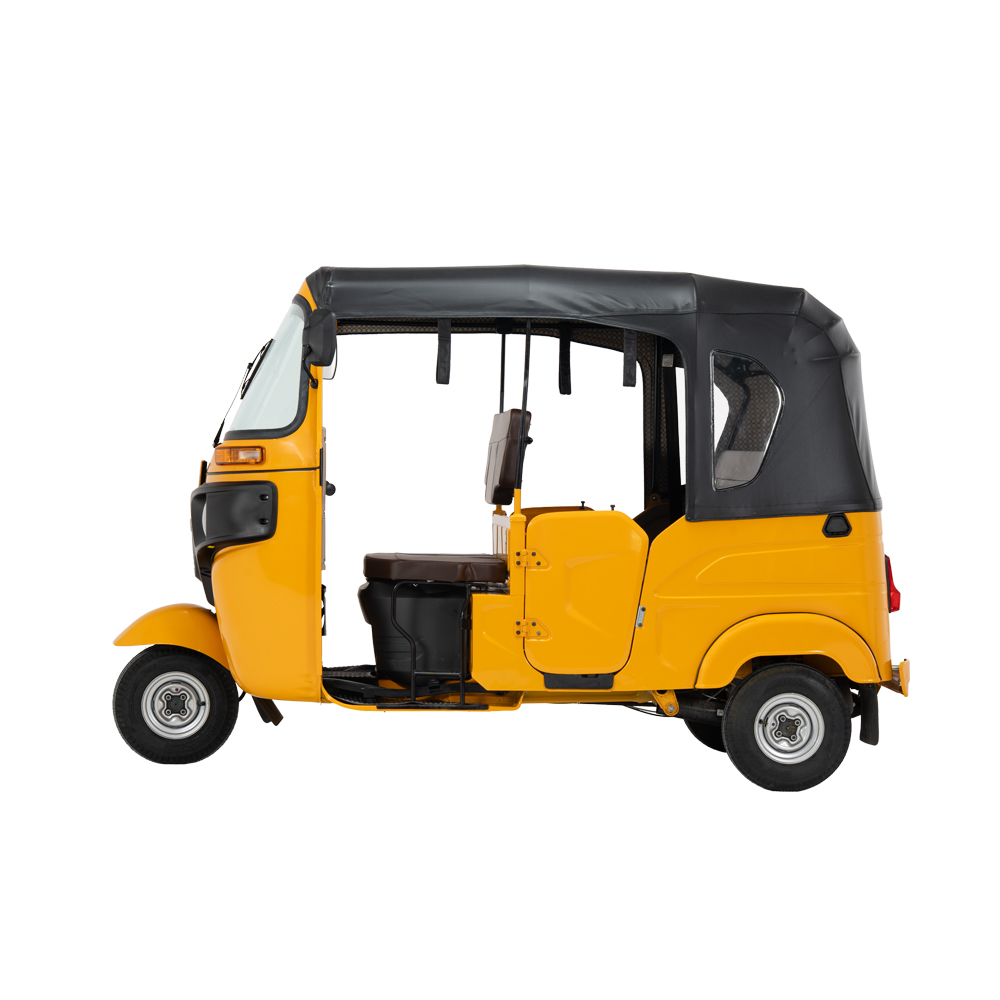

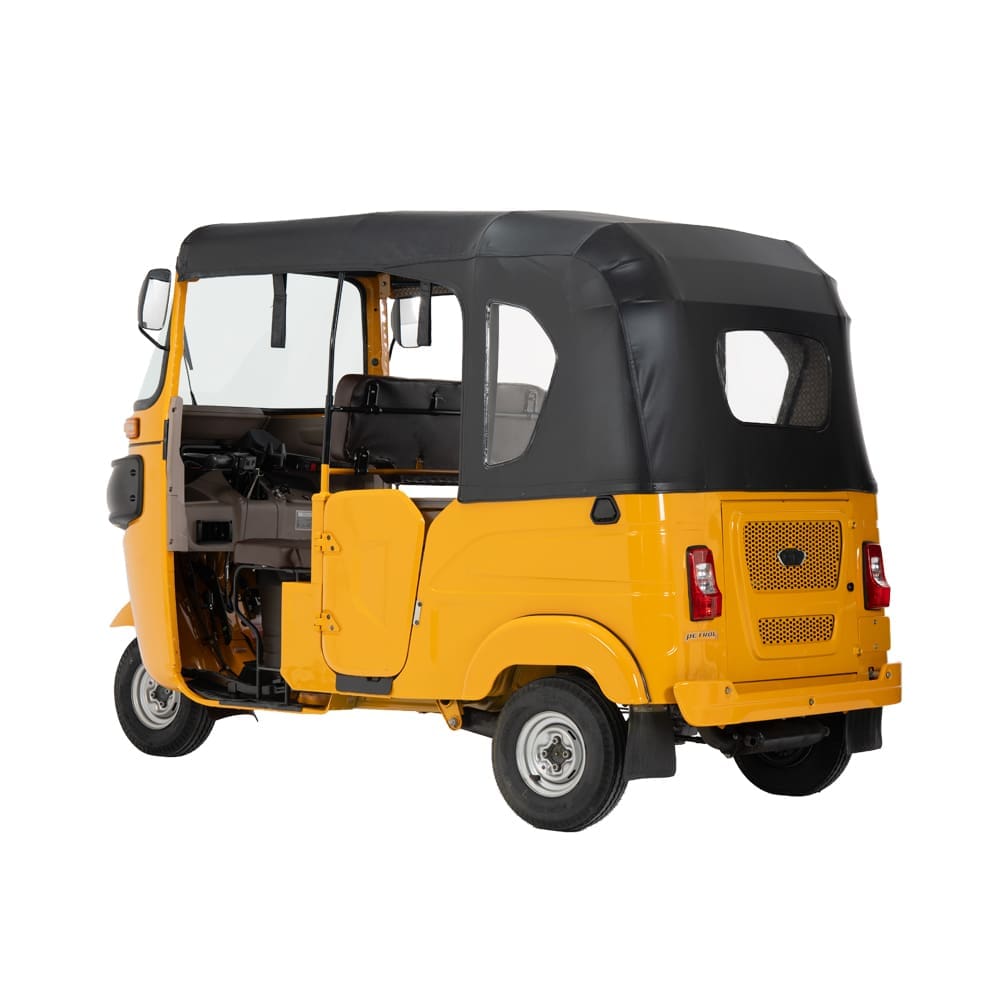

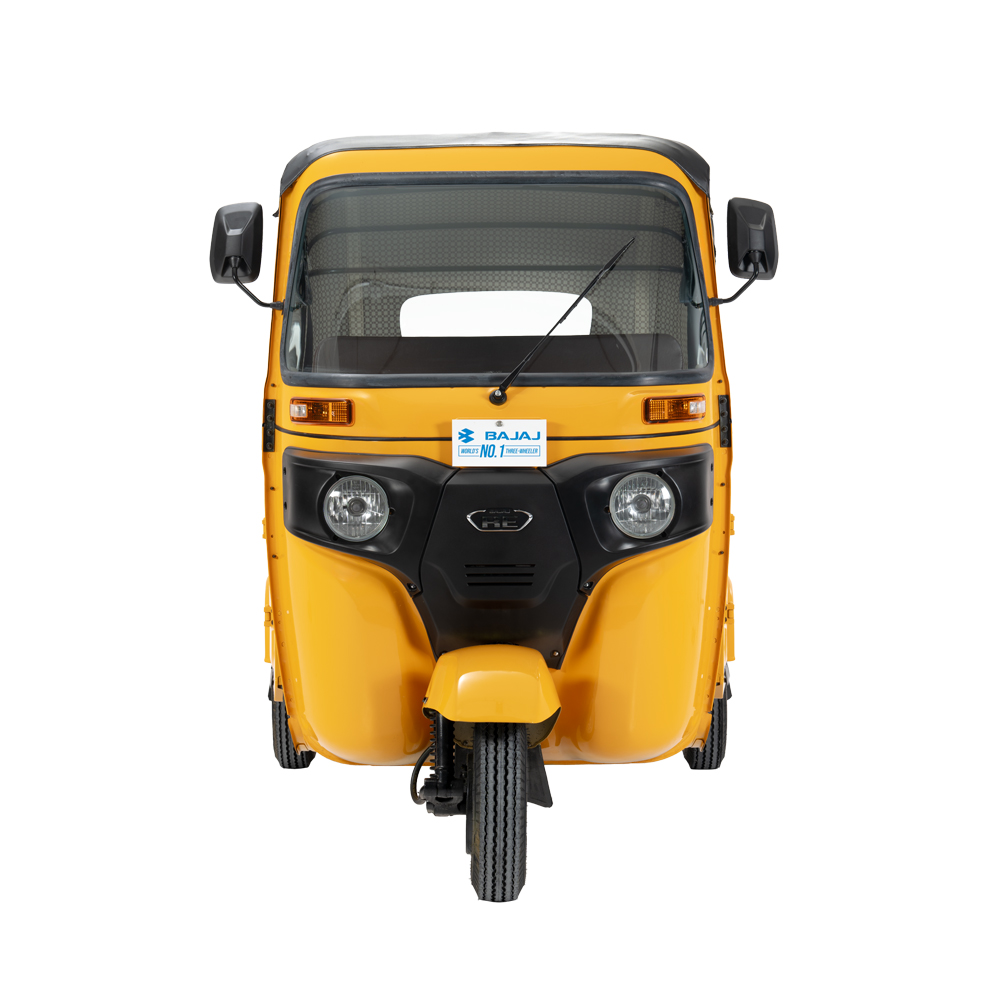

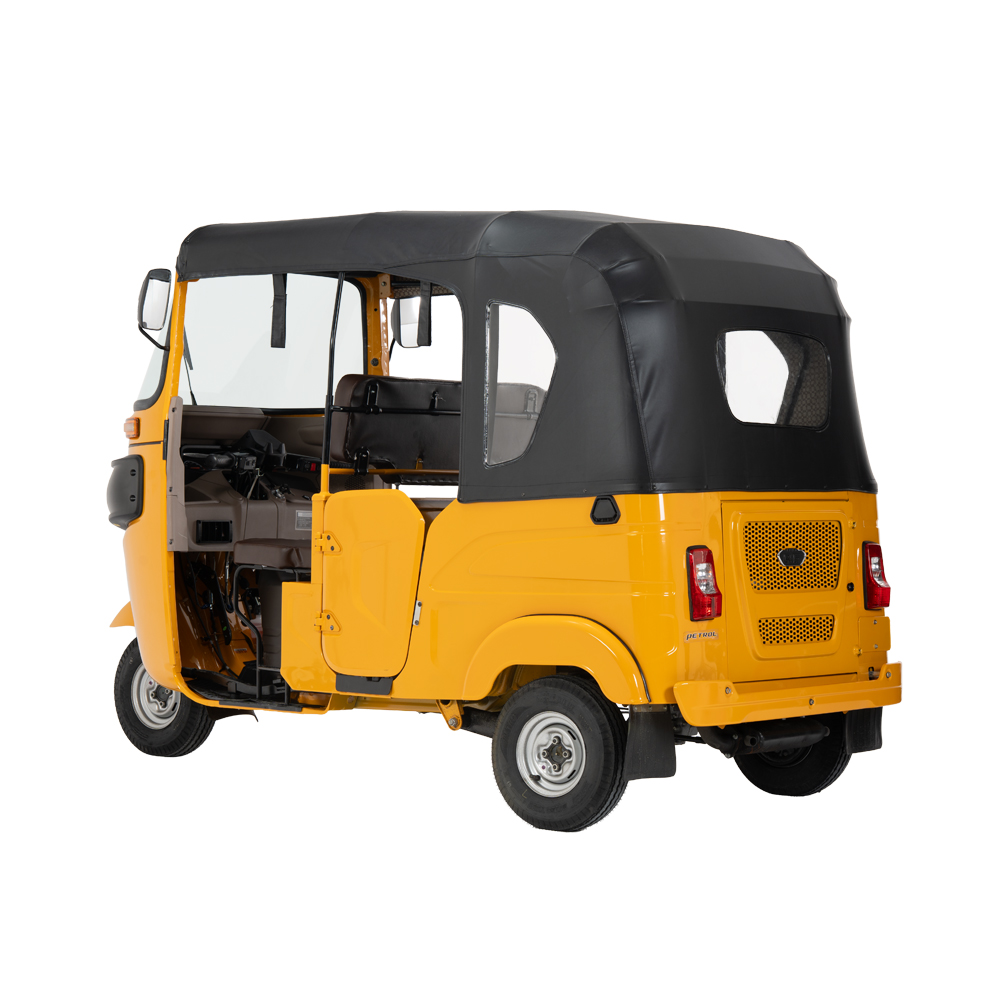

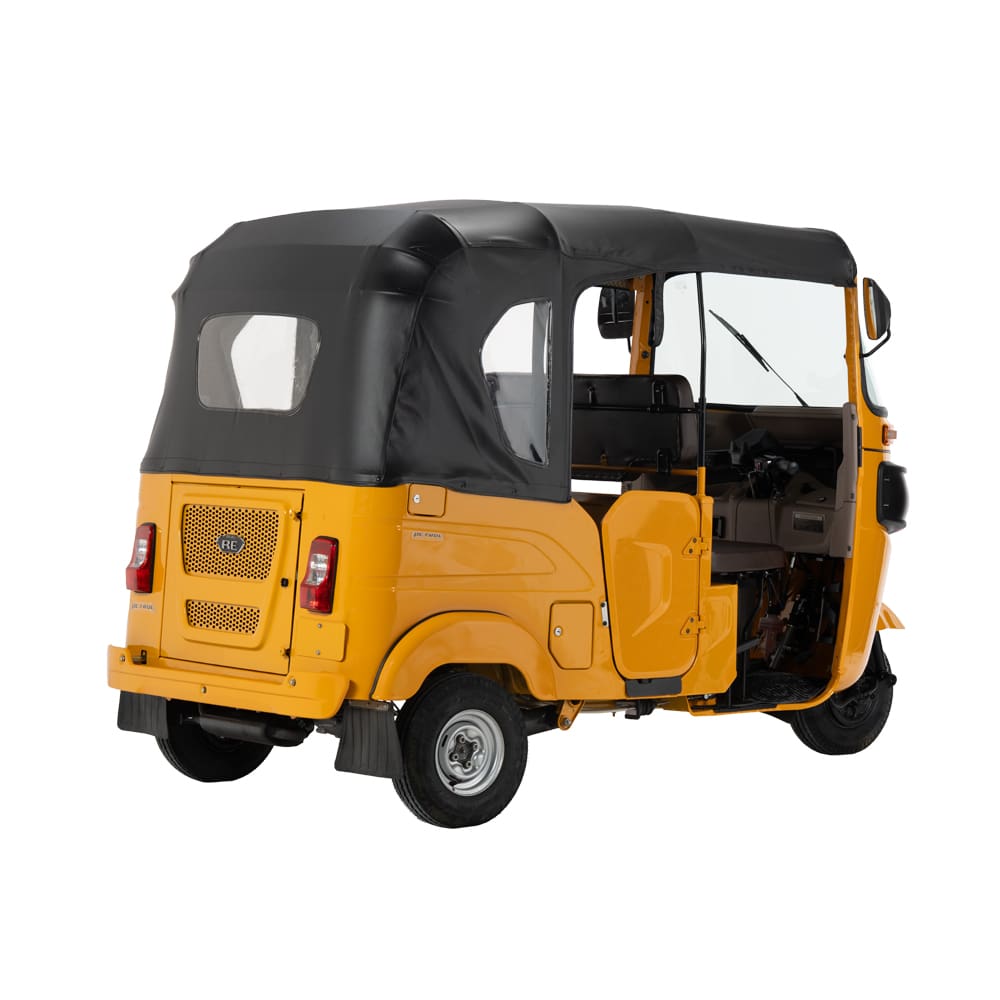

BAJAJ RE 4S FL236

Description

BAJAJ RE 4S FL236 C1AUO21S
Engine
• Engine type: 4 Stroke, Forced Air and oil Cooled, DTS-I FI Engine
• Bore x Stroke (mm): 67 x 67 mm
• Engine Displacement (cc): 236.22 cc
• Compression Ratio: 9.7 ± 1 : 1
• Idling Speed: 1400 ± 100
• Max. Net Power: 7.6 kW @ 4500 +/- 250 rpm
• Max. Net Torque: 19.2 Nm @ 3250 +/- 250 rpm
• Spark Plug: 1
• Spark Plug Gap (mm): 0.6 to 0.7
• Lubrication: Pressurized lubrication by separate oil pump
• Transmission: Manual: 4 forward & 1 reverse
• Min. Turning radius: 2880 mm

Framework
• Front Tire Pressure: 30 PSI (2.1 kg/cm²)
• Rear Tire Pressure: 34 PSI (2.4 kg/cm²)
• Front Tire Size: 4.00-8 6 PR Tubeless
• Rear Tire Size: 4.00-8 6 PR Tubeless
• Front / Rear Brake: RH FOOT OPERATED – HYDRAULIC-DRUM

Electrical
• System: 12V DC
• Head Lamp: 35/35 W
• Position Pilot Lamp: 5 W
• Stop Lamp/Tail Lamp: 21 W
• Turn Signal Lamp: 10 W
• Neutral Indicator Lamp: Available (2W)
• High Beam Indicator Lamp: Available (2W)
• Turn Pilot Indicator Lamp: Available (2W)
• Speedometer Lamp: Available (2W)
• Fuel Meter Lamp: Available (2W)
• Horn: 12V DC
• Battery: 12V, 32 Ah

Dimension
• Length: 2635 mm
• Width: 1300 mm
• Height: 1700 mm
• Wheel base: 2000 mm
• Ground clearance: 170 mm
• Vehicle Kerb Weight:362 kg
• Gross Vehicle Weight: 672 kg
• Fuel Tank Capacity: 8L

Note: Available in Visayas and Mindanao areas.
