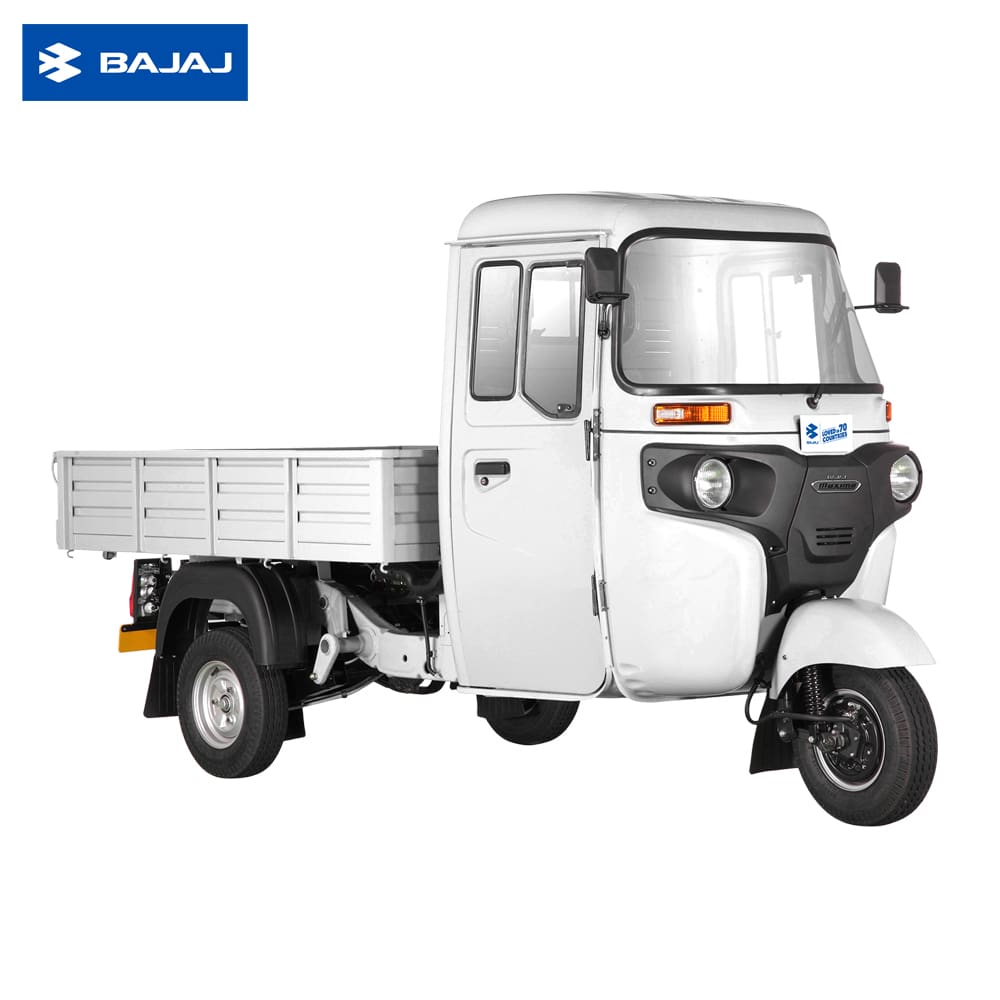

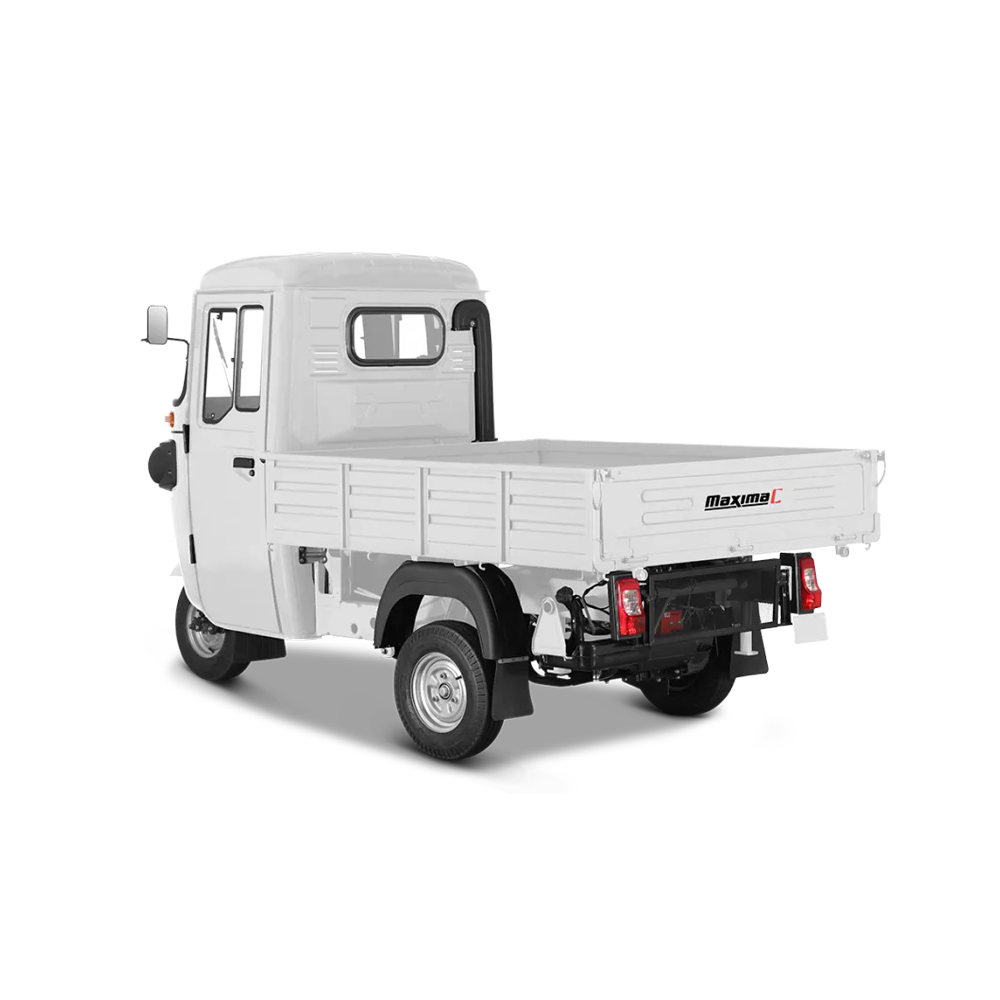

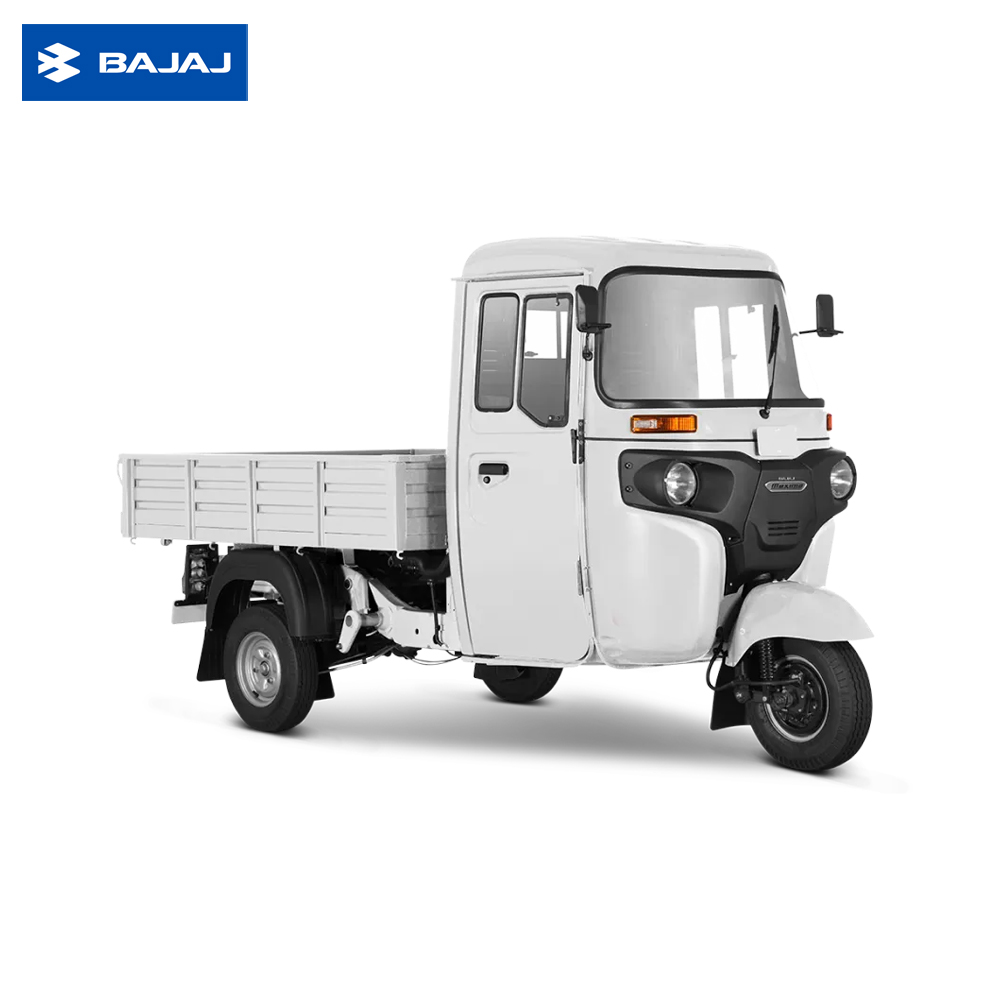

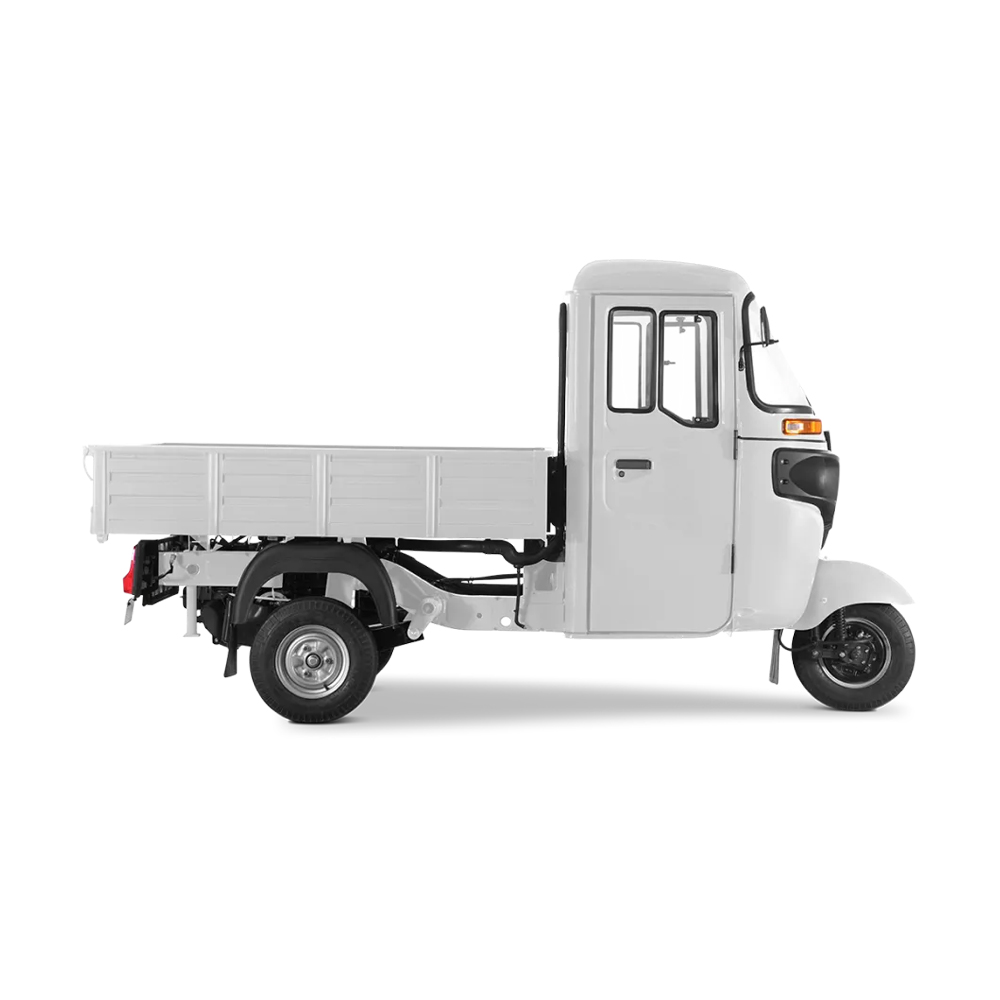

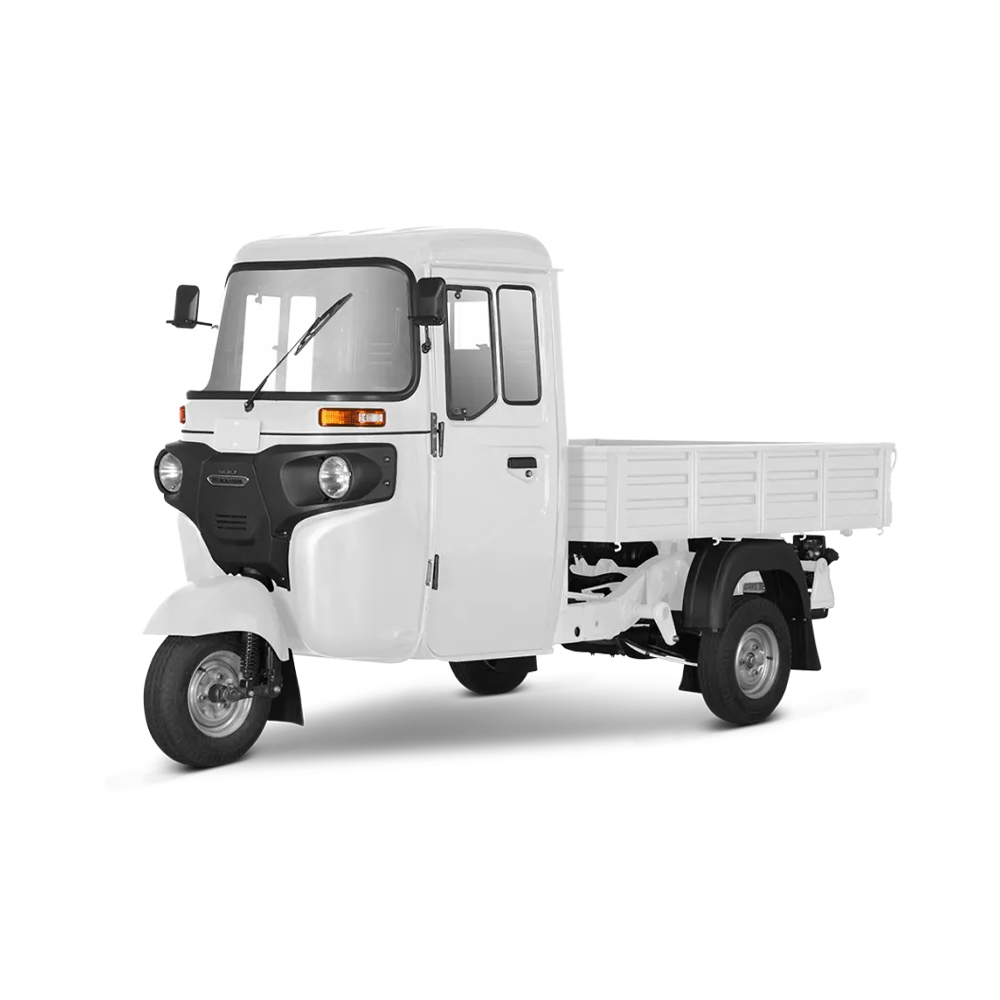

Bajaj Maxima Cargo

Description

Bajaj Maxima Cargo

Engine
• Type: Four stroke, air & oil cooled
• Displacement: 236 cc
• Clutch: Wet, multiplate
• Max Power: 10.5 Ps @4500 rpm
• Max Speed: 58 KM/HR
• Max Torque: 19 Nm @ 3500 rpm

Brakes & Tyres
• Front Brakes Type
– Hydraulically actuated brake shoes
– Leading & Trailing Type
• Rear Brakes Type
– Hydraulic expanding friction shoe
– Leading Trailing Type
• Front Tyres
– 4.50
– 10, 8 Ply
• Rear Tyres
– 4.50
– 10, 8 Ply

Electricals
• Battery: 12V 32 Ah
• Head Lamps: 12V 35/35W, Twin Headlamps
• System: 12 V DC
• Tail Lamps: 12V 21/5W or 18/5W

Vehicle
• Frame Type: Monocoque chassis with central beam and cross member welded
• Fuel Tank: 12 L
• Ground Clearance: 190 mm
• Kerb Weight: 475 Kgs
• Length x Width x Height: 3230 mm x 1493 mm x 1818 mm
• Suspension Front: Fork with Leading arms and Anti-dive link, twin hydraulic shock absorbers and helical springs
• Suspension Rear: Independently sprung rear wheels by trailing arms with helical springs and hydraulic shock absorbers
• Wheel Base: 2125 mm

Note: Available in Visayas and Mindanao areas.
