Description

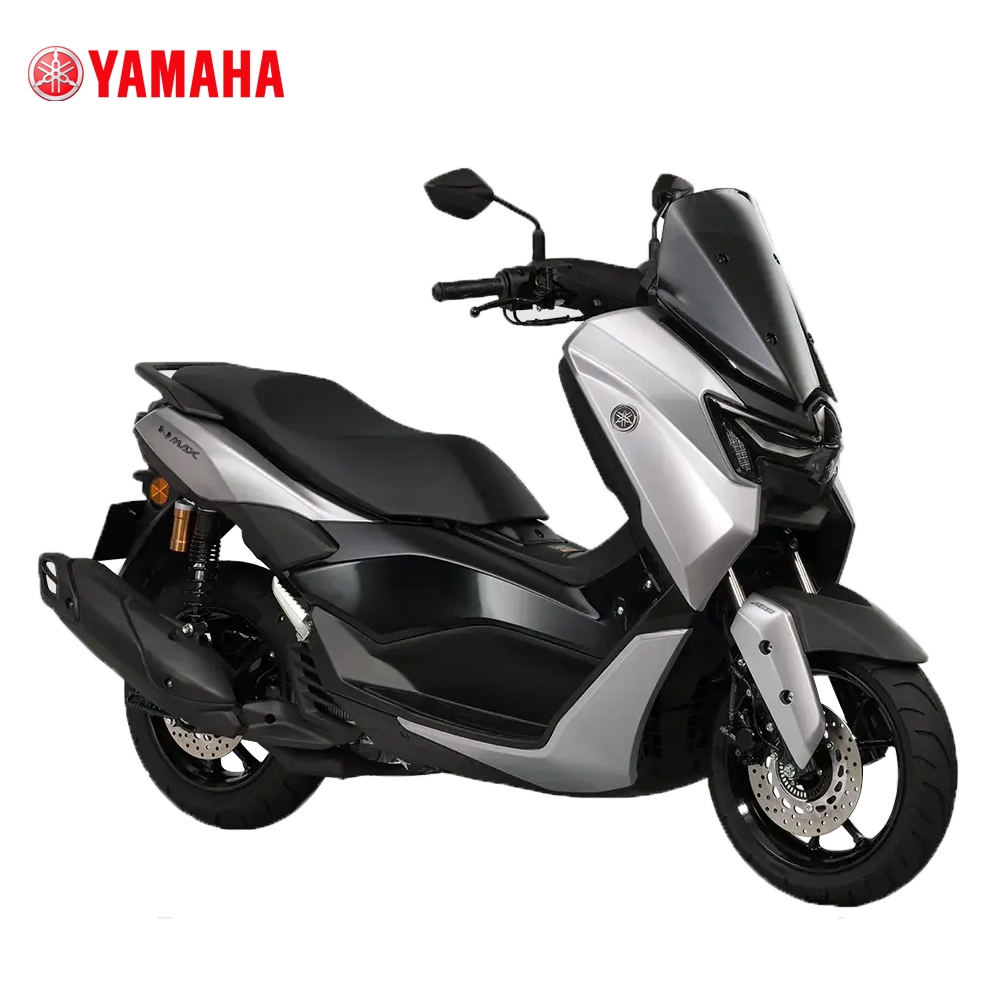

Yamaha Motorcycle Nmax
ENGINE
• Engine: Liquid cooled, 4-stroke, SOHC, 4-valve
• Cylinder: Single Cylinder
• Displacement: 155cm³
• Bore & Stroke: 58.0 x 58.7mm
• Compression Ratio: 11.6:1
• Maximum Horse Power: 11.3kW(15.4PS)/8000r/min
• Maximum Torque: 14.2N•m(1.4kgf•m)/6500r/min
• Starting System: Electric starter
• Lubrication System: Wet Sump
• Engine Oil Capacity: NMAX – 1L
• Fuel Supply System: Fuel Injection
• Clutch Type: Dry, centrifugal, shoe
• Transmission Type: V-belt automatic
FRAMEWORK
• Frame Type: Backbone
• Front Suspension: Telescopic Fork
• Rear Suspension: Unit Swing
• Front Tire: 110/70-13 M/C 48P Tubeless
• Rear Tire: 130/70-13 M/C 63P Tubeless
• Front Brake: Hydraulic single disc brake (230mm)
• Rear Brake: Hydraulic single disc brake (230mm)
ELECTRICAL
• Ignition System: TCI (Transistor Controlled Ignition)
• Battery: NMAX – YTZ6V, 12V, 5.0Ah (10HR)
• Headlight: LED
• Taillight: LED
DIMENSION
• Overall Length x Width x Height: 1935mm x 740mm x 1200mm
• Seat Height: 770mm
• Wheelbase: 1340mm
• Minimum Ground Clearance: 125mm
• Wet Weight (with oil and a full fuel tank): NMAX – 131kg
• Fuel Tank Capacity: 7.1L
OTHERS
• Meter Panel: Digital
• Smart Key: Equipped
• Stop & Start System: Equipped
• ABS (Anti-lock Brake System): Equipped
• Traction Control System: Equipped
• Electric Power Socket: Equipped
