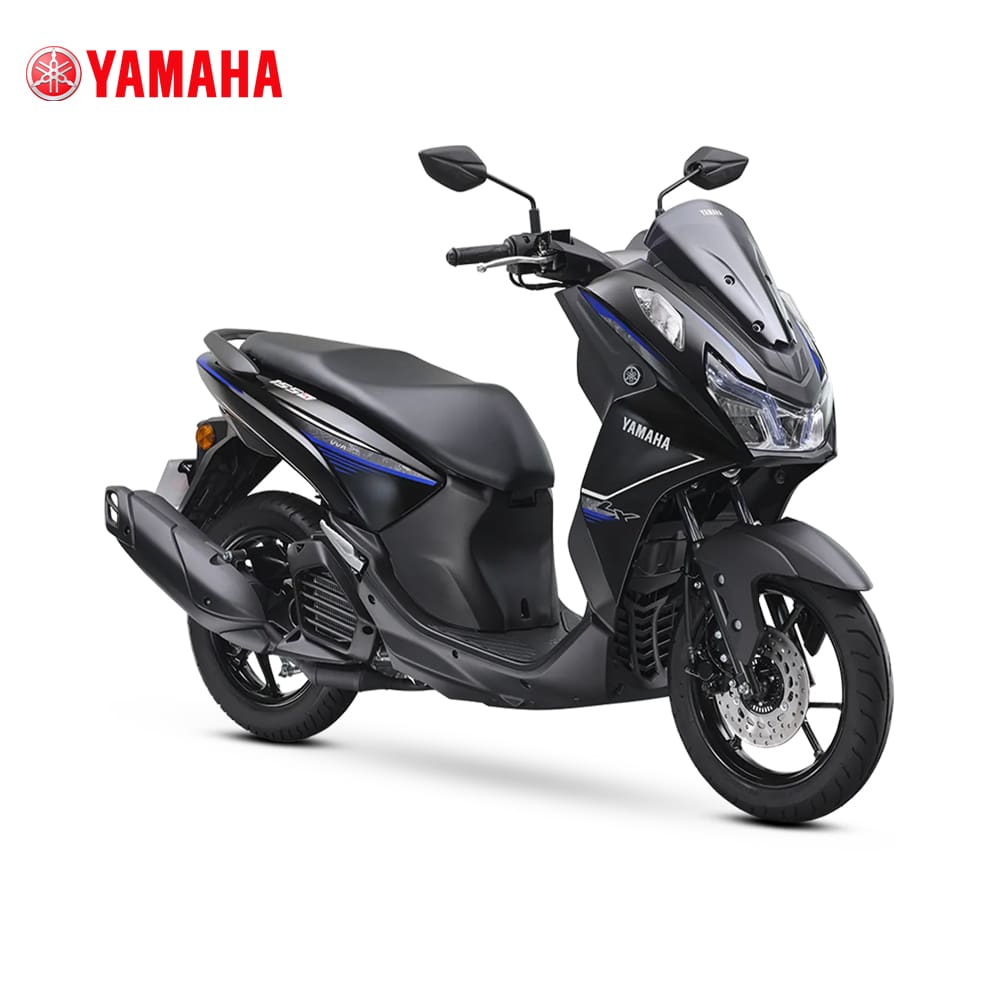

Yamaha Motorcycle Lexi

Yamaha Motorcycle Lexi
Engine
• ENGINE TYPE: Liquid cooled, 4-stroke, SOHC, 4-valve
• CYLINDER ARRANGEMENT: Single cylinder
• DISPLACEMENT: 155cm³
• BORE X STROKE: 58.0 x 58.7mm
• COMPRESSION RATIO: 11.6:1
• MAXIMUM HORSEPOWER: 11.3kW(15.4PS)/8000r/min
• MAXIMUM TORQUE: 14.2N·m(1.4kgf·m)/6500r/min
• STARTING SYSTEM TYPE: Electric starter
• LUBRICATION SYSTEM: Wet sump
• ENGINE OIL CAPACITY: 1L
• CLUTCH TYPE: Dry, centrifugal, shoe
• TRANSMISSION TYPE: V-belt automatic
• FUEL TANK CAPACITY: 4.2L
• FUEL SUPPLY: Fuel injection

Chassis
• FRAME TYPE: Underbone
• FRONT SUSPENSION TYPE: Telescopic fork
• REAR SUSPENSION TYPE: Unit swing
• FRONT TIRE SIZE: 90/90-14M/C 46P tubeless
• REAR TIRE SIZE: 100/90-14M/C 57P tubeless
• FRONT BRAKE TYPE: Hydraulic single disc brake
• REAR BRAKE TYPE: Mechanical leading trailing drum brake

Electrical
• IGNITION SYSTEM: TCI (Transistor Controlled Ignition)
• BATTERY TYPE: YTZ6V

Dimension
• OVERALL LENGTH: 1970mm
• OVERALL WIDTH: 720mm
• OVERALL HEIGHT: 1135mm
• SEAT HEIGHT: 770mm
• WHEELBASE: 1350mm
• MINIMUM GROUND CLEARANCE: 135mm
• WET WEIGHT (WITH OIL AND A FULL FUEL TANK): 116kg

Others
• METER PANEL: Digital

Note: Available in Visayas, Mindanao and Palawan area.
