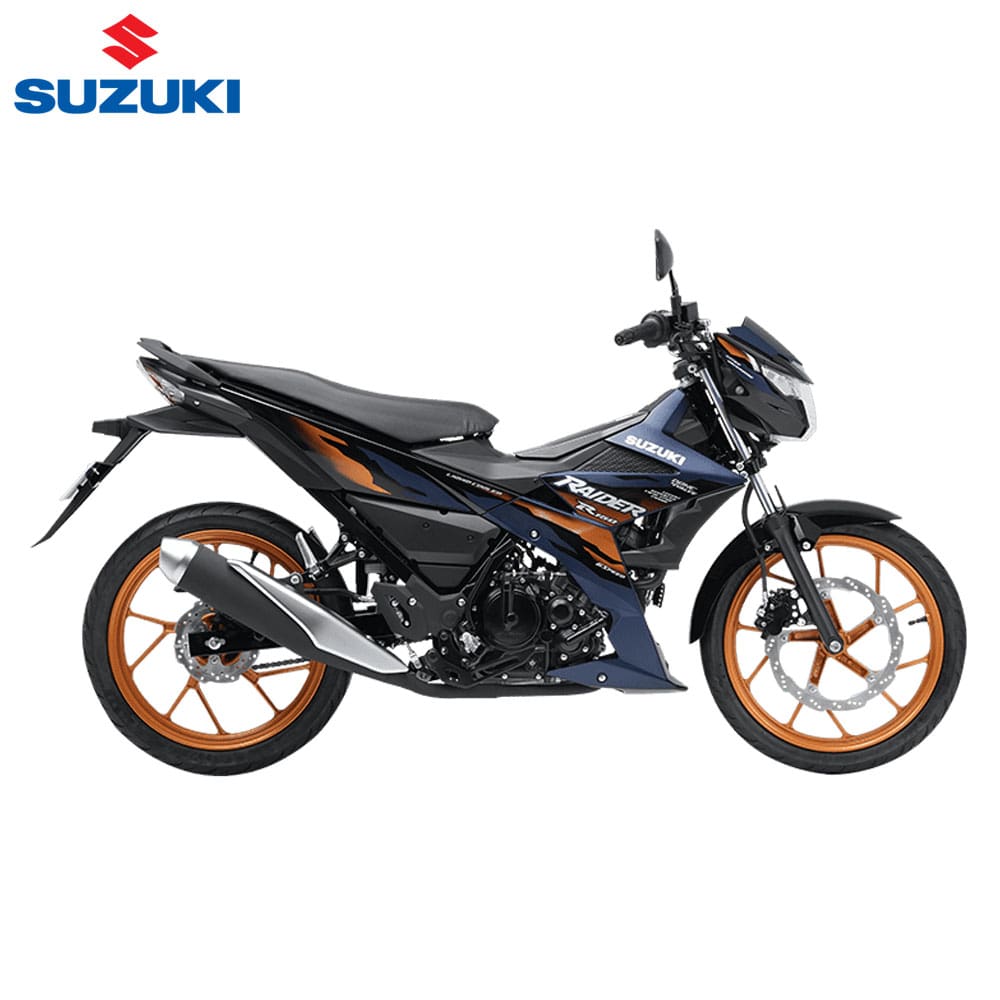

Suzuki Motorcycle Raider R150 Fi

Description

Suzuki Motorcycle Raider R150 Fi
Engine
• Engine Type: 4-Stroke, 1-Cylinder, DOHC, 4 –Valve
• Bore X Stroke: 62.0 MM X 48.8 MM
• MAX POWER: 13.6 KW / 10,000 RPM
• Max Torque: 13.8 NM / 8,500 RPM
• Engine Displacement: 147.3 CC
• Fuel System: FUEL INJECTED
• Cooling System: LIQUID COOLED
• Starting: Electric & Kick
• Transmission Type: 6 speed multi plate
• Ignition System: Electronic Ignition (TRANSISTORIZED)
• Compression Ratio: 11.5:1
• Lubrication: WET SUMP
• Clutch Type Primary: wet multi plate type
• Fuel Consumption: 50 km/L based on WMTC

Chassis
• Suspension (Front): TELESCOPE, COIL SPRING, OIL DAMPED
• Suspension (Rear): SWING-ARM TYPE, coil spring, OIL DAMPED
• Tire Size (Front): 70/90 – 17 M/C 38P
• Tire Size (Rear): 80/90 – 17 M/C 50P
• Brakes (Front): DISC
• Brakes (Rear): DISC

Dimensions
• Overall Length: 1,960 MM
• Overall Width: 675 MM
• Overall Height: 980 MM
• Wheelbase: 1,280 MM
• Ground / Road Clearance: 150 MM
• Curb Mass: 109 kg
• Seat Height: 765 MM
• Fuel Tank Capacity: 4 L

Note: Available in Visayas, Mindanao and Palawan area.
