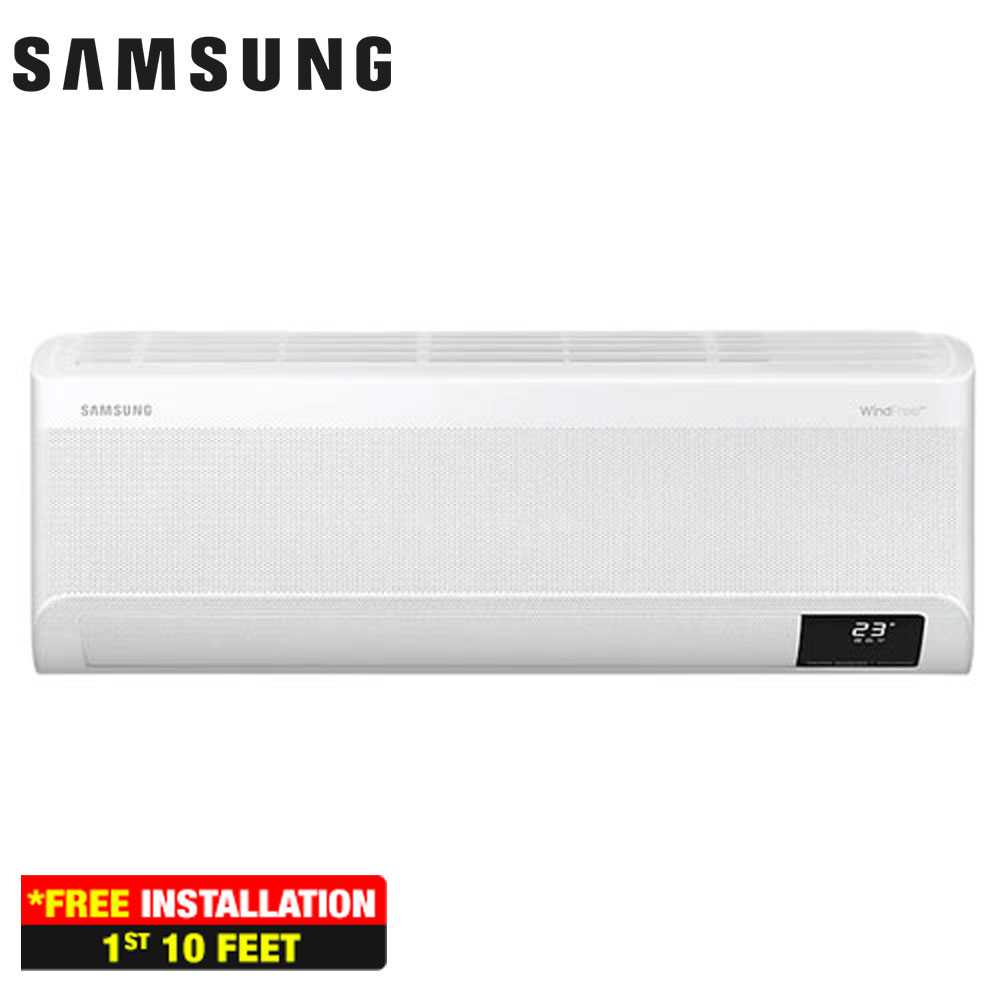

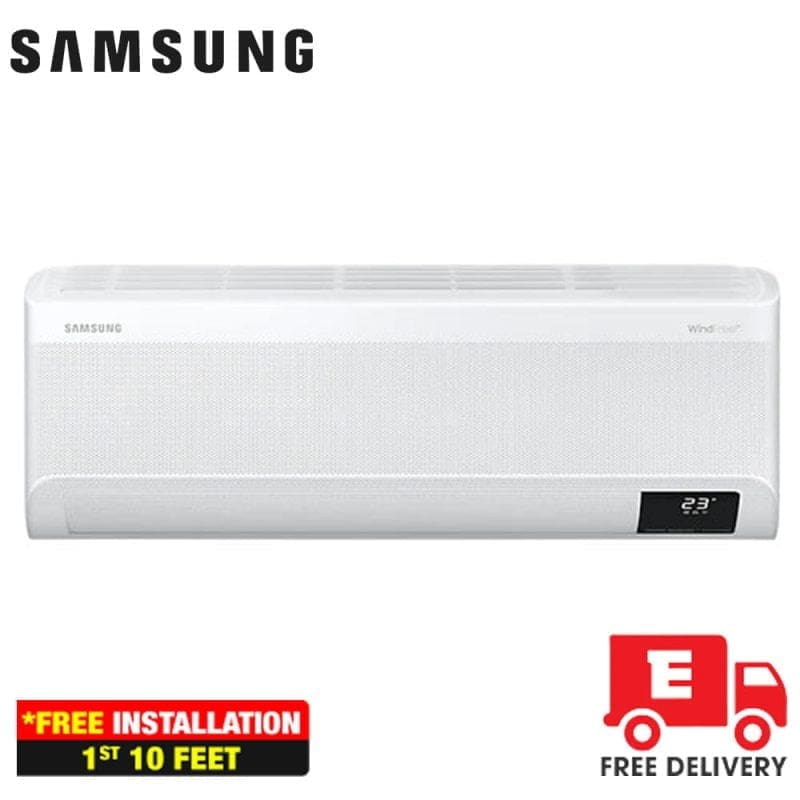

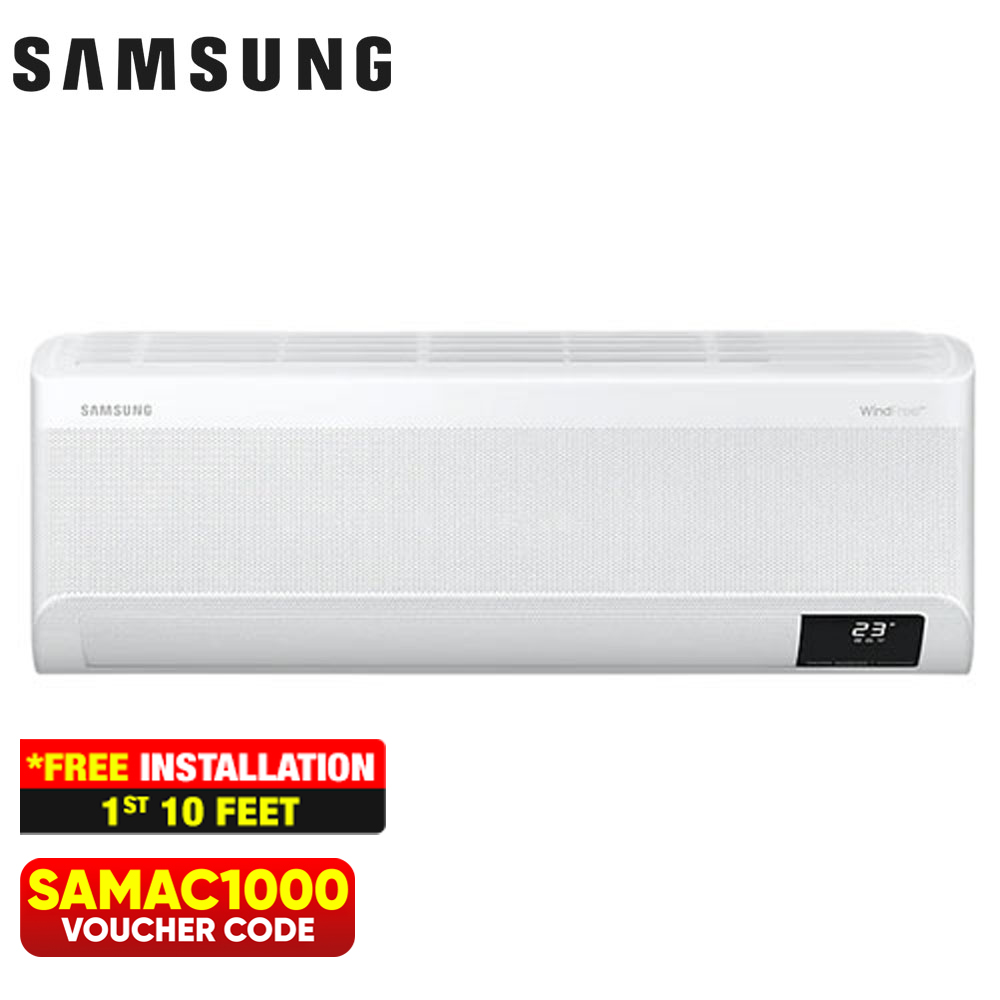

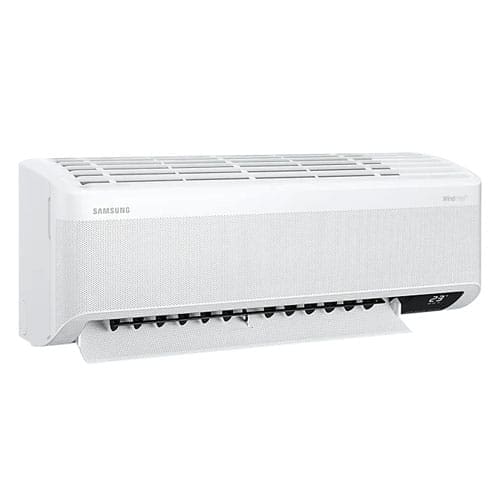

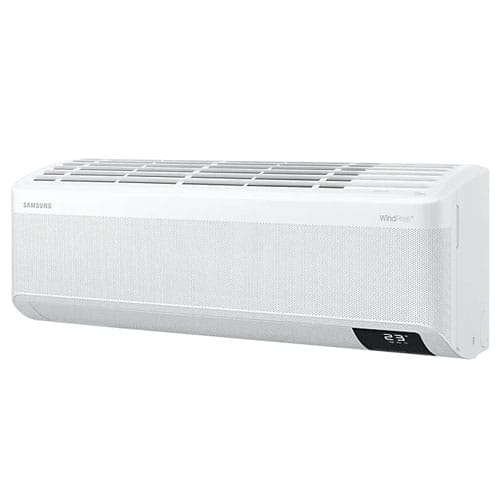

Samsung 1HP Wind Free Inverter Split Type Aircon AR10BYHAMWKNTC

Description

Capacity
• Capacity (Cooling, kJ/h): 10600 kJ/hW
• Capacity (Cooling, Min – Max, kJ/h): 4750 – 12660 kJ/hW

Noise Level
• Noise Level (Indoor, High/Low, dBA): 37/22 dBA
• Noise Level (Outdoor, High/Low, dBA): 49 dBA

Electrical Data
• Power Source(Φ/V/Hz): 1 / 220-240 / 60
• Power Consumption(Cooling, W): 870 W
• Operating Current(Cooling, A: 6.5 A

Physical Specification
• Net Dimension (Indoor, WxHxD, mm): 820*299*215 mm
• Net Dimension (Outdoor, WxHxD, mm): 660*475*242 mm
• Net Weight (Indoor, kg): 9.2 kg
• Net Weight (Outdoor, kg): 19.1 kg

Technical Information
• Piping Length (Max, m): 15 m
• Piping Height (Max, m): 7 m
• SVC Valve (Liquid (ODxL)): 6.35
• SVC Valve (Gas (ODxL)): 9.52
• Moisture Removal (l/hr): 1.0 l/hr
• Air Circulation (Cooling, ㎥/min): 10.7 ㎥/min
• Refrigerant (Type): R32
• Refrigerant (Charging, tCO2e): 0.34 tCO2e
• Low Ambient (Cooling, ℃): 16~46 ℃
• Outdoor Unit (Compressor Type): BLDC
• DuraFin™: Protection
• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow
• WindFree Cooling: Yes
• Air Direction Control (Up/Down): Auto
• Air Direction Control (Left/Right): Auto
• Air Flow Control Step (Cool/Fan): 5/4

Air Purification
• PM 1.0 Filter: No
• Tri Care Filter: No
• Easy Filter Plus (Anti-Bacteria): Yes
• Auto Clean (Self Cleaning): Yes

Convenience
• SmartThings|: No
• AI Auto Cooling: No
• Motion Detect Sensor: No
• Freeze Wash: No
• Beep On/Off: Yes
• 24-Hour Timer: Yes
• Auto Restart: Yes

Operating Mode
• Auto Mode: Yes
• Fast Cool: Yes
• Good Sleep: Yes
• Eco Mode: Yes
• Dehumidification: Yes
• Fan Mode: Yes
• Quiet: Yes

Smart
• WiFi Embedded: No

App Connectivity
• SmartThings App Support: No

Note: Available in Visayas and Mindanao areas
