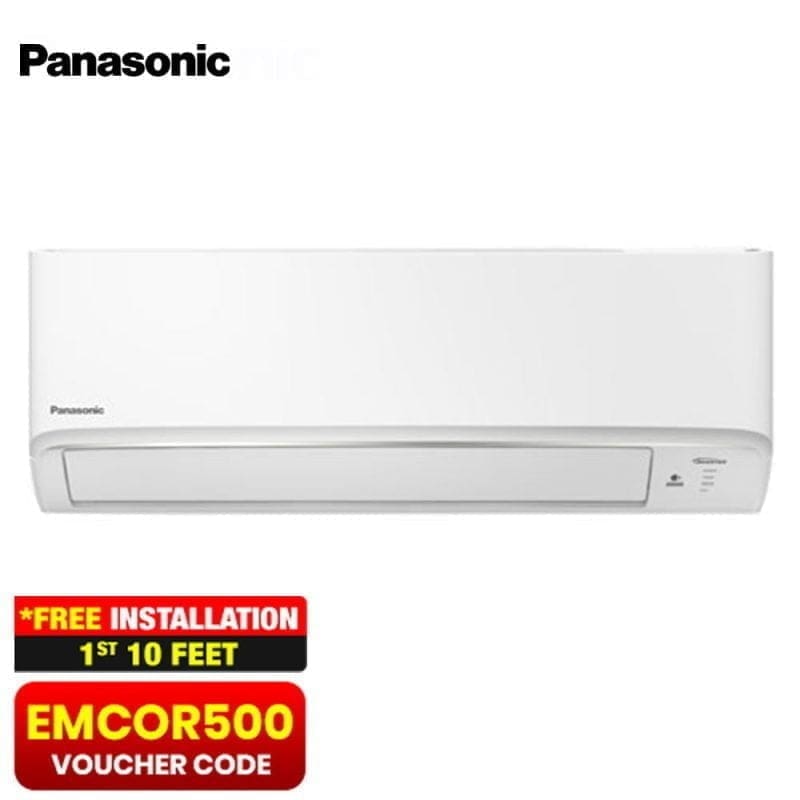

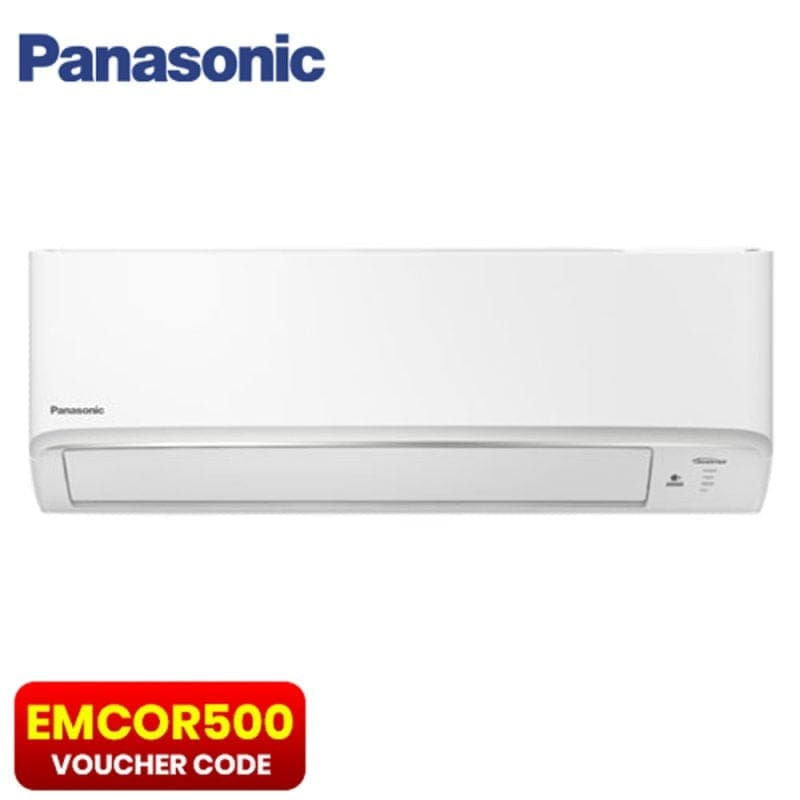

Panasonic 2HP Deluxe Inverter Split Type Aircon CS/CU-XPU18WKQ

Description

Panasonic Aircon CS/CU-XPU18WKQ
Cooling Capacity
• kW: 5.00 (1.10-5.40)
• Btu/h: 18,000 (3,960-19,440)

Electrical Data
• Voltage (V): 230
• Current (A): 7.0
• Power Input (min-max) (W): 1,550 (290-1,800)

EER
• (min-max) Btu/hW: 11.61 (13.66-10.80)

Moisture Removal
• L/h: 2.8
• Pt/h: 5.9

Air Circulation
• Indoor m³/min (ft³/min): 12.6 (445)
• Outdoor m³/min (ft³/min): 39.3 (1,390)

Noise Level
• Indoor (H / L / Q-Lo) [dB(A)]: 44/34/28
• Outdoor (H) [dB(A)]:51

Dimensions Indoor (Outdoor)
• Height (mm): 290 (619)
• inch: 11-7/16 (24-3/8)
• Width (mm): 779 (824)
• inch: 30-11/16 (32-15/32)
• Depth (mm): 209 (299)
• inch: 8-1/4 (11-25/32)

Net Weight
• Indoor kg (lb): 9 (20)
• Outdoor kg (lb): 29 (64)

Refrigerant Pipe Diameter
• Liquid Side (mm): ø 6.35
• inch: 1/4
• Gas Side (mm): ø 12.70
• inch: 1/2

Pipe Extension
• Chargeless Pipe Length (m): 10.0
• Maximum Pipe Length (m): 30
• Maximum Elevation Length (m): 20
• Additional Refrigerant Gas* (g/m): 15

Power Supply
• Outdoor

Note: Available in Visayas, Mindanao and Palawan areas.
