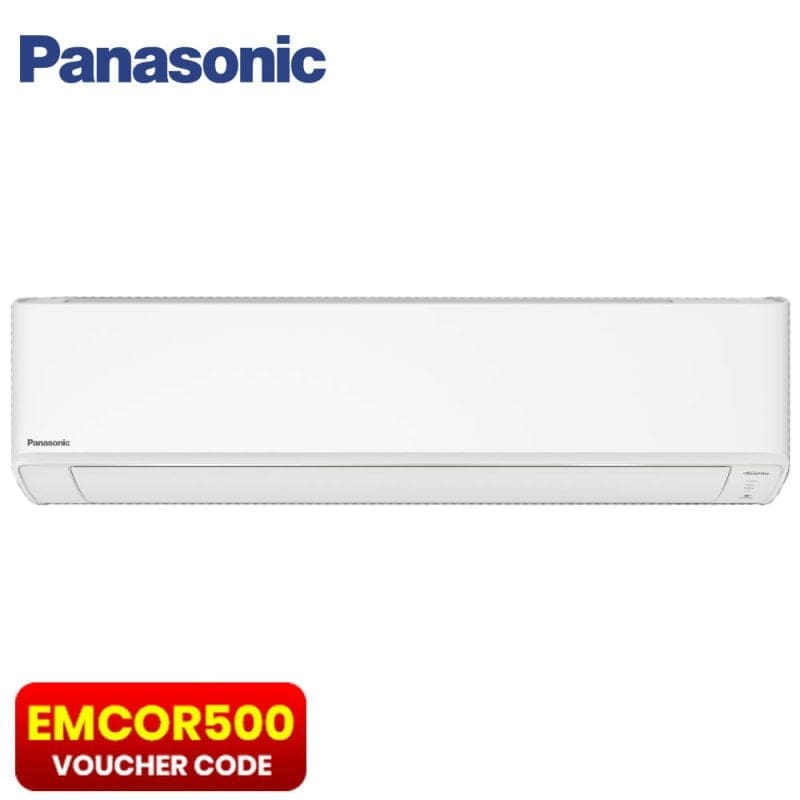

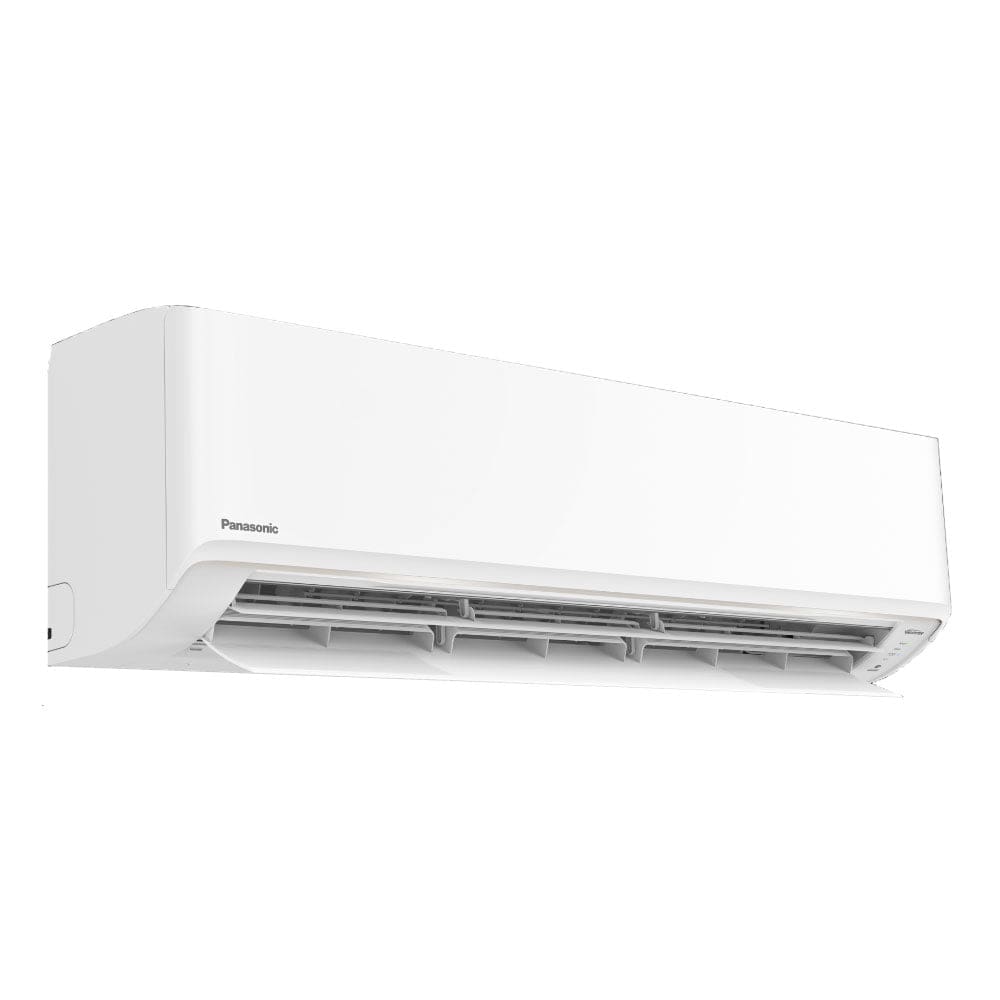

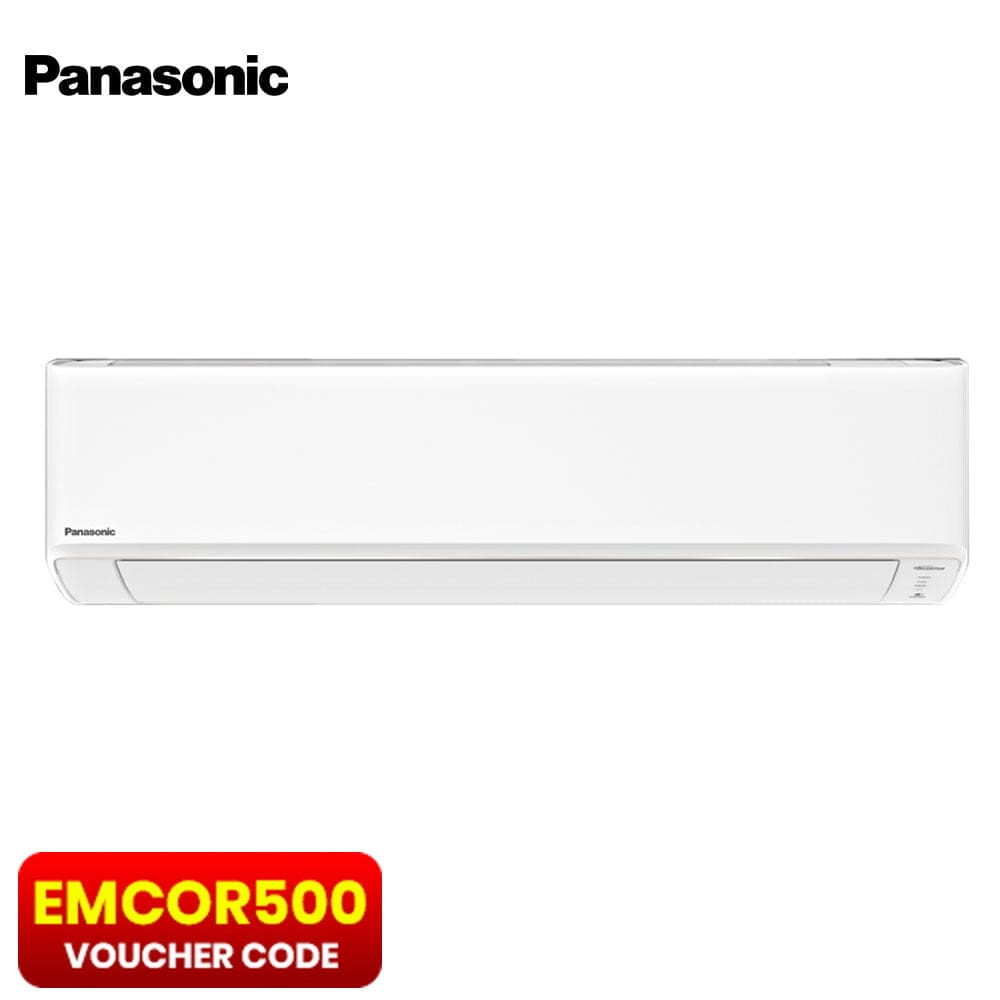

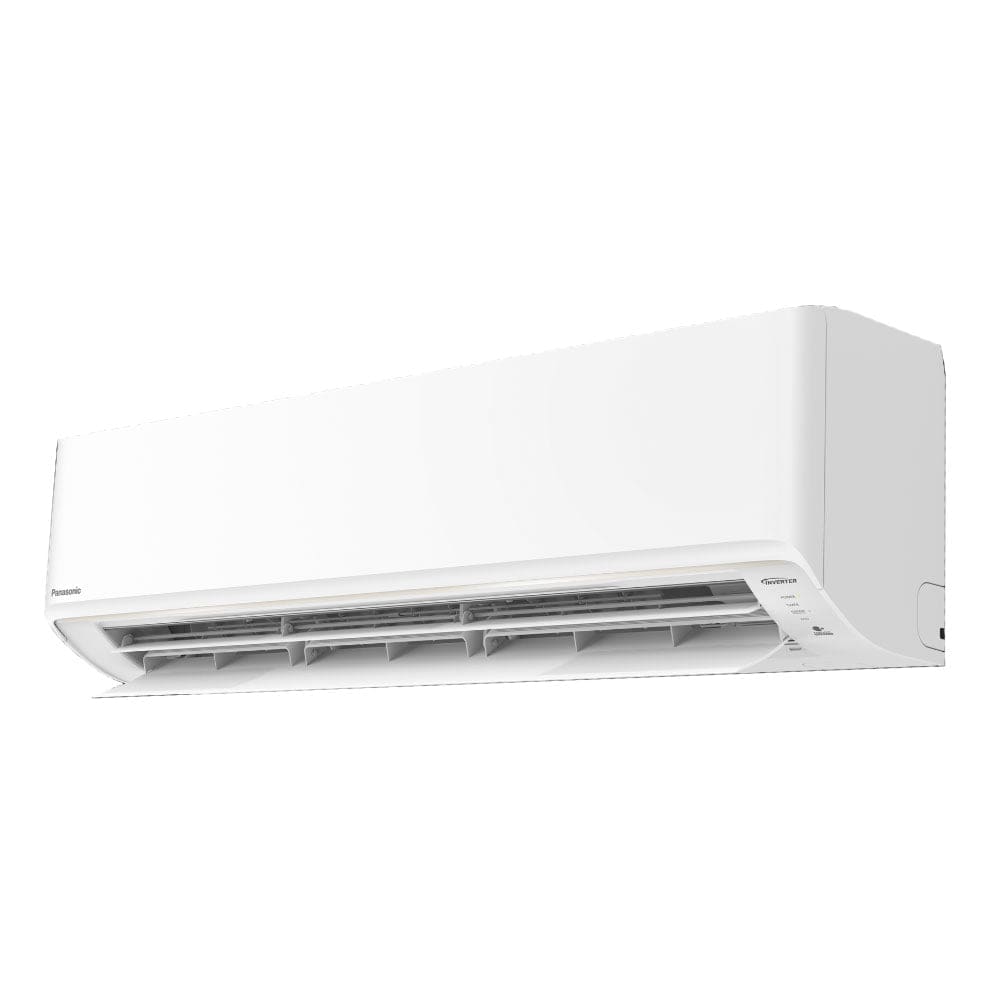

Panasonic 2.5HP Split Type Inverter Aircon CS/CU-XPU24XKQ

Description

Basic Specification
• Indoor (60 Hz): CS-XPU24XKQ
• Outdoor: CU-XPU24XKQ
• Cooling Capacity
– 6.10 (1.12-7.18) kW
– 21,960 (4,030-25,850) kJ/h
• EER (min-max): 13.31 (16.12-12.61) kJ/hW
• Electrical Data
• Voltage: 230 V
• Current: 7.4 A
• Power Input (min-max): 1,650 (250-2,050) W
• Moisture Removal
– 3.4 L/h
– 7.2 Pt/h
• Noise Level
– Indoor (H / L / Q-Lo): 45/36/29 dB(A)
– Outdoor (H): 51 dB(A)
• Dimensions (Indoor)
– Height: 295 mm (11-5/8 inch)
– Width: 1,040 mm (40-31/32 inch)
– Depth: 244 mm (9-5/8 inch)
• Dimensions (Outdoor)
– Height: 619 mm (24-3/8 inch)
– Width: 824 mm (32-15/32 inch)
– Depth: 299 mm (11-25/32 inch)
• Net Weight
– Indoor: 12 kg (26 lb)
– Outdoor: 31 kg (68 lb)
• Refrigerant Pipe Diameter
– Liquid Side: ø 6.35 mm (1/4 inch)
– Gas Side: ø 12.70 mm (1/2 inch)
• Pipe Extension
– Chargeless Pipe Length: 10 m
– Maximum Pipe Length: 30 m
– Maximum Elevation Length: 20 m
– Additional Refrigerant Gas*: 15 g/m
• Power Supply: Outdoor

Comfort Features
• ECO Mode With A.I.: Yes
• Inverter Control: Yes
• Powerful Mode: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Personal Airflow Creation: Yes

Cleaner Air Features
• nanoe™ X: Yes
• nanoe-G: Yes
• Odour Removing Function: Yes
• Removable Washable Panel: Yes

Convenience Features
• 24-Hour Dual ON & OFF Real Setting Timer: Yes
• LCD Wireless Remote Control: Yes
• Wireless LAN Remote Control (For Internet Connection): Yes (Optional)
• Wired Remote Control: Yes (Optional)

Reliability Features
• Random Auto Restart: Yes (32 Restart Patterns)
• Blue Fin Condenser: Yes
• Long Piping (max.): 30 m
• Top Panel Maintenance Access: Yes
• Self-Diagnostic Function: Yes
