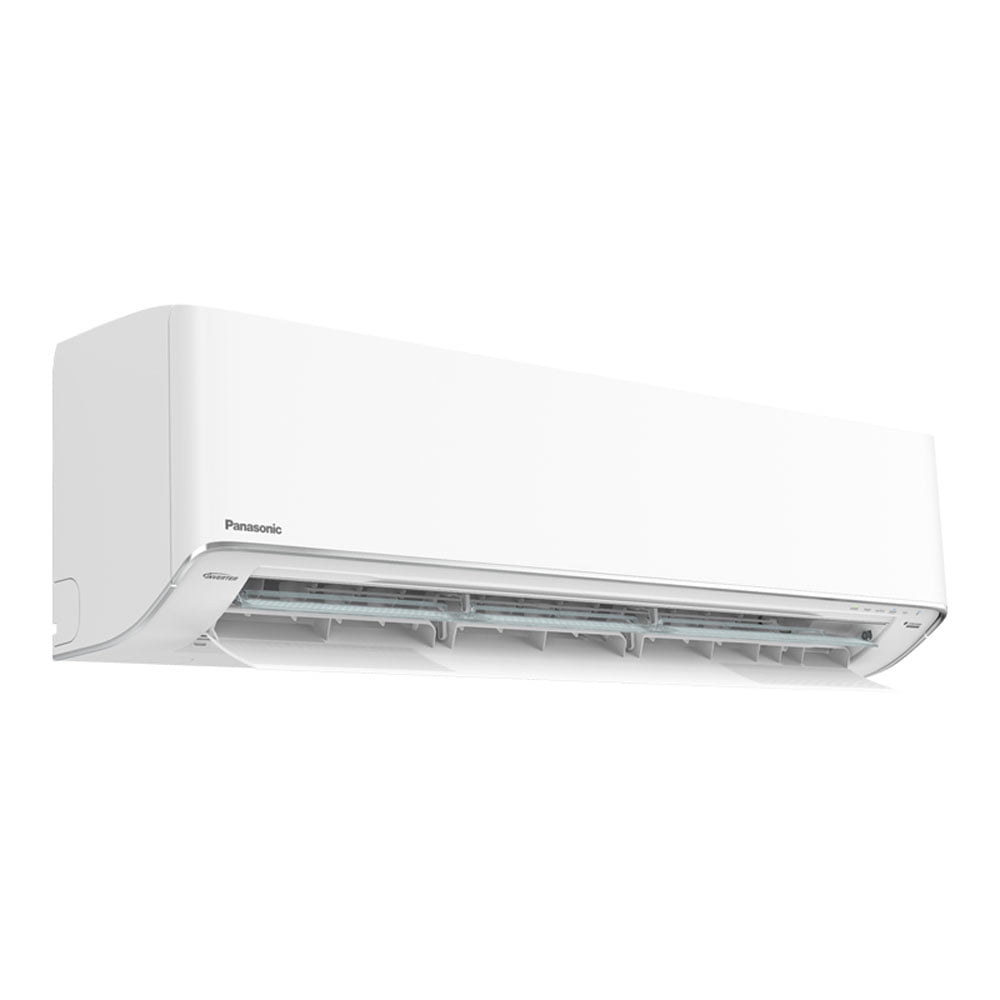

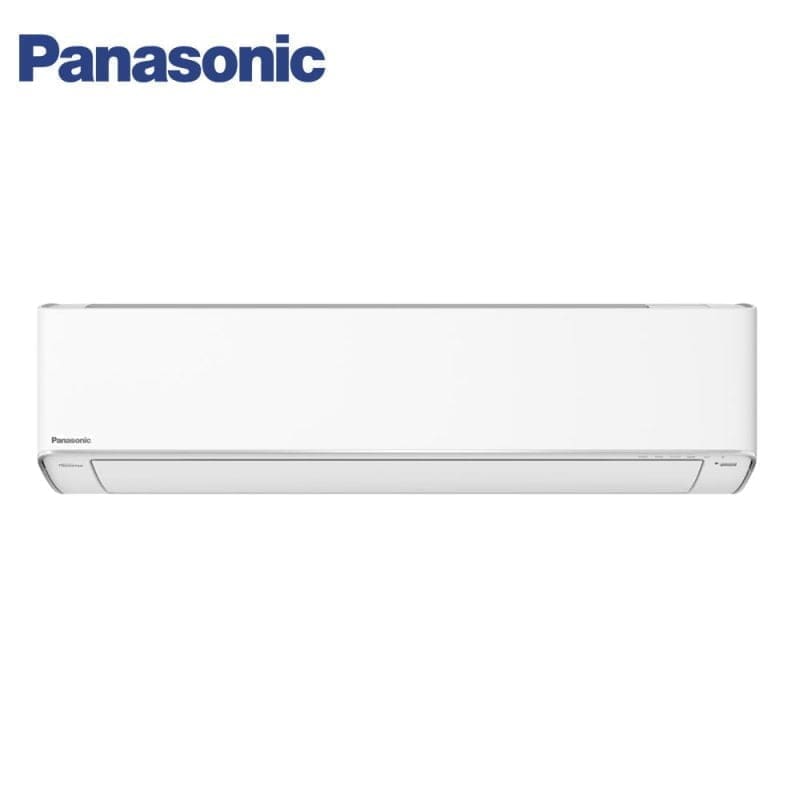

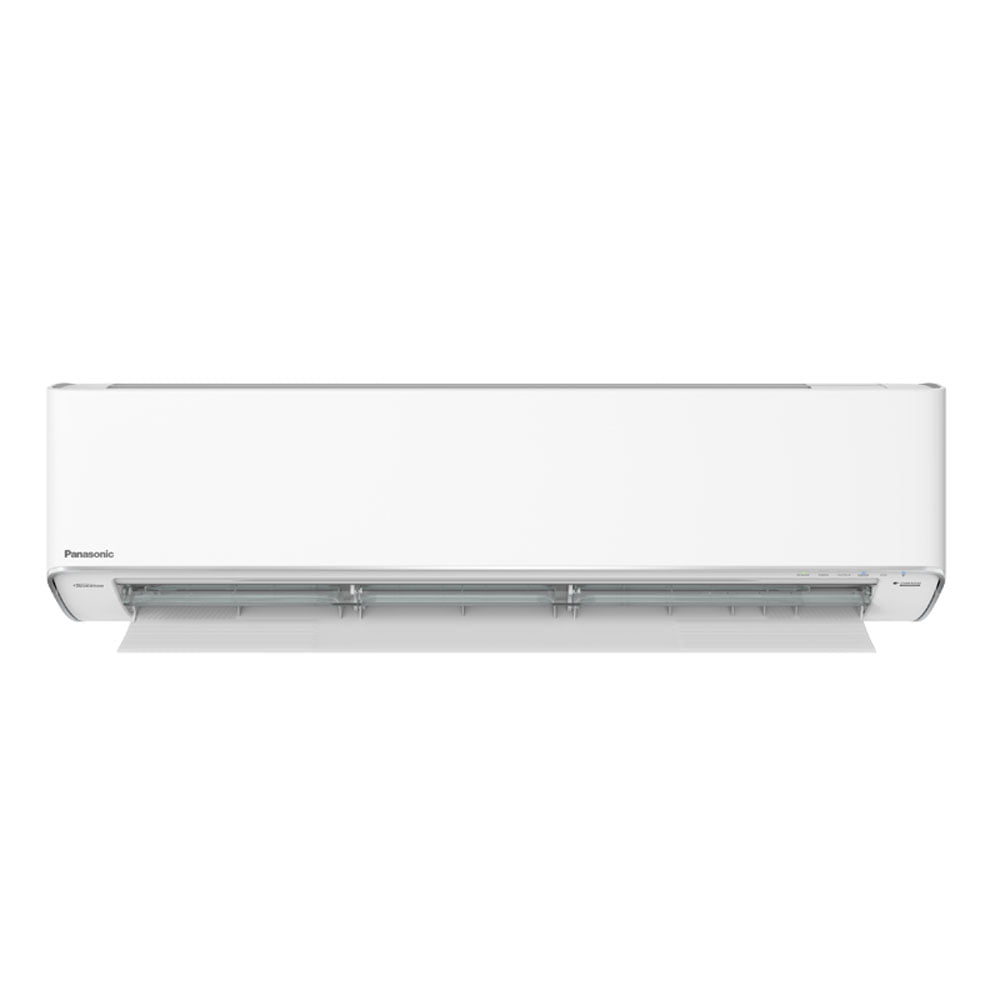

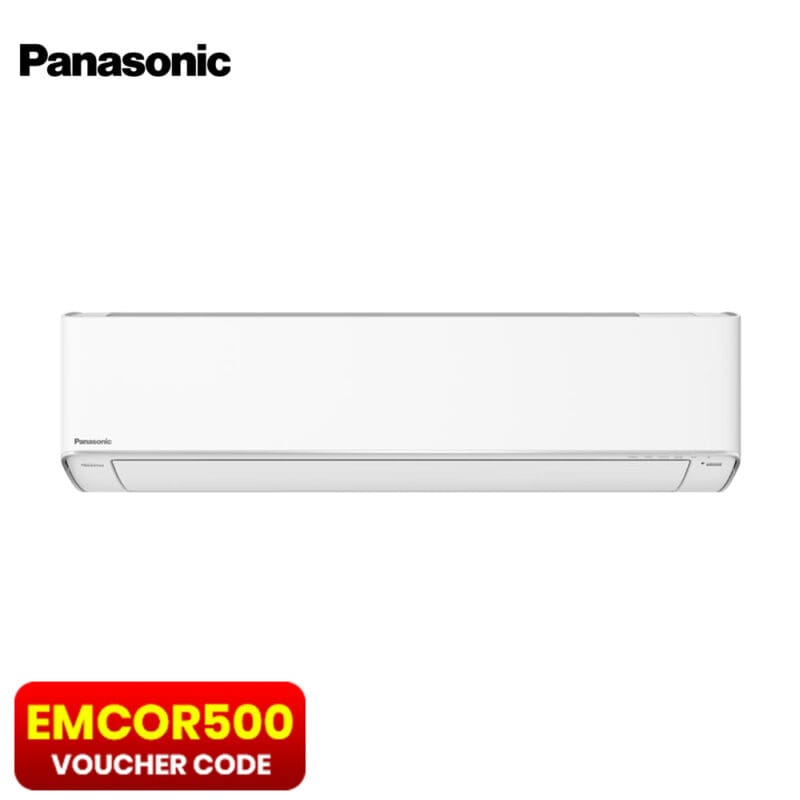

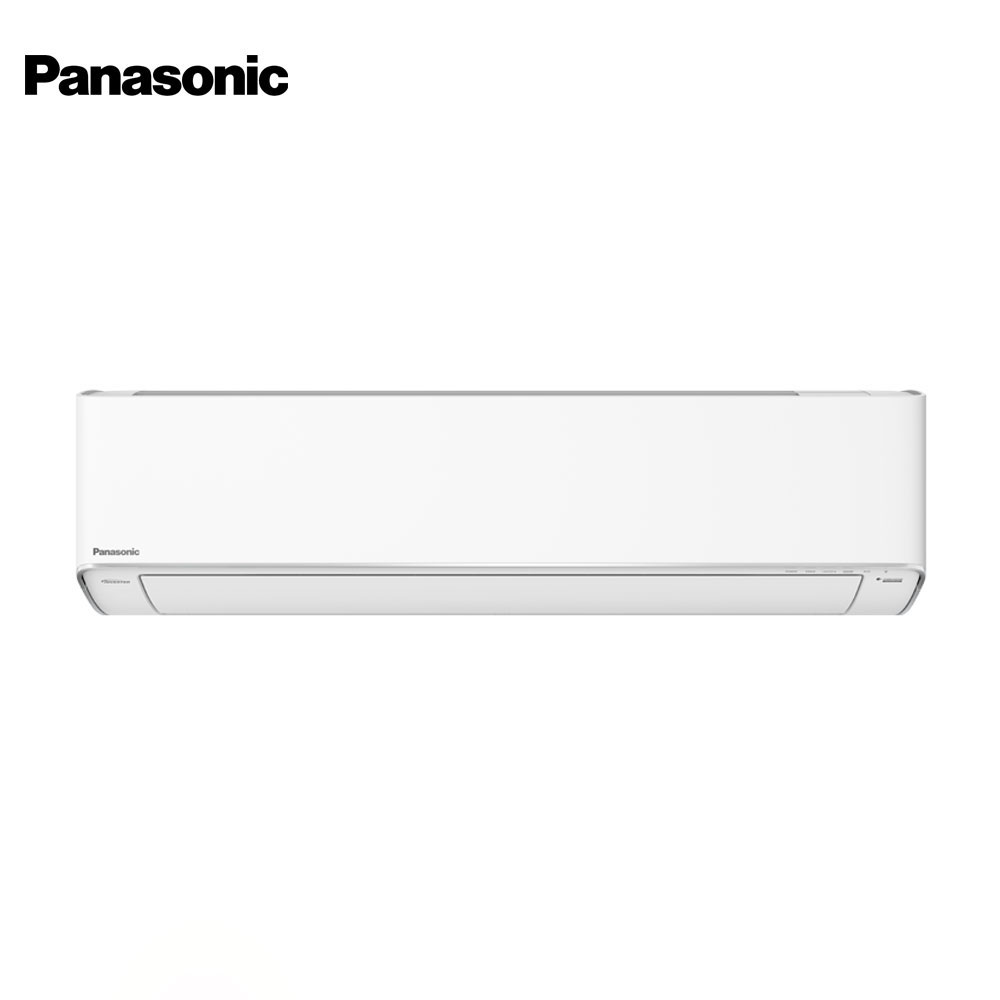

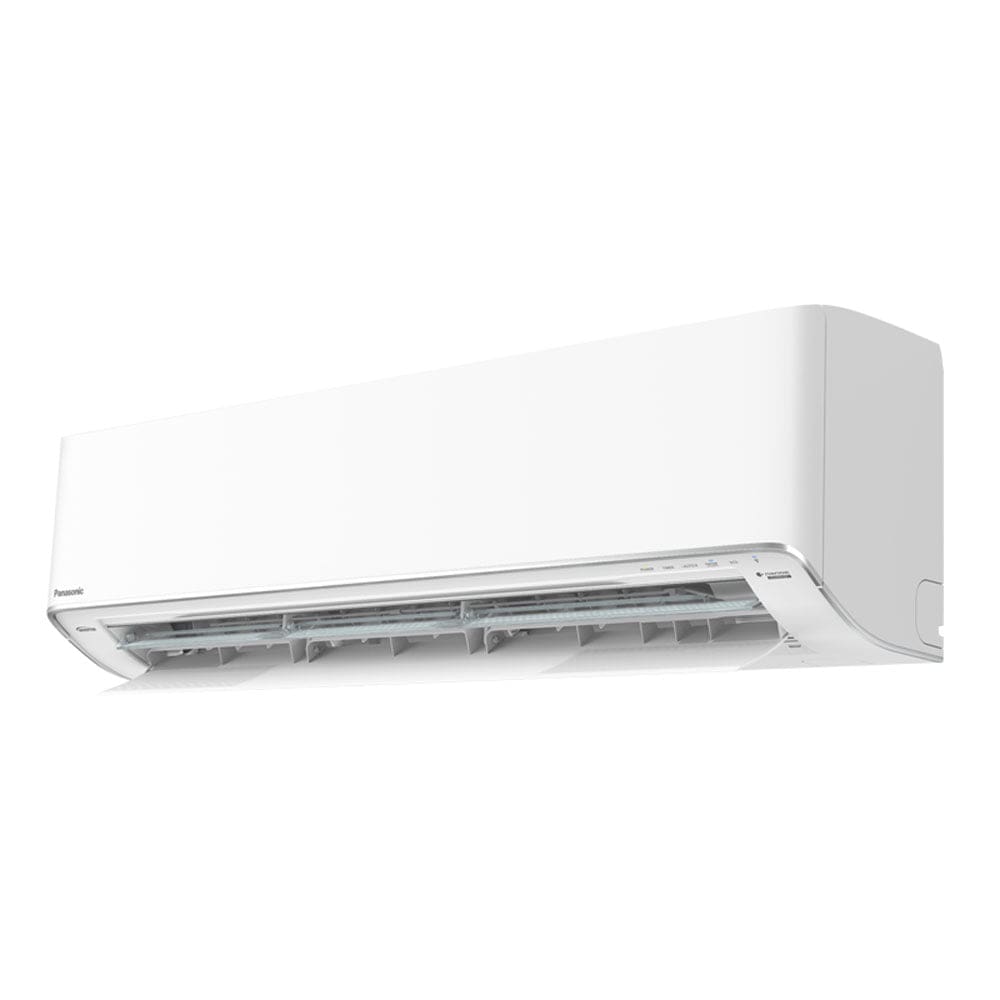

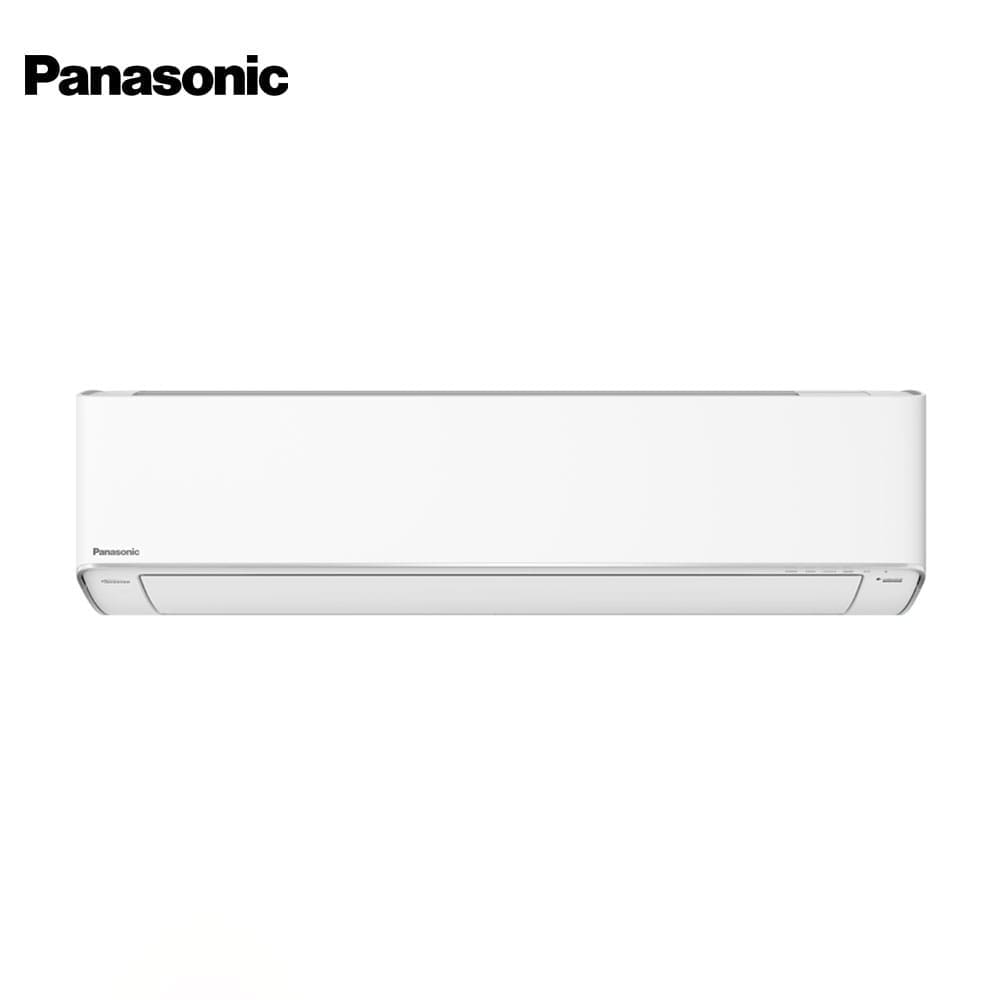

Panasonic 1HP Aero Series Premium Inverter Split Type Aircon CS/CU-XU9XKQ

Description

Cooling Capacity
• 2.55 (0.92-3.20) kW
• 9,180 (3,310-11,520) kJ/h

EER (min-max)
• 14.34 (14.71-13.09) kJ/hW

Electrical Data
• Voltage: 230 V
• Current: 3.1 A
• Power Input (min-max): 640 (225-880) W

Moisture Removal
• 1.6 L/h
• 3.4 Pt/h

Air Circulation
• Indoor: 11.8 m³/min (415 ft³/min)
• Outdoor: 27.6 m³/min (970 ft³/min)

Noise Level
• Indoor (H / L / Q-Lo): 38/26/19 dB(A)
• Outdoor (H): 47 dB(A)

Dimensions (Indoor)
• Height: 295 mm (11-5/8 inch)
• Width: 870 mm (34-9/32 inch)
• Depth: 229 mm (9-1/32 inch)

Dimensions (Outdoor)
• Height: 511 mm (20-1/8 inch)
• Width: 650 mm (25-19/32 inch)
• Depth: 230 mm (9-1/16 inch)

Net Weight
• Indoor: 10 kg (22 lb)
• Outdoor: 18 kg (40 lb)

Refrigerant Pipe Diameter
• Liquid Side: ø 6.35 mm (1/4 inch)
• Gas Side: ø 9.52 mm (3/8 inch)

Pipe Extension
• Chargeless Pipe Length: 7.5 m
• Maximum Pipe Length: 20 m
• Maximum Elevation Length: 15 m
• Additional Refrigerant Gas*: 10 g/m

Power Supply
• Outdoor

Comfort Features
• iAUTO-X: Yes
• Humidity Sensor: Yes
• ECO Mode with A.I.: Yes
• Inverter Control: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Personal Airflow Creation: Yes

Cleaner Air Features
• nanoe™ X: Yes
• nanoe-G: Yes
• Odour Removing Function: Yes
• Removable Washable Panel: Yes

Convenience Features
• 24-Hour Dual ON & OFF Real Setting Timer: Yes
• LCD Wireless Remote Control: Yes
• Wireless LAN Remote Control (For Internet Connection): Yes (Built-in)
• Wired Remote Control: Yes (Optional)

Reliability Features
• Random Auto Restart: Yes (32 Restart Patterns)
• Blue Fin Condenser: Yes
• Long Piping (max.): 20 m
• Top Panel Maintenance Access: Yes
• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao
