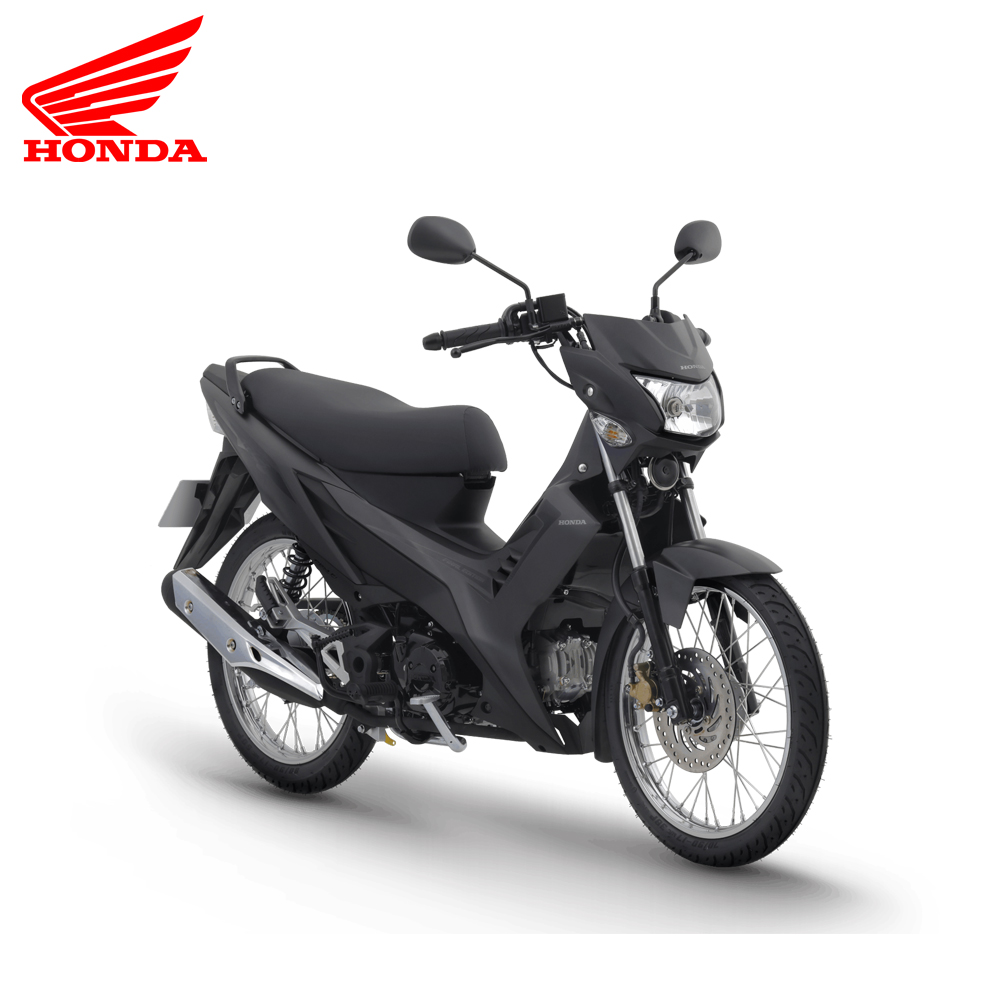

Honda Motorcycle RS125

Description

Honda Motorcycle RS125
Engine
• Engine Type: 4-stroke, 2-Valve, SOHC, Air-Cooled
• Displacement: 125 cc
• Bore & Stroke: 52.4 x 57.9 mm
• Compression Ratio: 9.3 : 1
• Maximum Power: 7.12 kW @ 7,500 rpm
• Maximum Torque: 9.55 Nm @ 6,500 rpm
• Engine Oil Capacity: 0.9 L
• Fuel System: PGM-FI
• Fuel Consumption: 67.5 km/L (WMTC)
• Transmission Type: Manual, 4-speed Constant Mesh
• Gear Shift Pattern: N-1-2-3-4 (Rotary)
• Ignition Type: Full Transisterized
• Battery Type: 12V – 3Ah (MF-WET)

Chassis
• Suspension Type (Rear): Twin Shock
• Brake Type (Front): Hydraulic Disk
• Brake Type (Rear): Mechanical Leading Trailing Drum
• Tire Size & Type (Front): 70/90 – 17 M/C 38P (With Tube)
• Tire Size & Type (Rear): 80/90 – 17 M/C 50P (With Tube)
• Wheel Type: Wire Spoke

Dimension
• Overall Dimensions (L x W x H): 1,909 x 685 x 987 mm
• Curb Weight: 104 Kg
• Seat Height: 767 mm
• Wheelbase: 1,228 mm
• Ground Clearance: 135 mm
• Fuel Tank Capacity: 3.9 L

Features
• Meter Panel: Analogue
• Key System: Mechanical Key
• Lighting System: Bulb Type

Note: Available in Visayas, Mindanao and Palawan area.
