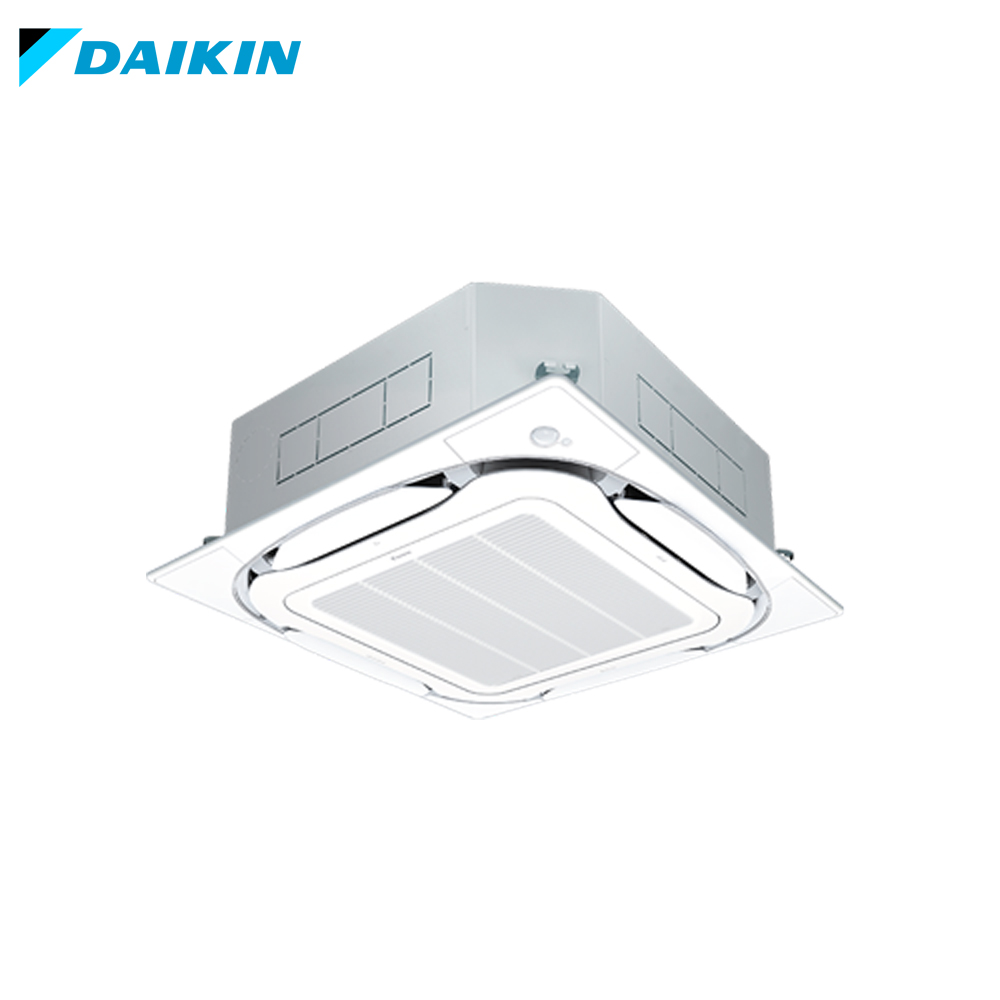

Daikin 4HP Ceiling Mounted Cassette Type Inverter Aircon FCFC100BXVA

Description

Daikin Aircon FCFC100BXVA
• Capacity Indication: 4.0HP
• Rated Cooling Capacity (Min.-Max.)
– 10.0kW (5.0-11.2)
– 34,100kW (17,100 – 38,200)
• Rated power Consumption: 3.51kW
• COP: 2.85 W/W
• CSPF: 4.32 Wh/Wh
• DOE Star Rating: 5
• Power Supply: 1ø / 220V / 60Hz
• Indoor
– Decoration Panel: Fresh White
– Airflow Rate (H/M/L/Q): 1170/1100/960/830 CFM
– Sound Level (H/M/L/Q): 50/47/43/40 dB (A)
– Dimension (HxWxD): 288x840x840mm
– Weight (Mass): 25kg
• Outdoor
– Casing Color: Ivory White
– Compressor: Hermetically Sealed Swing Type
– Sound Level (H): 52 dB(A)
– Dimension (HxWxD): 695x930x350mm
– Weight (Mass): 40kg
• Refrigerant
– Type: R32
– Charge: 0.95kg
• Connecting Pipes
– Liquid Pipe: ø9.5mm
– Gas Pipe: ø15.9mm
– Drain Indoor: ø19.0mm
• Max Interunit Piping Length: 50m
• Min Circuit Amps: 24.5A
• Max. Fuse Amps: 32A

Note: Available in Visayas, Mindanao and Palawan area.
