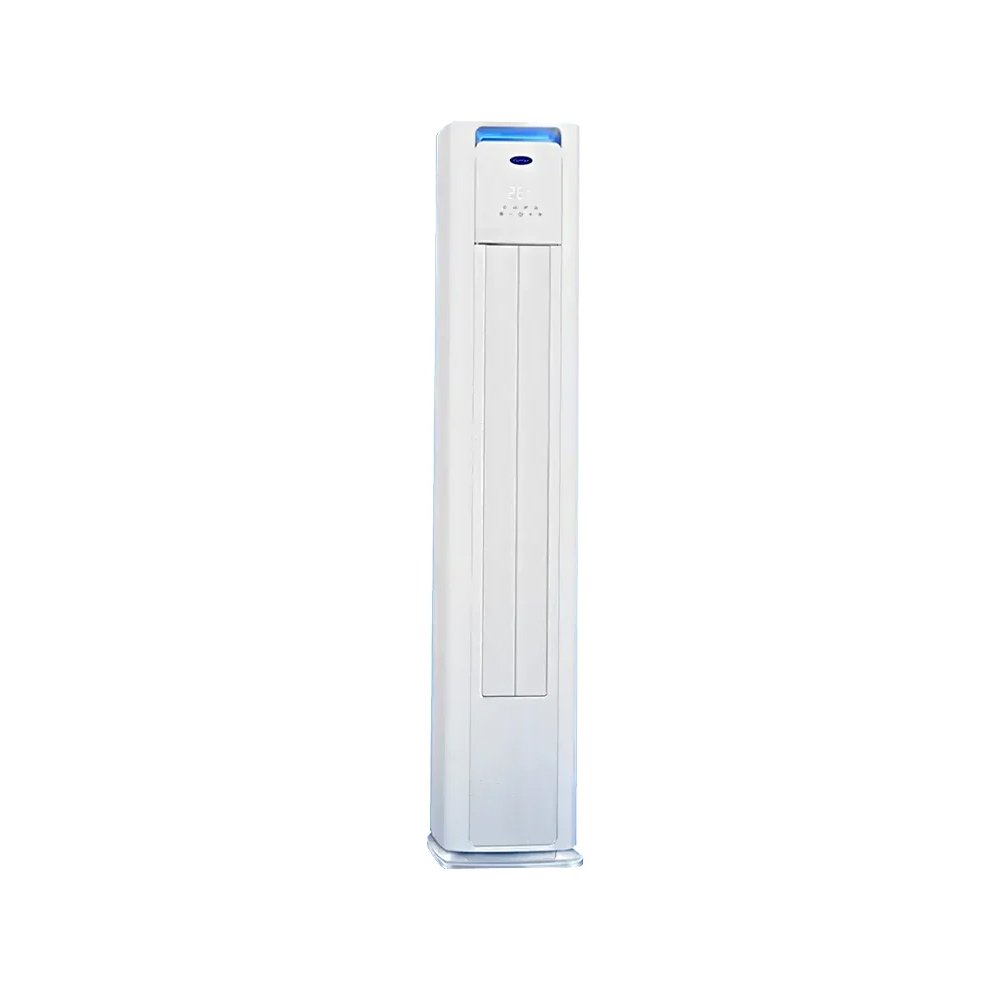

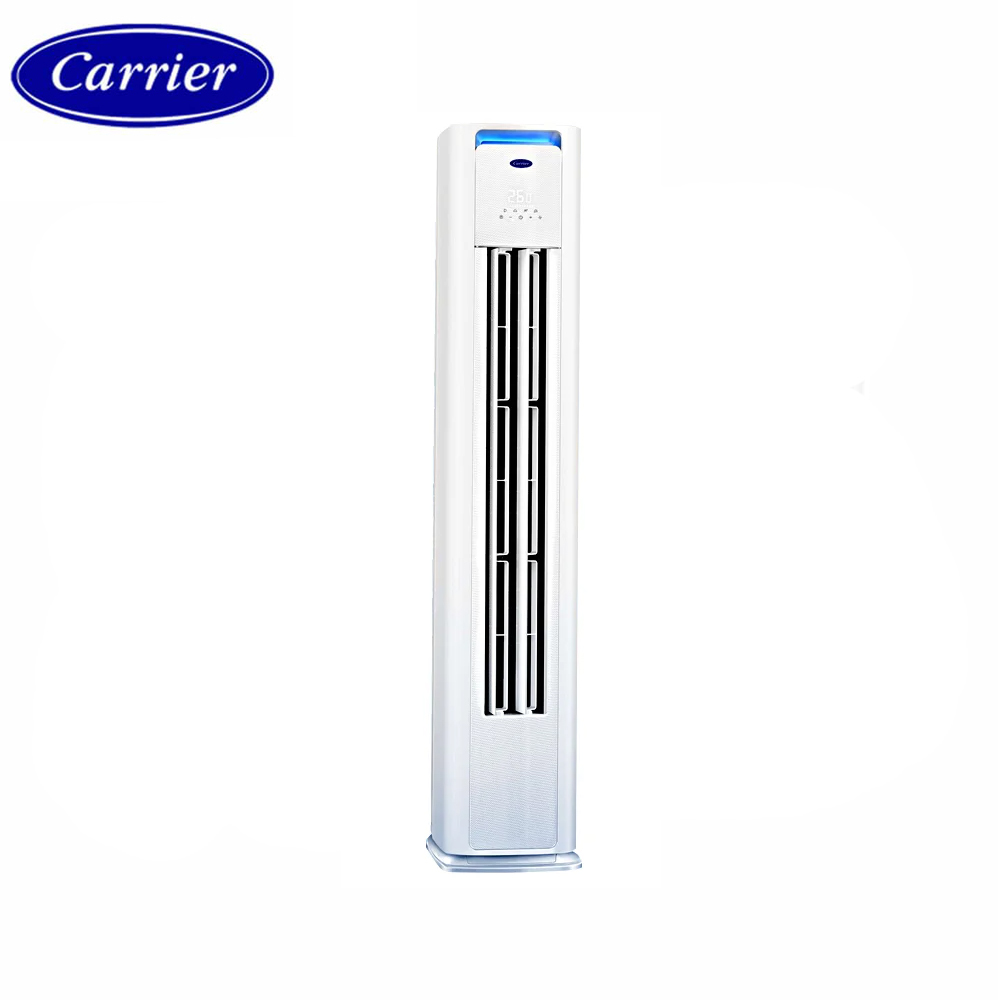

Carrier 3TR Slim Floor Standing Inverter Aircon FP-CLV036308

Description

Carrier Floor Standing Aircon FP-CLV036308
• Capacity (kJ/hr): 36400 (7,200-39,000)
• Capacity (kW): 10.10 (2.00-10.80)
• Power (W): 3,400 (350-3,850)
• EER kJ/W-hr: 10.70 (20.57-10.13)
• CSPF / Star Rating: 6.15 / 5 Star
• Electrical Char. (Vols-Ph-Hz): 230-1-60
• Rated Current (A): 22

Fan Coil Unit
• Fan airflw @ High Speed (m3/hr): 1,500
• Sound Level (H/M/L/Silence): 49/44/41/35 dB(A)

Condensing Unit
• Sound Level dB(A): 61
• Refrigerant Type: R-32, 1.4Kg
• Ref. Pipe Size, (L/G): 6.35 / 12.7mmø
• Max. Pipe Run: 35m
• Max. Vertical Separation: 10m

FCU Dimensions
• Net Dimensions (W x H x D): 380 x 1,802 x 392mm
• Gross Dimensions (W x H x D): 2,040 x 475 x 490mm (Flat)
• Weight, Net/Gross: 25.7/33.4Kg

CDU Dimensions
• Net Dimensions (W x H x D): 946 x 810 x 420mm
• Gross Dimensions (W x H x D): 1,090 x 885 x 500mm
• Weight, Net/Gross: 51.9/56.0Kg
• Stacking Height, FCU/CDU:5/2

Note: Available in Visayas, Mindanao and Palawan area.
