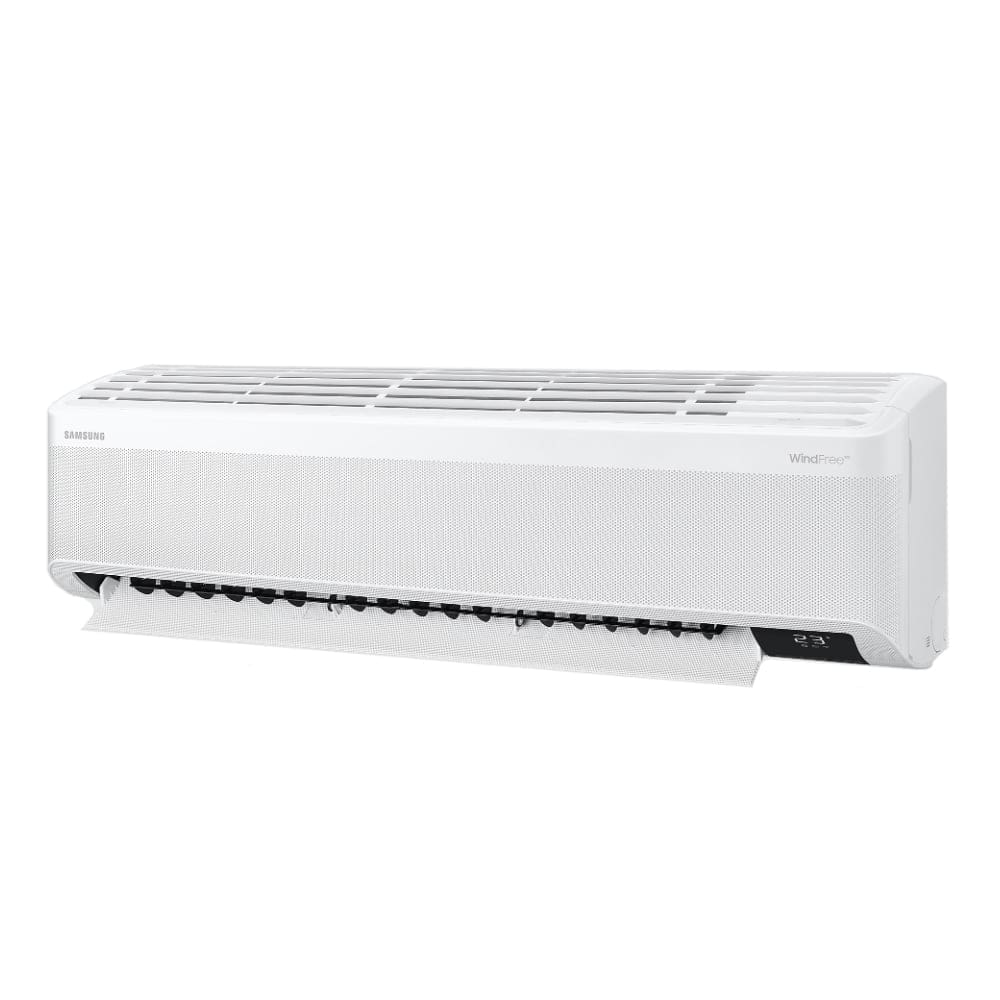

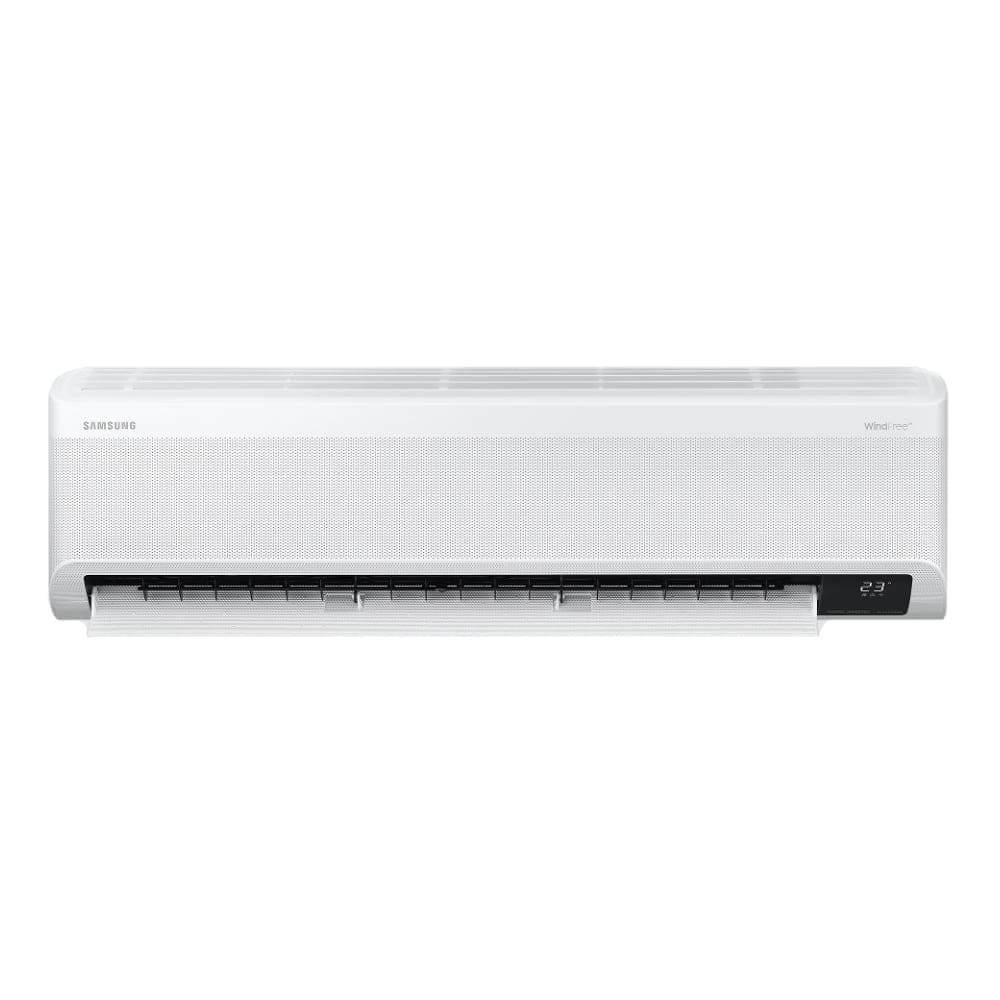

Samsung 2.5 HP WindFree Inverter Split Type Aircon AR24BYHAMWKNTC

Description

Capacity

• Capacity (Cooling, kJ/h): 23400 kJ/hW

• Capacity (Cooling, Min – Max, kJ/h): 5000 ~ 27000 kJ/hW

Noise Level

• Noise Level (Indoor, High/Low, dBA): 45 / 30 dBA

• Noise Level (Outdoor, High/Low, dBA): 52 dBA

Electrical Data

• Power Source(Φ/V/Hz): 1 / 220-240 / 60

• Power Consumption(Cooling, W): 2040 W

• Operating Current(Cooling, A): 9.0 A

Physical Specification

• Net Dimension (Indoor, W x H x D, mm): 1055 x 299 x 215 mm

• Net Dimension (Outdoor, W x H x D, mm): 880 x 638 x 310 mm

• Net Weight (Indoor, kg): 11.9 kg

• Net Weight (Outdoor, kg): 36.7 kg

Techinical Information

• Piping Length (Max, m): 20 m

• Piping Height (Max, m): 12 m

• SVC Valve (Liquid (ODxL)): 6.35

• SVC Valve (Gas (ODxL)): 15.88

• Moisture Removal (l/hr): 2.5 l/hr

• Air Circulation (Cooling, ㎥/min): 18.6 ㎥/min

• Refrigerant (Type): R32

• Low Ambient (Cooling, ℃): 16~46 ℃

• Outdoor Unit (Compressor Type): BLDC

• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow

• WindFree Cooling: Yes

• Air Direction Control (Up/Down): Auto

• Air Direction Control (Left/Right): Auto

• Air Flow Control Step (Cool/Fan): 5/4

Convenience

• SmartThings: No

• AI Auto Cooling: No

• Motion Detect Sensor: No

• Freeze Wash: No

• Beep On/Off: Yes

• 24-Hour Timer: Yes

• Auto Restart: Yes

Operating Mode

• Auto Mode: Yes

• Fast Cool: Yes

• Good Sleep: Yes

• Eco Mode: Yes

• Dehumidification: Yes

• Fan Mode: Yes

• Quiet: Yes

Smart

• WiFi Embedded: No

App Connectivity

• SmartThings App Support: No

Note: Available in Visayas and Mindanao
