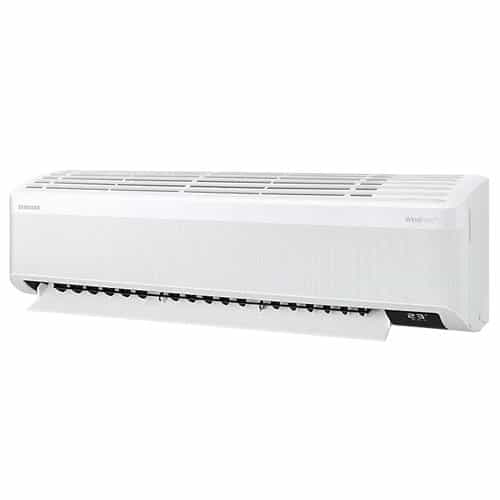

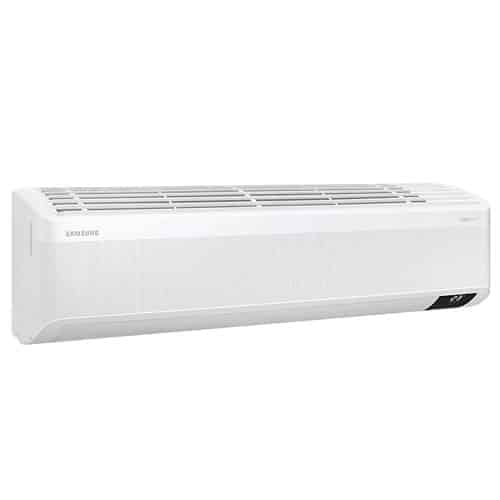

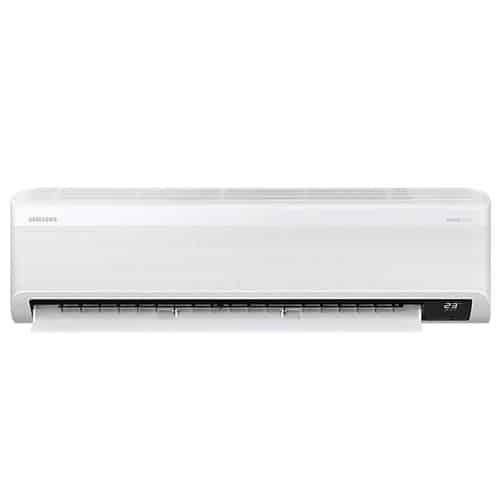

Samsung 2.0 HP WindFree Inverter Split Type Aircon AR18BYHAMWKNTC

Description

Capacity

• Capacity (Cooling, kJ/h): 19000 kJ/hW

• Capacity (Cooling, Min – Max, kJ/h): 5300 – 21500 kJ/hW

Noise Level

• Noise Level (Indoor, High/Low, dBA): 42/26 dBA

• Noise Level (Outdoor, High/Low, dBA): 52 dBA

Electrical Data

• Power Source(Φ/V/Hz): 1 / 220-240 / 60

• Power Consumption(Cooling, W): 1760 W

• Operating Current(Cooling, A): 11.5 A

Physical Specification

• Net Dimension (Indoor, WxHxD, mm): 889*299*215 mm

• Net Dimension (Outdoor, WxHxD, mm): 790*548*285 mm

• Net Weight (Indoor, kg): 10.2 kg

• Net Weight (Outdoor, kg): 30.1 kg

Technical Information

• Piping Length (Max, m): 20 m

• Piping Height (Max, m): 12 m

• SVC Valve (Liquid (ODxL)): 6.35

• SVC Valve (Gas (ODxL)): 12.7

• Moisture Removal (l/hr): 2.0 l/hr

• Air Circulation (Cooling, ㎥/min): 13.7 ㎥/min

• Refrigerant (Type): R32

• Refrigerant (Charging, tCO2e): 0.47 tCO2e

• Low Ambient (Cooling, ℃): 16~46 ℃

• Outdoor Unit (Compressor Type): BLDC

• Outdoor Unit (Anti-Corrosion Fin): Yes

Air Flow

• WindFree Cooling: Yes

• Air Direction Control (Up/Down): Auto

• Air Direction Control (Left/Right): Auto

• Air Flow Control Step (Cool/Fan): 5/4

Air Purification

• PM 1.0 Filter: No

• Tri Care Filter: No

• Easy Filter Plus (Anti-Bacteria): Yes

• Auto Clean (Self Cleaning): Yes

Convenience

• SmartThings: No

• AI Auto Cooling: No

• Motion Detect Sensor: No

• Freeze Wash: No

• Beep On/Off: Yes

• 24-Hour Timer: Yes

• Auto Restart: Yes

Operating Mode

• Auto Mode: Yes

• Fast Cool: Yes

• Good Sleep: Yes

• Eco Mode: Yes

• Dehumidification: Yes

• Fan Mode: Yes

• Quiet: Yes

Smart

• WiFi Embedded: No

App Connectivity

• SmartThings App Support: No

Note: Available in Visayas and Mindanao only
