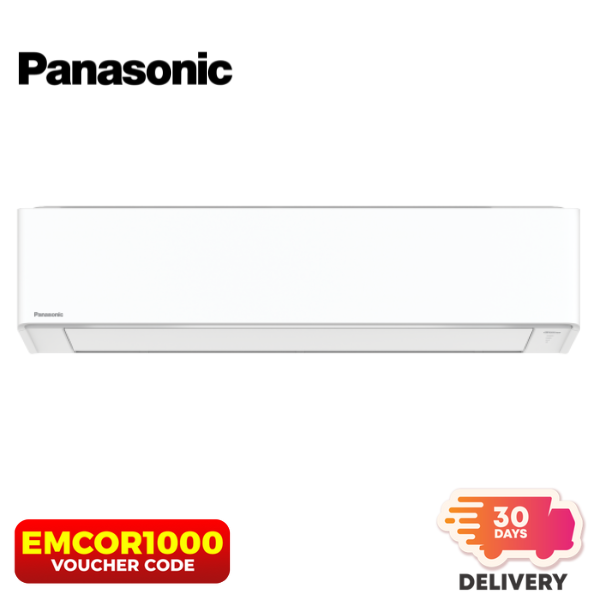

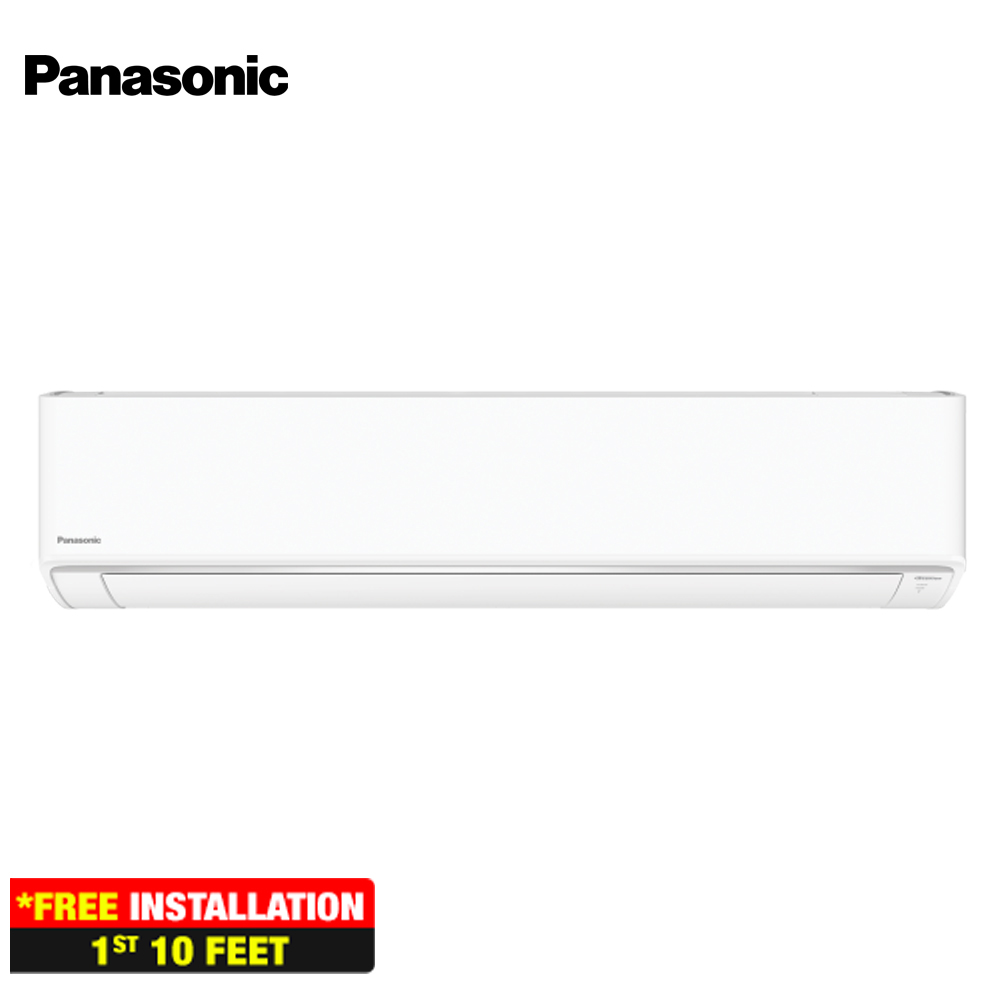

Panasonic 3HP Standard Inverter Aircon CS/CU-PU30AKQ

Description

Panasonic Aircon CS/CU-PU30AKQ
• Cooling Capacity (min-max)(kW): 8.20(1.30-10.00)kW
• Cooling Capacity (min-max) (kJ/h): 29,520 (4,680-36,000)kJ/h
• EER (min-max) (kJ/hW): 12.583(13.00-11.25)kJ/hW
• CSPF (W/W): 5.70 W/W (5 star)
• Voltage (V): 230V
• Current (A): 10.20A
• Power input (min-max) (W): 2,300 (360-3,200)W
• Moisture Removal (L/h): 4.8 l/h
• Moisture Reoval (Pt/h): 10.1 Pt/h
• Indoor Unit Air Circulation: 22.2m³/min (785ft³/min)
• Indoor Unit Noise Level (H/L/Q-Lo): 47/37/34 dB(A)
• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 309 x 1,212 x 269mm
• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 12-3/16 x 47-23/32 x 10-19/32in
• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 352 x 1,300 x 403mm
• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 13-7/8 x 51-3/16 x 15-7/8in
• Indoor Unit Net Weight: 16Kg (35 lb)
• Indoor Unit Gross Weight: 19Kg (42 lb)
• Outdoor Unit Air Circulation: 45.9m³/min (1,620ft³/min)
• Outdoor Unit Noise Level (H): 53 dB(A)
• Outdoor Unit Installed Condition-Unit Dimensions (H x W x D): 695 x 875 x 320mm
• Outdoor Unit Installed Condition-Packaging Dimensions (H x W x D): 27-3/8 x 34-15/32 x 12-5/8in
• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 761 x 1,049 x 460mm
• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 29-31/32 x 41-5/16 x 18-1/8in
• Outdoor unit Net Weight: 43kg (95 lb)
• Outdoor unit Gross Weight: 47kg (104 lb)
• Refrigerant Pipe Diameter (Liquid Side): ø6.35mm (1/4 in)
• Refrigerant Pipe Diameter (Gas Side): ø 15.88mm (5/8 in)
• Pipe Extension (Chargeless Pipe Lenght): 10m
• Pipe Extension (Maximum Pipe Lenght): 30m
• Pipe Extension (Maximum Elevation Lenght): 20m
• Pipe Extension (Additional Refrigerant gas): 25 g/m
• Power Supply: Outdoor
• Odor Removing Function: Yes
• Removable Washable Panel: Yes
• WiFi: Built-in
• 24-Hour Dual IN & OFF Real Setting Timer: Yes
• LCD Wireless Remote Control: Yes
• Wired Remote Control: Optional
• Powerful Mode: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Personal Airflow Creation: Yes
• Airflow Direction Control (Up & Down): No
• Manual Horizontal Airflow Direction Control: No
• Inverter Control: Yes
• ECO MOde with A.I: Yes
• Random Auto Restart: R32
• Blue Fin Condenser: Yes
• long Piping (max): 30m
• Top Panel Maintenance Access: Yes
• Self-Diagnostic Function: Yes

Note: Available in Visayas, Mindanao and Palawan area.
