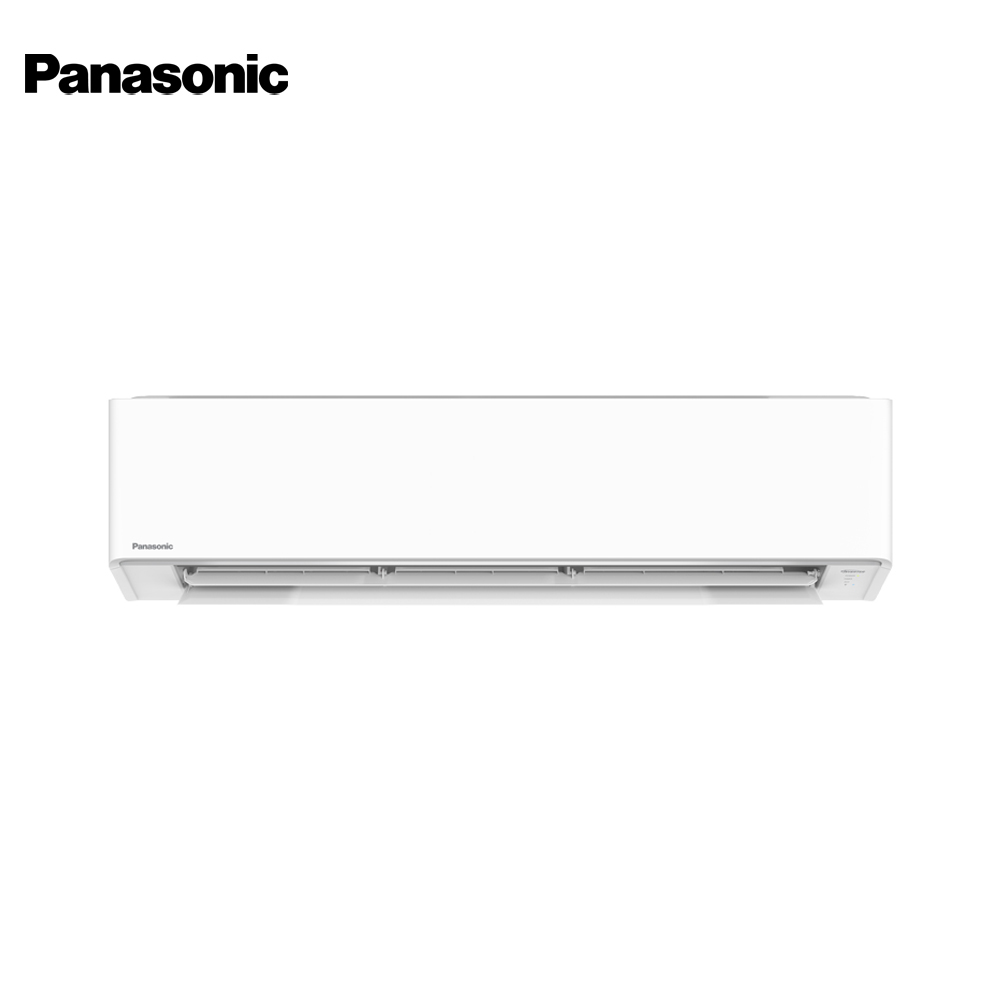

Panasonic 2.5HP Standard Inverter Aircon CS/CU-PU24AKQ

Description

Panasonic 2.5HP Standard Inverter Aircon CS/CU-PU24AKQ

• Cooling Capacity (min-max)(kW): 6.25(1.12-7.18)kW

• Cooling Capacity (min-max) (kJ/h): 22,500 (4,030-25,850)kJ/h

• EER (min-max) (kJ/hW): 12.50(16.12-12.43)kJ/hW

• CSPF (W/W): 6.11 W/W (5 star)

• Voltage (V): 230V

• Current (A): 7.90A

• Power input (min-max) (W): 1,800 (250-2,080)W

• Moisture Removal (L/h): 3.5 l/h

• Moisture Reoval (Pt/h): 7.4 Pt/h

• Indoor Unit Air Circulation: 19.9m³/min (700ft³/min)

• Indoor Unit Noise Level (H/L/Q-Lo): 45/34/29 dB(A)

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 295 x 1,060 x 249mm

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 11-5/8 x 41-3/4 x 9-13/16in

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 314 x 1,168 x 383mm

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 12-3/8 x 46 x 15-3/32/16in

• Indoor Unit Net Weight: 12Kg (26 lb)

• Indoor Unit Gross Weight: 15Kg (33 lb)

• Outdoor Unit Air Circulation: 34.9m³/min (1,230ft³/min)

• Outdoor Unit Noise Level (H): 51 dB(A)

• Outdoor Unit Installed Condition-Unit Dimensions (H x W x D): 619 x 824 x 299mm

• Outdoor Unit Installed Condition-Packaging Dimensions (H x W x D): 24-3/8 x 32-15/32 x 11-25/32in

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 684 x 967 x 425mm

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 26-15/16 x 38-3/32 x 16-3/4in

• Outdoor unit Net Weight: 32kg (71 lb)

• Outdoor unit Gross Weight: 35kg (77 lb)

• Refrigerant Pipe Diameter (Liquid Side): ø6.35mm (1/4 in)

• Refrigerant Pipe Diameter (Gas Side): ø 12.70mm (1/2 in)

• Pipe Extension (Chargeless Pipe Lenght): 10m

• Pipe Extension (Maximum Pipe Lenght): 30m

• Pipe Extension (Maximum Elevation Lenght): 20m

• Pipe Extension (Additional Refrigerant gas): 15 g/m

• Power Supply: Outdoor

• Odor Removing Function: Yes

• Removable Washable Panel: Yes

• WiFi: Built-in

• 24-Hour Dual IN & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wired Remote Control: Optional

• Powerful Mode: Yes

• Sleep Mode: Yes

• Quiet Mode: Yes

• Soft Dry Operation Mode: Yes

• Personal Airflow Creation: Yes

• Airflow Direction Control (Up & Down): No

• Manual Horizontal Airflow Direction Control: No

• Inverter Control: Yes

• ECO MOde with A.I: Yes

• Random Auto Restart: R32

• Blue Fin Condenser: Yes

• long Piping (max): 30m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao areas
