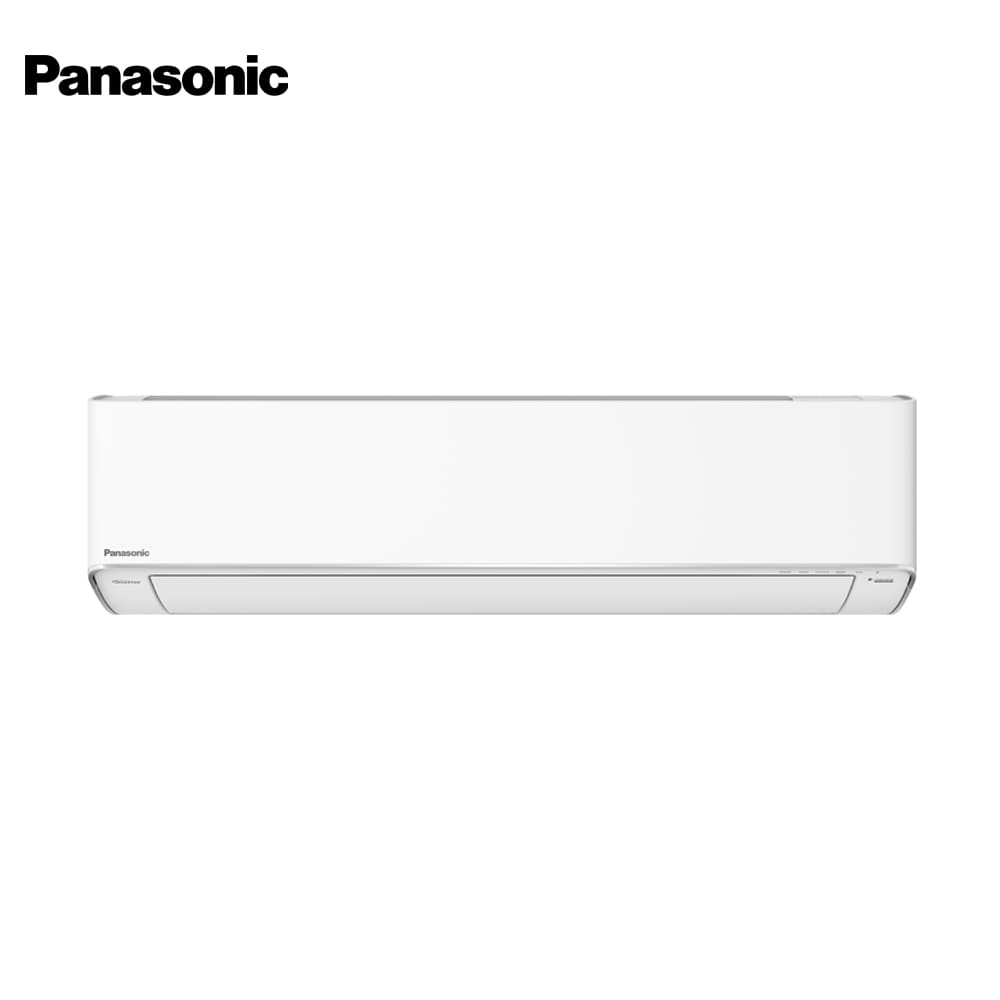

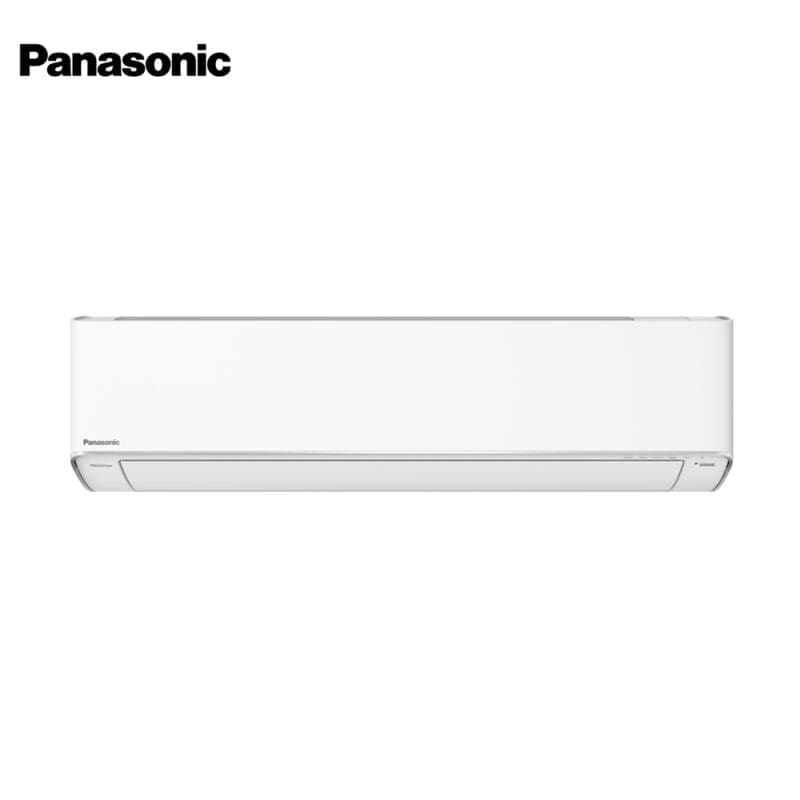

Panasonic 2.5HP Premium Inverter Aircon CS/CU-XU24XKQ

Description

Panasonic Premium Inverter Aircon

Basic Specification

• Model

– Indoor (60 Hz): CS-XU24XKQ

– Outdoor: CU-XU24XKQ

• Cooling Capacity (min-max)

– 6.10 (1.12-7.18) kW

– 21,960 (4,030-25,850) kJ/h

• EER (min-max): 14.17 (16.12-12.61) kJ/hW

• Electrical Data

– Voltage: 230 V

– Current: 6.9 A

– Power Input (min-max): 1,550 (250-2,050) W

• Moisture Removal

– 3.4 L/h

– 7.2 Pt/h

• Air Circulation

– Indoor: 19.2 m³/min (680 ft³/min)

– Outdoor: 46.3 m³/min (1,635 ft³/min)

• Noise Level

– Indoor (H / L / Q-Lo): 45/34/28 dB(A)

– Outdoor (H): 51 dB(A)

• Dimensions (Indoor)

– Height: 295 mm (11-5/8 inch)

– Width: 1,040 mm (40-31/32 inch)

– Depth: 244 mm (9-5/8 inch)

• Dimensions (Outdoor)

– Height: 695 mm (27-3/8 inch)

– Width: 875 mm (34-15/32 inch)

– Depth: 320 mm (12-5/8 inch)

• Net Weight

– Indoor: 12 kg (26 lb)

– Outdoor: 39 kg (86 lb)

• Refrigerant Pipe Diameter

– Liquid Side: ø 6.35 mm (1/4 inch)

– Gas Side: ø 12.70 mm (1/2 inch)

• Pipe Extension

– Chargeless Pipe Length: 10 m

– Maximum Pipe Length: 30 m

– Maximum Elevation Length: 20 m

– Additional Refrigerant Gas*: 15 g/m

• Power Supply: Outdoor

Comfort Features

• iAUTO-X: Yes

• Humidity Sensor: Yes

• ECO Mode with A.I.: Yes

• Inverter Control: Yes

• Sleep Mode: Yes

• Quiet Mode: Yes

• Soft Dry Operation Mode: Yes

• Personal Airflow Creation: Yes

Cleaner Air Features

• nanoe™ X: Yes

• nanoe-G: Yes

• Odour Removing Function: Yes

• Removable Washable Panel: Yes

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wireless LAN Remote Control (For Internet Connection): Yes (Built-in)

• Wired Remote Control: Yes (Optional)

Reliability Features

• Random Auto Restart: Yes (32 Restart Patterns)

• Blue Fin Condenser: Yes

• Long Piping (max.): 30 m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao areas
