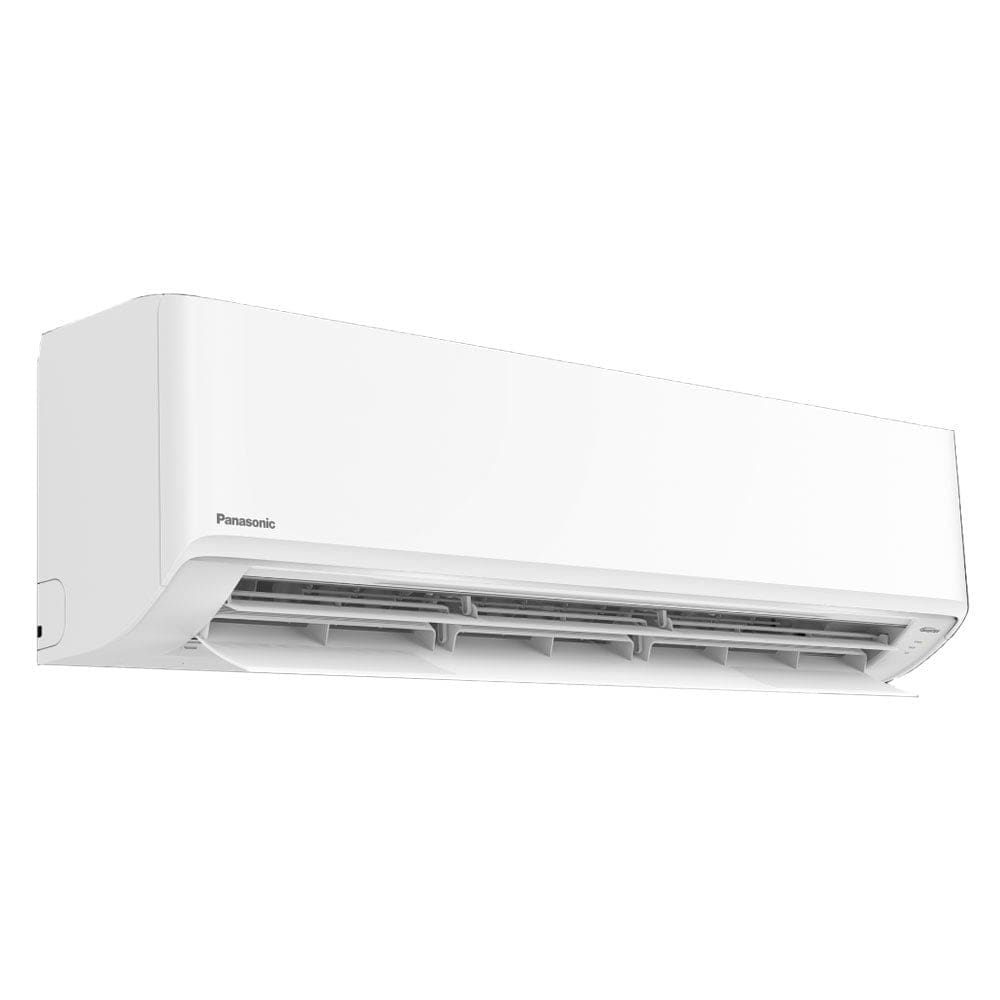

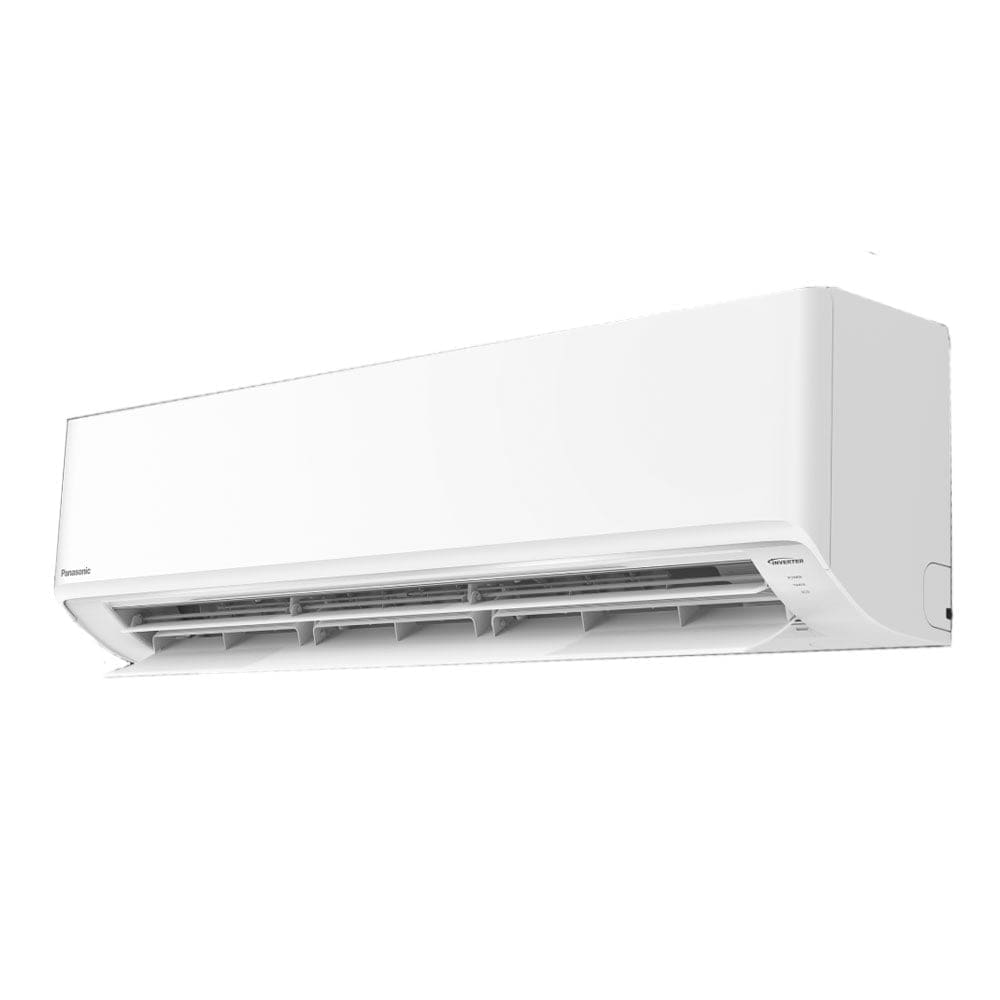

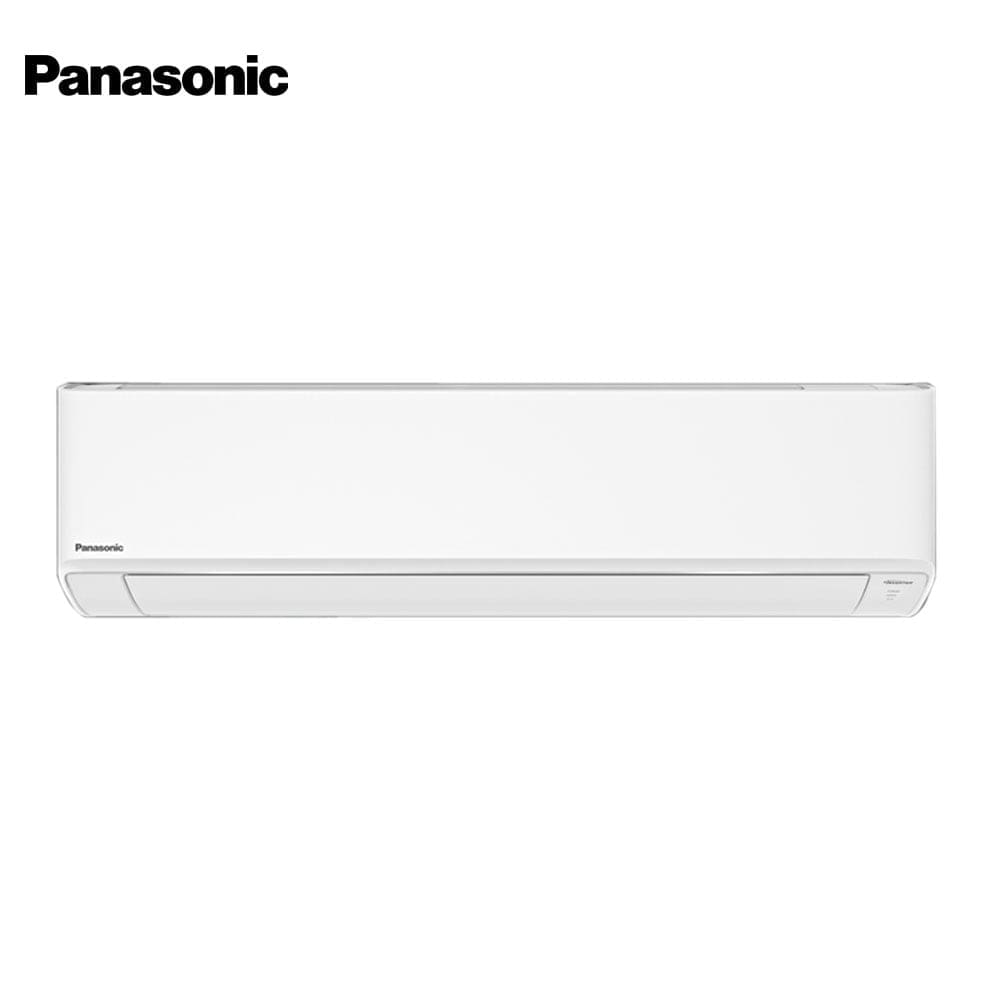

Panasonic 2.5 Split Type Inverter Aircon CS/CU-PU24XKQ

Description

Panasonic Aircon CS/CU-PU24XKQ

Basic Specification

• Indoor (60 Hz): CS-PU24XKQ

• Outdoor: CU-PU24XKQ

• Cooling Capacity (min-max)

– 6.10 (1.12-7.18) kW

– 21,960 (4,030-25,850) kJ/h

• EER (min-max): 13.31 (16.12-12.61) kJ/hW

• Electrical Data

– Voltage: 230 V

– Current: 7.4 A

– Power Input (min-max): 1,650 (250-2,050) W

• Moisture Removal

– 3.4 L/h

– 7.2 Pt/h

• Air Circulation

– Indoor: 19.2 m³/min (680 ft³/min)

– Outdoor: 34.9 m³/min (1,230 ft³/min)

• Noise Level

– Indoor (H / L / Q-Lo): 45/36/29 dB(A)

– Outdoor (H): 51 dB(A)

• Dimensions (Indoor)

– Height: 295 mm (11-5/8 inch)

– Width: 1,040 mm (40-31/32 inch)

– Depth: 244 mm (9-5/8 inch)

• Dimensions (Outdoor)

– Height: 619 mm (24-3/8 inch)

– Width: 824 mm (32-15/32 inch)

– Depth: 299 mm (11-25/32 inch)

• Net Weight

– Indoor: 12 kg (26 lb)

– Outdoor: 31 kg (68 lb)

• Refrigerant Pipe Diameter

– Liquid Side: ø 6.35 mm (1/4 inch)

– Gas Side: ø 12.70 mm (1/2 inch)

• Pipe Extension

– Chargeless Pipe Length: 10 m

– Maximum Pipe Length: 30 m

– Maximum Elevation Length: 20 m

– Additional Refrigerant Gas*: 15 g/m

• Power Supply: Outdoor

Comfort Features

• ECO Mode With A.I.: Yes

• Sleep Mode: Yes

• Inverter Control: Yes

• Powerful Mode: Yes

• Soft Dry Operation Mode: Yes

• Quiet Mode: Yes

• Airflow Direction Control (Up & Down): Yes

• Manual Horizontal Airflow Direction Control: Yes

Cleaner Air Features

• Odour Removing Function: Yes

• Removable Washable Panel: Yes

Convenience Features

• 24-Hour Dual ON & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wireless LAN Remote Control (For Internet Connection): Yes (Optional)

• Wired Remote Control: Yes (Optional)

Reliability Features

• Random Auto Restart: Yes (32 Restart Patterns)

• Blue Fin Condenser: Yes

• Long Piping (max.): 30 m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao areas.
