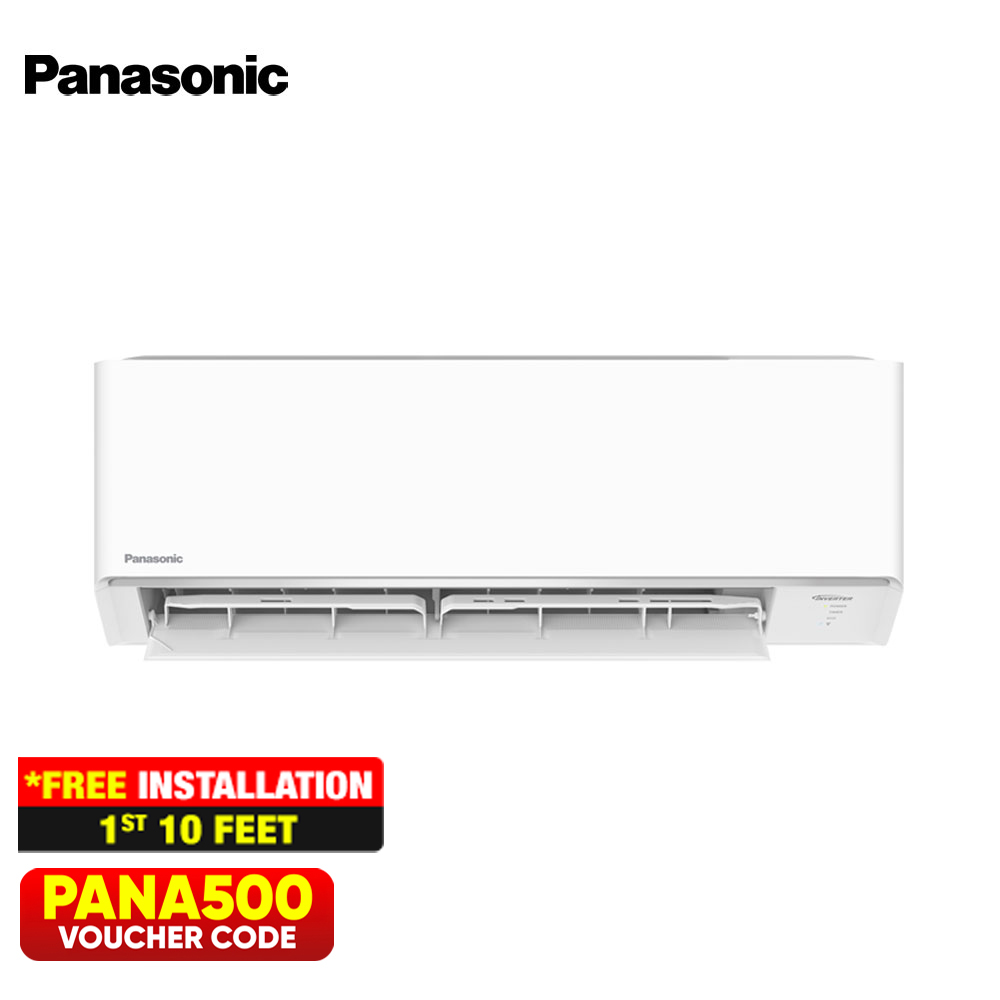

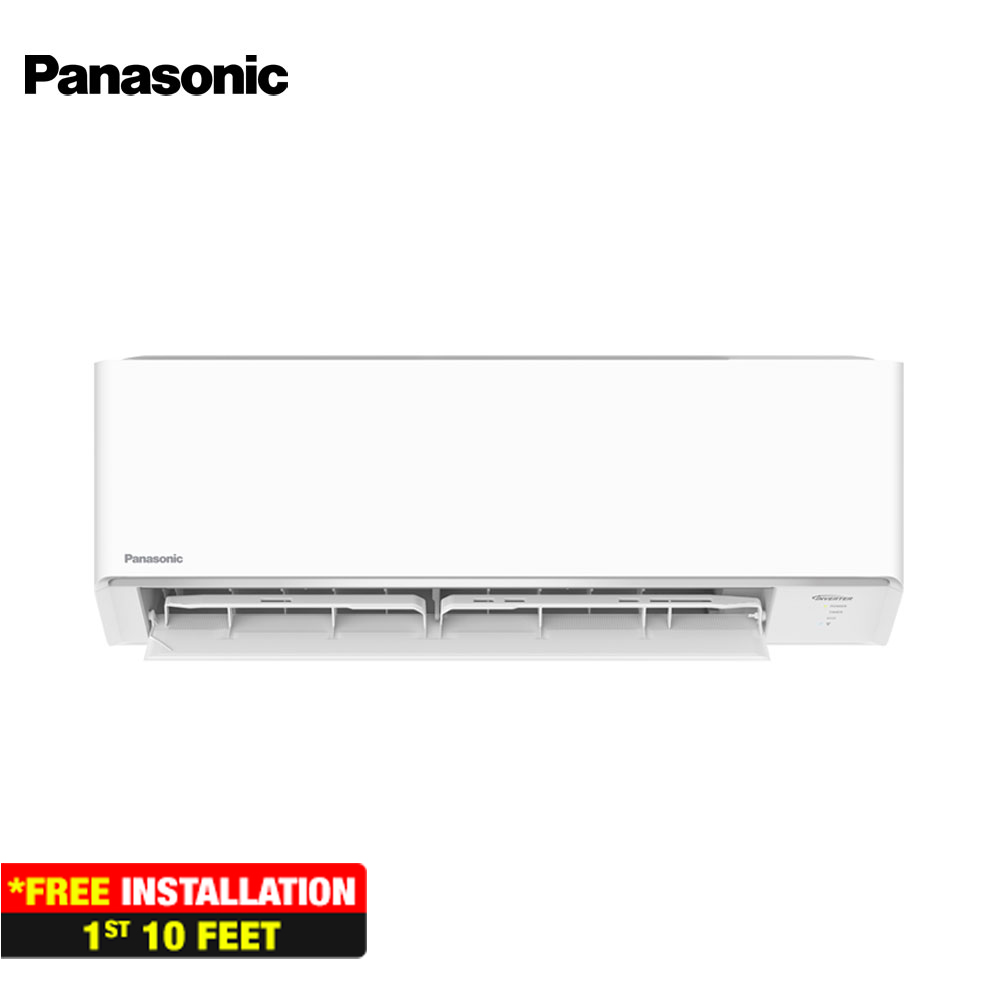

Panasonic 1HP Standard Inverter Aircon CS/CU-PU9AKQ

Description

Panasonic 1HP Standard Inverter Aircon

• Cooling Capacity (min-max)(kW): 2.65(0.90-3.40)kW

• Cooling Capacity (min-max) (kJ/h): 9,540 (3,240-12,240) kJ/h

• EER (min-max) (kJ/hW): 12.72 (14.40-11.88) kJ/hW

• CSPF (W/W): 5.36 W/W (5 star)

• Voltage (V): 230V

• Current (A): 3.60A

• Power input (min-max) (W): 750 (225-1,030)W

• Moisture Removal (L/h): 1.6 l/h

• Moisture Reoval (Pt/h): 3.4 Pt/h

• Indoor Unit Air Circulation: 10.3m³/min (365ft³/min)

• Indoor Unit Noise Level (H/L/Q-Lo): 36/26/21 dB(A)

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 290 x 765 x 214mm

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 11-7/16 x 30-1/8 x 8-7/16in

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 266 x 847 x 373mm

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 10-1/2 x 33-3/8 x 14-11/16in

• Indoor Unit Net Weight: 8Kg (18 lb)

• Indoor Unit Gross Weight: 9Kg (20 lb)

• Outdoor Unit Air Circulation: 26.7m³/min (940ft³/min)

• Outdoor Unit Noise Level (H): 47 dB(A)

• Outdoor Unit Installed Condition-Unit Dimensions (H x W x D): 511 x 650 x 230mm

• Outdoor Unit Installed Condition-Packaging Dimensions (H x W x D): 20-1/8 x 25-19/32 x 9-1/16in

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 582 x 793 x 356mm

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 22-15/16 x 31-1/4 x 14-1/32in

• Outdoor unit Net Weight: 18kg (40 lb)

• Outdoor unit Gross Weight: 20kg (44 lb)

• Refrigerant Pipe Diameter (Liquid Side): ø6.35mm (1/4 in)

• Refrigerant Pipe Diameter (Gas Side): ø9.52mm (3/8 in)

• Pipe Extension (Chargeless Pipe Lenght): 7.5m

• Pipe Extension (Maximum Pipe Lenght): 20m

• Pipe Extension (Maximum Elevation Lenght):15m

• Pipe Extension (Additional Refrigerant gas): 10 g/m

• Power Supply: Outdoor

• Odor Removing Function: Yes

• Removable Washable Panel: Yes

• WiFi: Built-in

• 24-Hour Dual IN & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wired Remote Control: Optional

• Powerful Mode: Tes

• Sleep Mode: Yes

• Quiet Mode: Yes

• Soft Dry Operation Mode: Yes

• Personal Airflow Creation: No

• Airflow Direction Control (Up & Down): Yes

• Manual Horizontal Airflow Direction Control: Yes

• Inverter Control: Yes

• ECO MOde with A.I: Yes

• Random Auto Restart: R32

• Blue Fin Condenser: Yes

• long Piping (max): 20m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao areas
