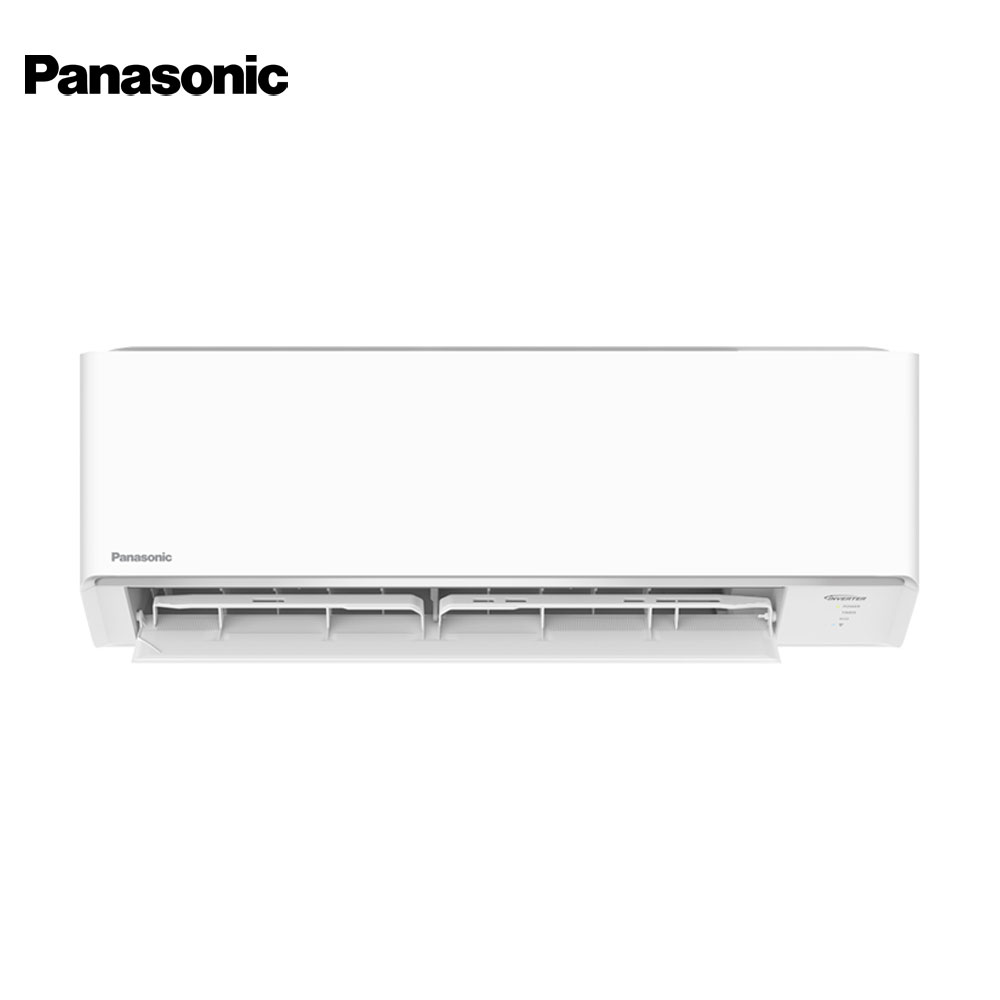

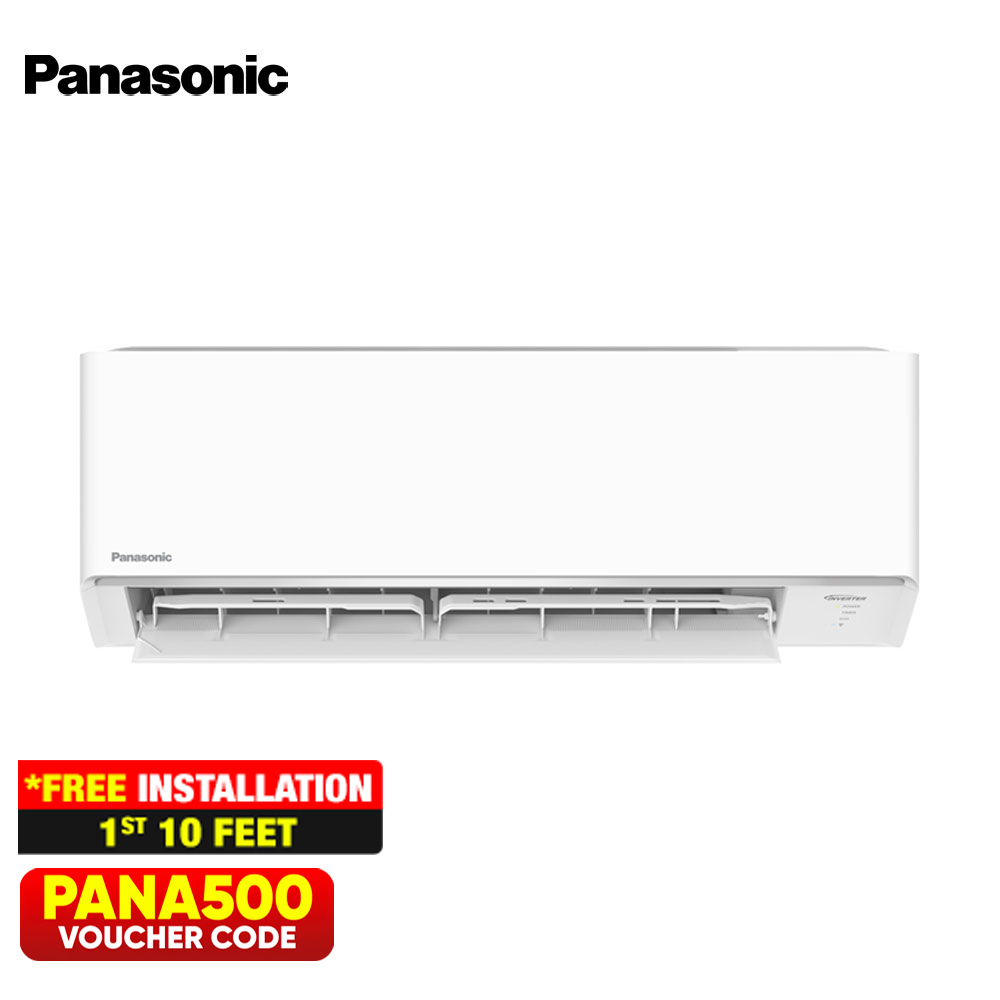

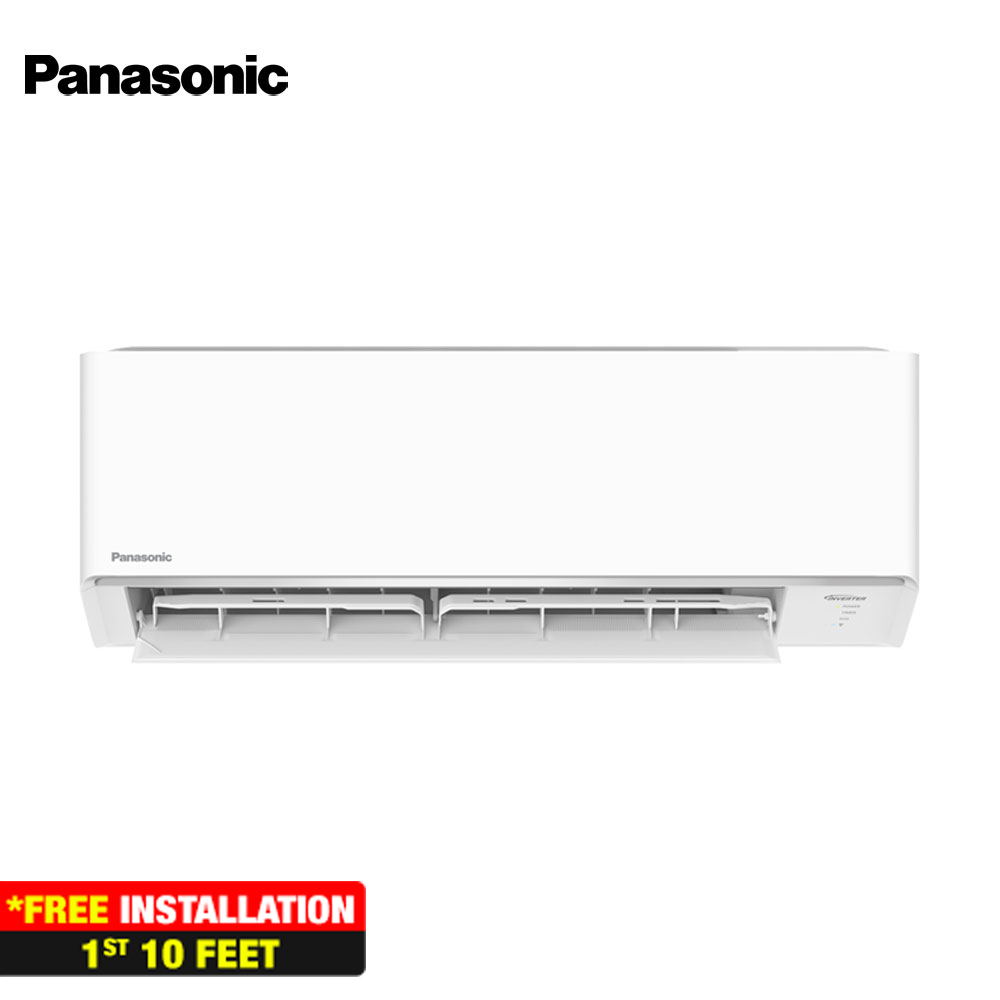

Panasonic 1.5HP Standard Inverter Aircon CS/CU-PU12AKQ

Description

Panasonic 1.5HP Standard Inverter Aircon

• Cooling Capacity (min-max)(kW): 3.52(1.02-4.10)kW

• Cooling Capacity (min-max) (kJ/h): 12,670 (3,670-14,760) kJ/h

• EER (min-max) (kJ/hW): 12.30 (13.35-11.71) kJ/hW

• CSPF (W/W): 5.37 W/W (5 star)

• Voltage (V): 230V

• Current (A): 4.60A

• Power input (min-max) (W): 1,030 (275-1,260)W

• Moisture Removal (L/h): 2.0 l/h

• Moisture Reoval (Pt/h): 4.2 Pt/h

• Indoor Unit Air Circulation: 11.0m³/min (390ft³/min)

• Indoor Unit Noise Level (H/L/Q-Lo): 38/28/21 dB(A)

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 290 x 765 x 214mm

• Indoor Unit Installed Condition-Unit Dimensions (H x W x D): 11-7/16 x 30-1/8 x 8-7/16in

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 266 x 847 x 373mm

• Indoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 10-1/2 x 33-3/8 x 14-11/16in

• Indoor Unit Net Weight: 8Kg (18 lb)

• Indoor Unit Gross Weight: 9Kg (20 lb)

• Outdoor Unit Air Circulation: 30.6m³/min (1080ft³/min)

• Outdoor Unit Noise Level (H): 48 dB(A)

• Outdoor Unit Installed Condition-Unit Dimensions (H x W x D): 542 x 780 x 289mm

• Outdoor Unit Installed Condition-Packaging Dimensions (H x W x D): 21-11/32 x 30-23/32 x 11-13/32in

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 607 x 900 x 405mm

• Outdoor Unit Stacking Condition-Packaging Dimensions (H x W x D): 23-29/32 in x 35-7/16 x 15-31/32in

• Outdoor unit Net Weight: 22kg (49 lb)

• Outdoor unit Gross Weight: 25kg (55 lb)

• Refrigerant Pipe Diameter (Liquid Side): ø6.35mm (1/4 in)

• Refrigerant Pipe Diameter (Gas Side): ø9.52mm (3/8 in)

• Pipe Extension (Chargeless Pipe Lenght): 7.5m

• Pipe Extension (Maximum Pipe Lenght): 20m

• Pipe Extension (Maximum Elevation Lenght):15m

• Pipe Extension (Additional Refrigerant gas): 10 g/m

• Power Supply: Outdoor

• Odor Removing Function: Yes

• Removable Washable Panel: Yes

• WiFi: Built-in

• 24-Hour Dual IN & OFF Real Setting Timer: Yes

• LCD Wireless Remote Control: Yes

• Wired Remote Control: Optional

• Powerful Mode: Yes

• Sleep Mode: Yes

• Quiet Mode: Yes

• Soft Dry Operation Mode: Yes

• Personal Airflow Creation: No

• Airflow Direction Control (Up & Down): Yes

• Manual Horizontal Airflow Direction Control: Yes

• Inverter Control: Yes

• ECO MOde with A.I: Yes

• Random Auto Restart: R32

• Blue Fin Condenser: Yes

• long Piping (max): 20m

• Top Panel Maintenance Access: Yes

• Self-Diagnostic Function: Yes

Note: Available in Visayas, Mindanao and Palawan areas.
