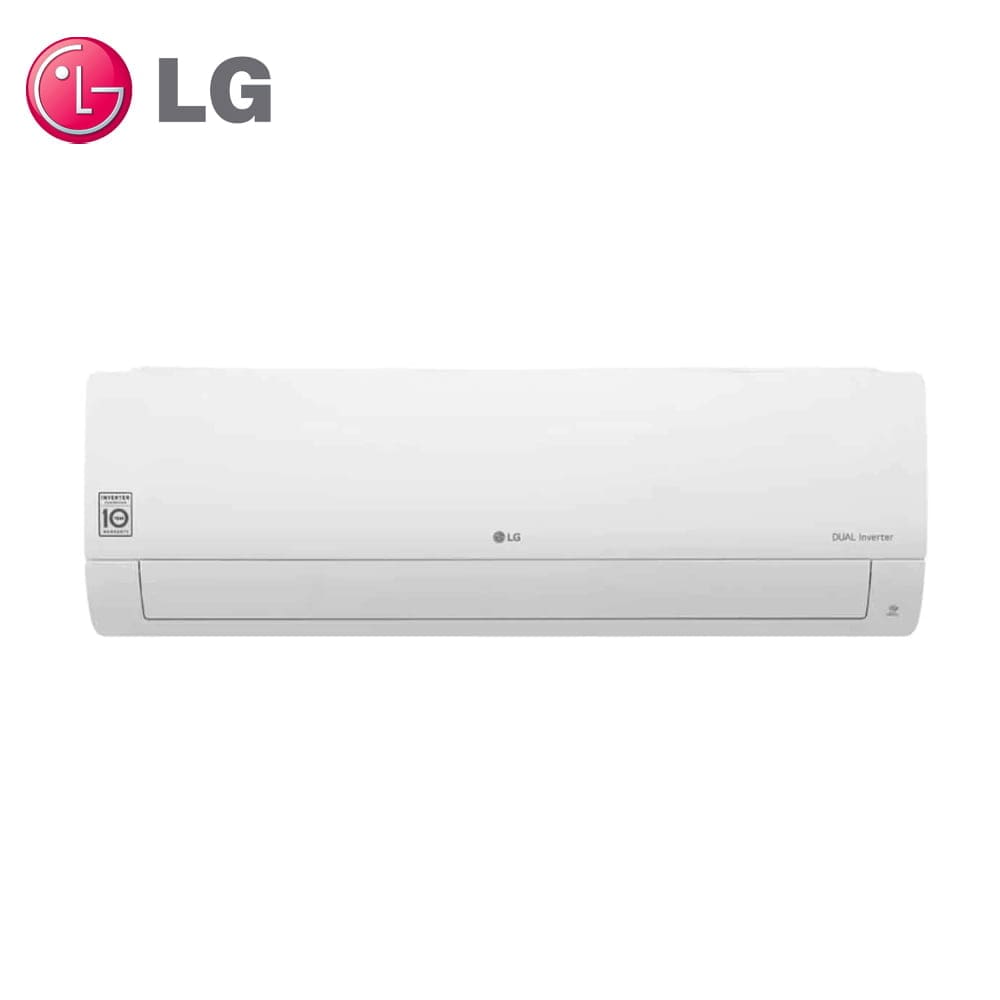

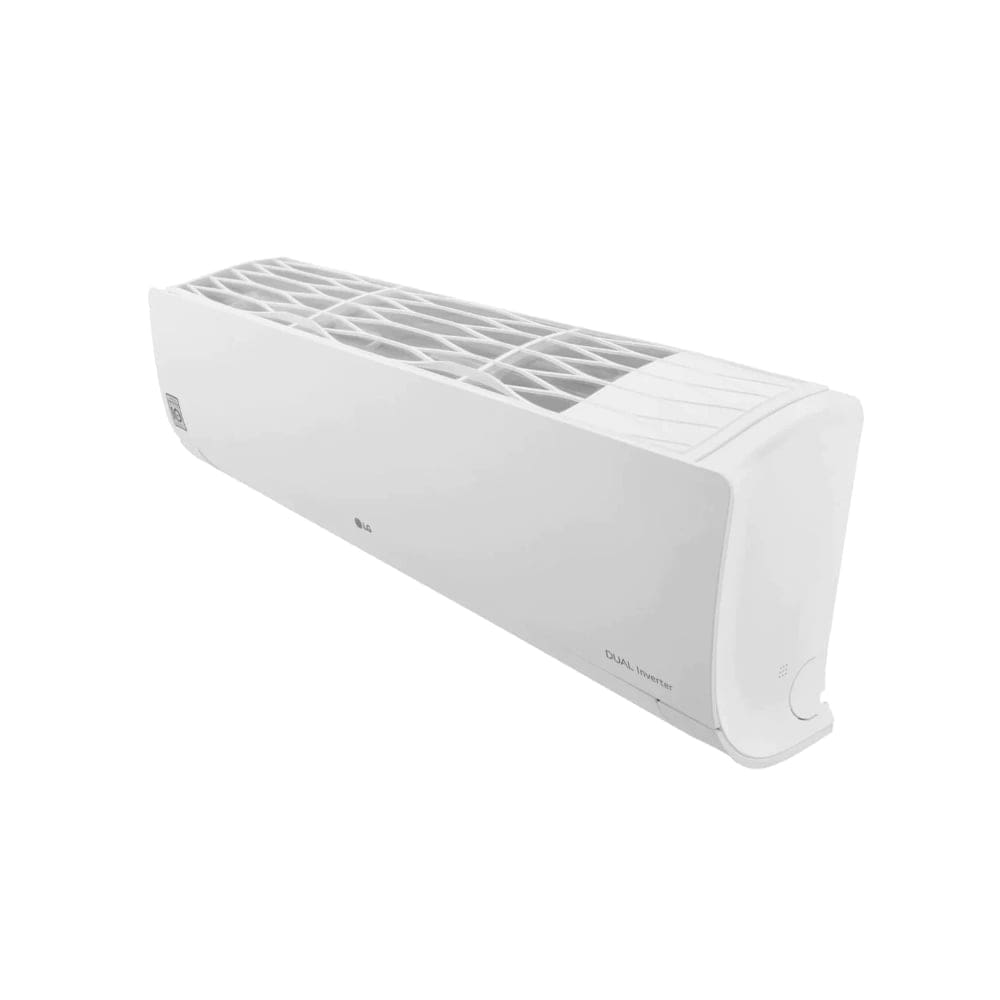

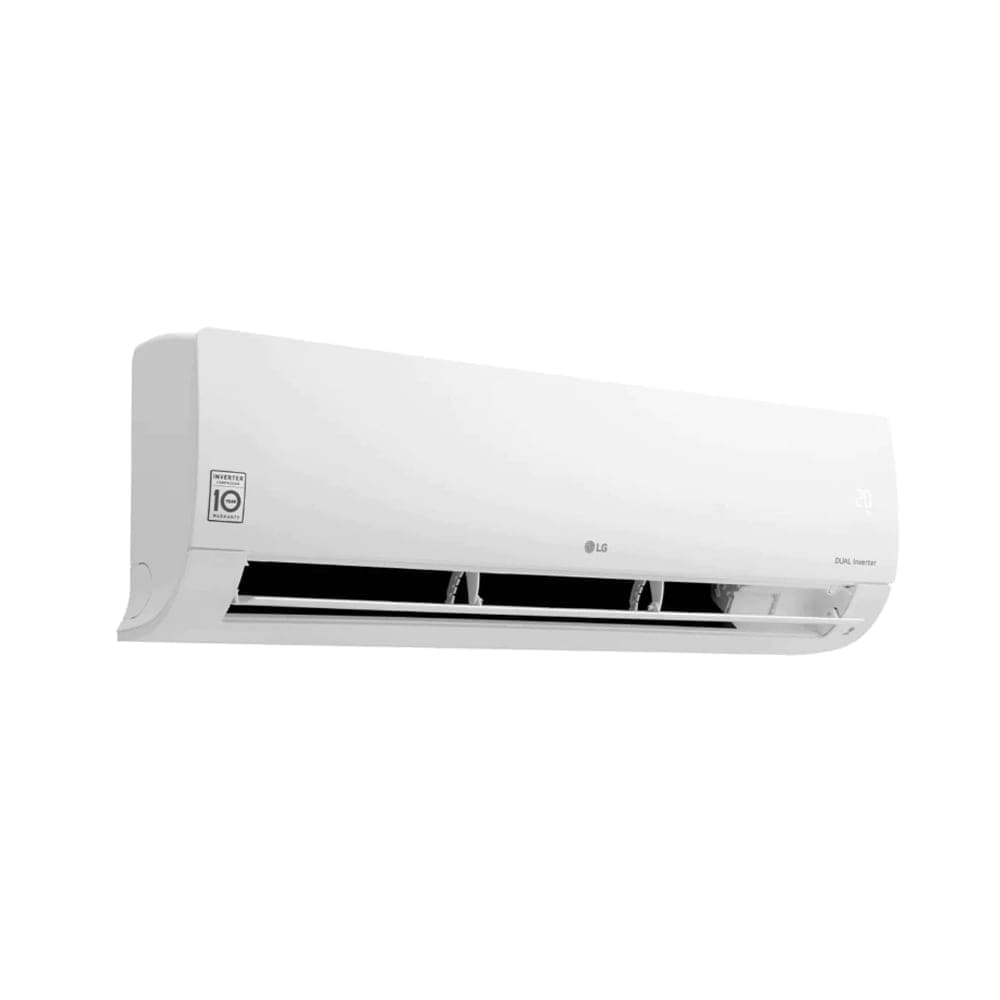

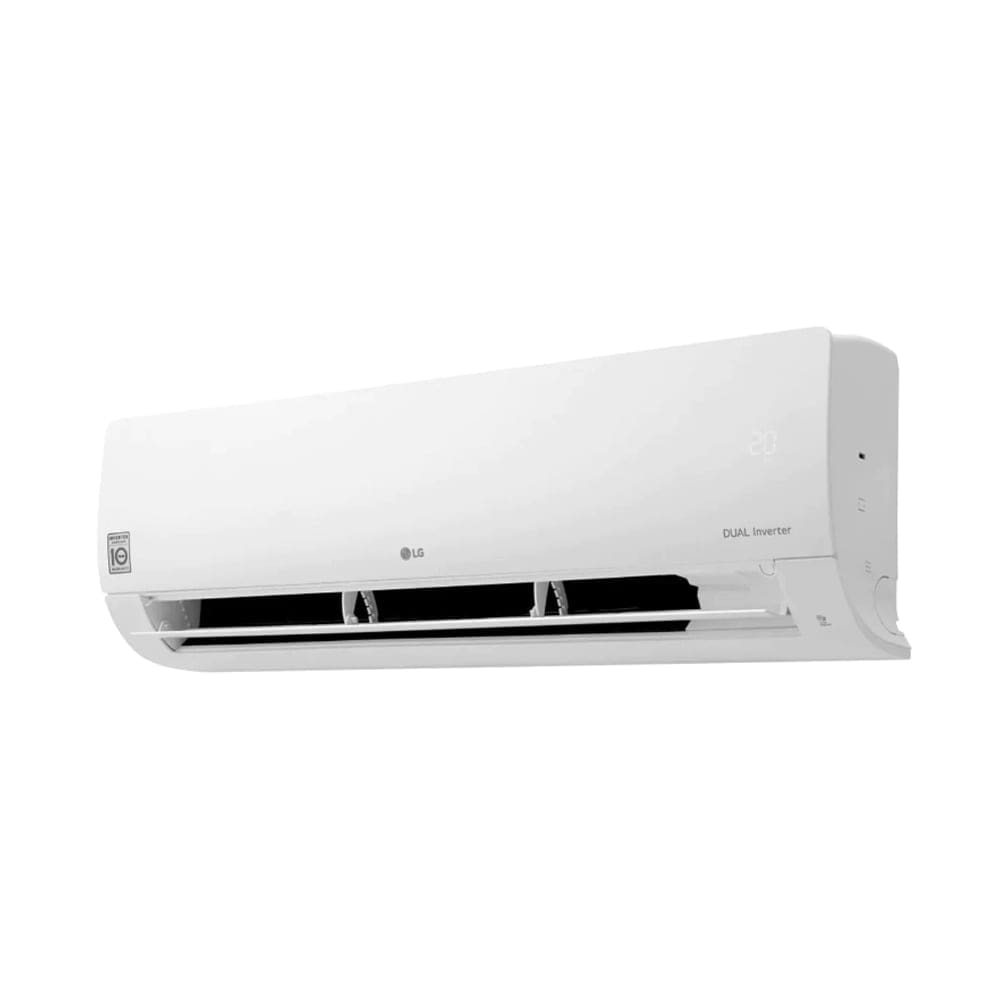

LG 2.5 HP, Dual Inverter Compressor Split Type Aircon HS24ISY2

Description

Capacity

• Cooling (Min ~ Rated ~ Max)

– 6.30 kW

– 21,500 Btu/h

– 22,683 kJ/h

• Capacity: 2.5HP

Power Input

• Cooling (Min ~ Rated ~ Max): 1,850 W

Running Current

• Cooling (Min ~ Rated ~ Max): 8.50 A

EER

• 3.41 W/W

• 11.62 (Btu/h)/W

• 12.26 (kJ/h)/W

Power Supply

• Power Supply: 1, 230, 60 (Ø, V, Hz)

• Available Voltage Range: 187 ~ 276 V

• Power Factor – Cooling: 97.2%

• Moisture Removal

– 2.80 l/h

– 5.92 pts/h

• Circuit Breaker: 30 A

• Power Supply Cable: 3 × 1.5 No. × mm²

• Power Supply to Unit: Indoor

• Power and Communication Cable: 4 × 1.5 No. × mm²

Indoor Unit

•Air Flow Rate – Cooling, Max/H/M/L

– 20/15/12.5/10.6 m³/min

– 706/530/441.5/374 CFM

• Fan Motor Speed – Cooling, Max/H/HM/M/ML/L/SL: 1600/1200/1100/1000/920/850/700 rpm

• Sound Pressure Level – Cooling, Max/H/M/L/SL: -/47/41/37/32 dB(A)

• Dimensions (W × H × D) – Net: 998 x 345 x 210 mm

• Dimensions (W × H × D) – Shipping: 1068 x 425 x 279 mm

• Weight – Net: 11.6kg

• Weight – Shipping: 13.4kg

• Disconnect Switch: 30 A

• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)

• Operation Range – Cooling

– 16 ~ 32 °C DB

– 61 ~ 90 °F DB

– 10 ~ 23 °C WB

– 50 ~ 73.4 °F WB

Outdoor Unit

• Air Flow Rate – Max

– 49.0 m³/min

– 1730 CFM

• Sound Pressure Level – Cooling, Rated: 55 dB(A)

• Dimensions (W × H × D) – Net: 870 x 650 x 330 mm

• Dimensions (W × H × D) – Shipping: 1040 x 710 x 455 mm

• Weight – Net: 42.5kg

• Weight – Shipping: 45.9kg

• Max. Fuse Size: 20A

• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)

• Operation Range – Cooling: 18 ~ 48 °C DB

Piping

• Size – Liquid ø 6.35 mmSize – Gas: ø 15.88 mm

• Connections Method – Indoor/Outdoor: Flared/Flared

• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm

• Max Piping Length Capacity: 94.8%

Between Indoor & Outdoor

• Piping Length – Min/Standard/Max: 3/7.5/30 m

• Piping Length – No Charge: 12.5 m

• Max. Elevation Difference: 20m

• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant

• Type R32Pre Charge: 1150g

• Additional Charge: 20g/m

• Control: Electronic Expansion Valve

• Global Warning Potential: 675

• t-CO₂ eq: 0.776

Tool Code (Chassis)

• Indoor / Outdoor: SK / U24A

Compressor

• Type: Twin Rotary

• Model: DAT156MAD

• Motor Type: BLDC

• Oil Type / Maker: PVE (FW68D) / IDEMITSU

• Oil Charge: 400cc

• Manufacturer / Country of Origin: LG Electronics / China

Fan (Indoor)

• Type: Cross Flow Fan

• Motor Output: 30W

FAN (Outdoor)

• Type: Propeller Fan

• Motor Type: BLDC

• Motor Output: 85W

• Motor Insulation: Class E

• Motor Enclosure / Ingress Protection: TEAO/IPX4

Heat Exchanger

• Evaporator – Material, Tube / Fin: Cu/Al

• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 16 x 20 x 744) x 1

• Evaporator – Corrosion Protection: PCM

• Evaporator – Fin Type: Slit

• Condenser – Material, Tube / Fin: Cu/Al

• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 28 x 18 x 940) x 1

• Condenser – Corrosion Protection: Gold

• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindanao
