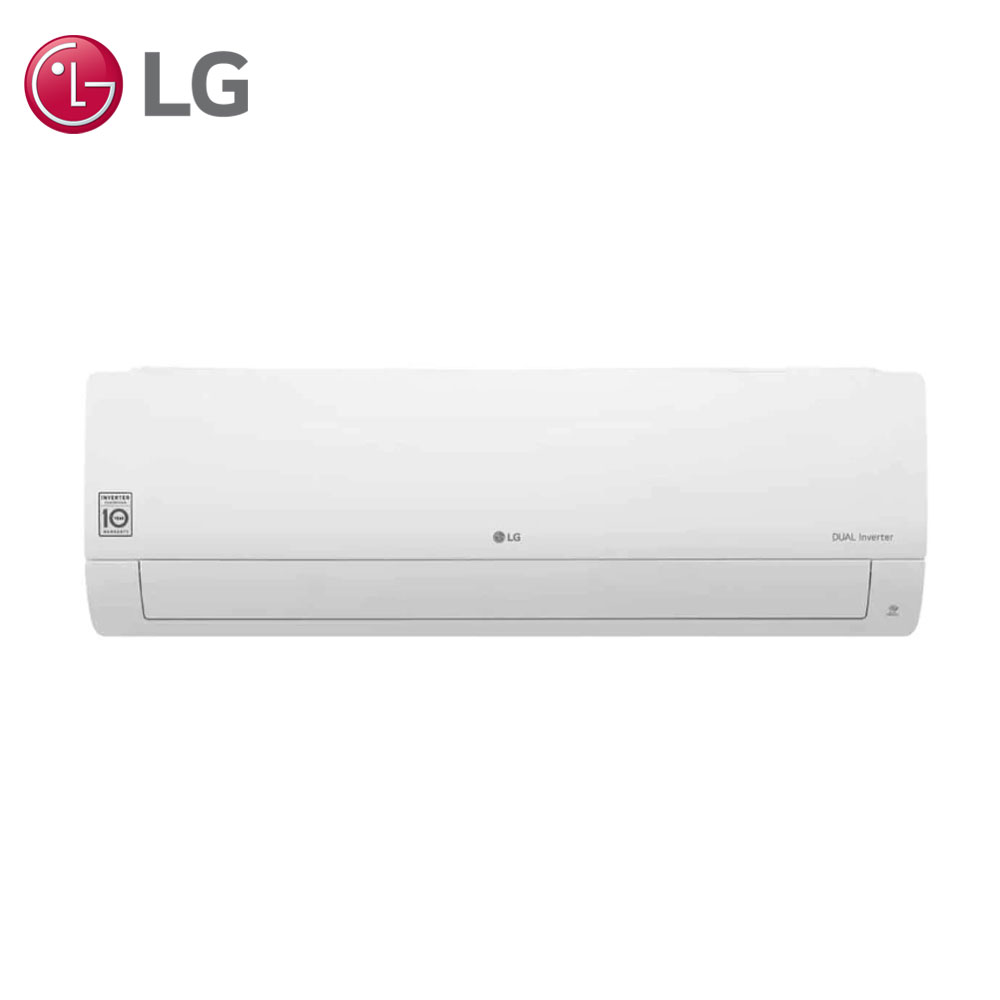

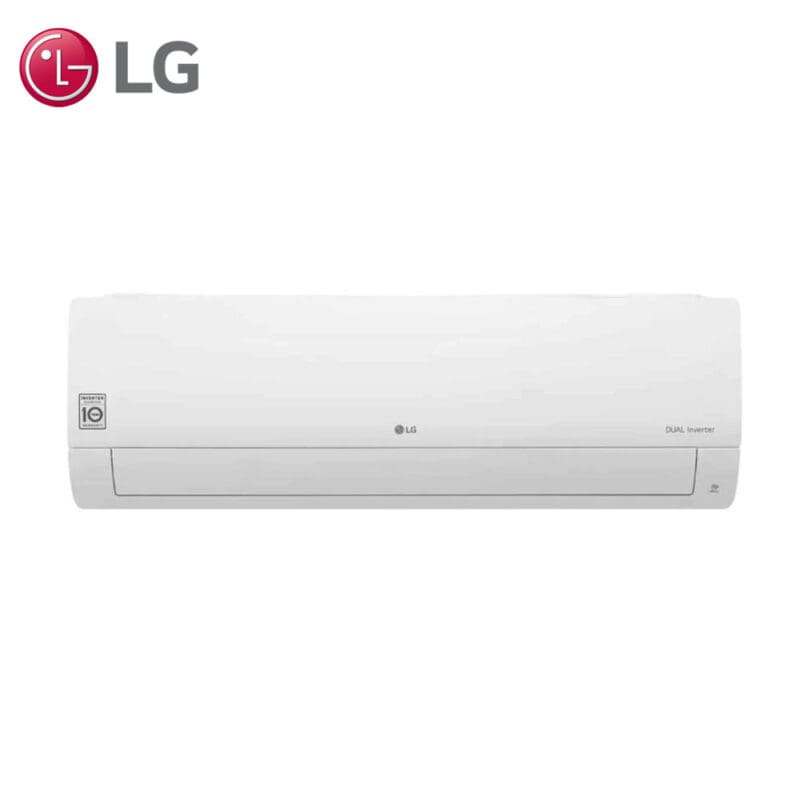

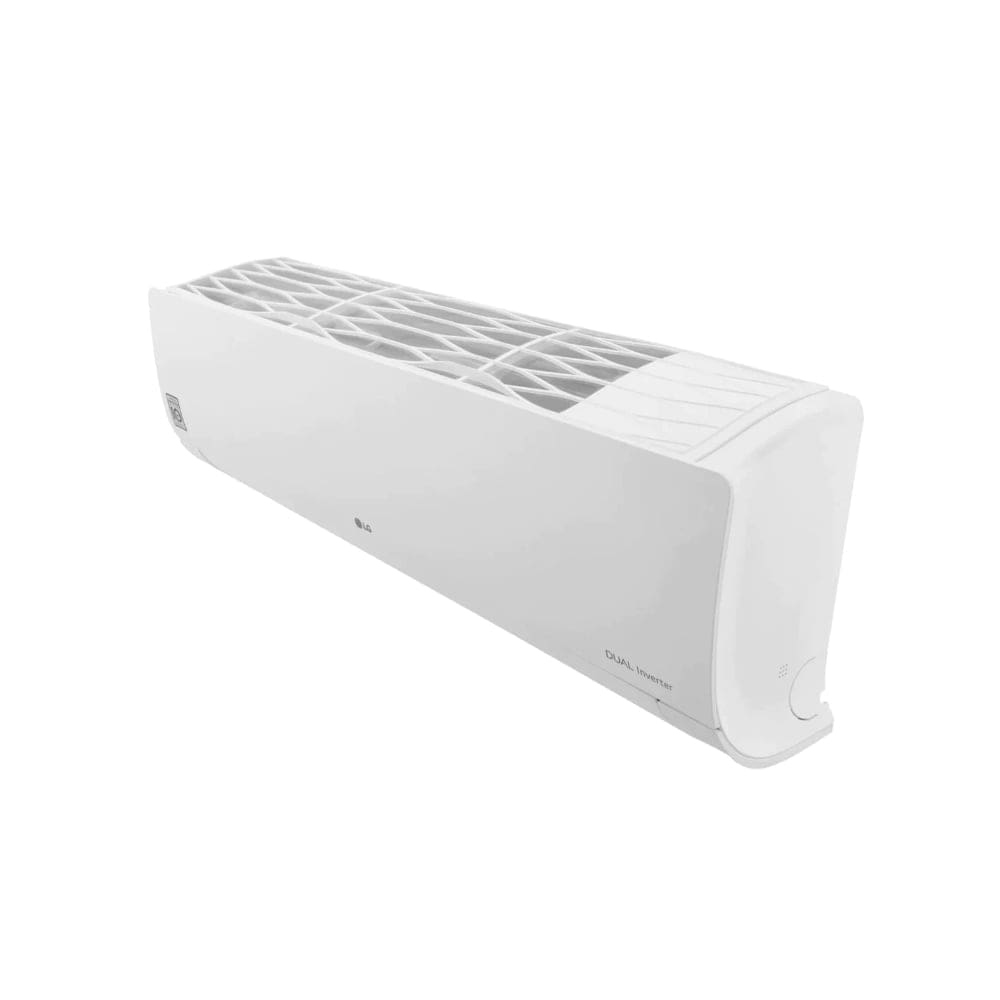

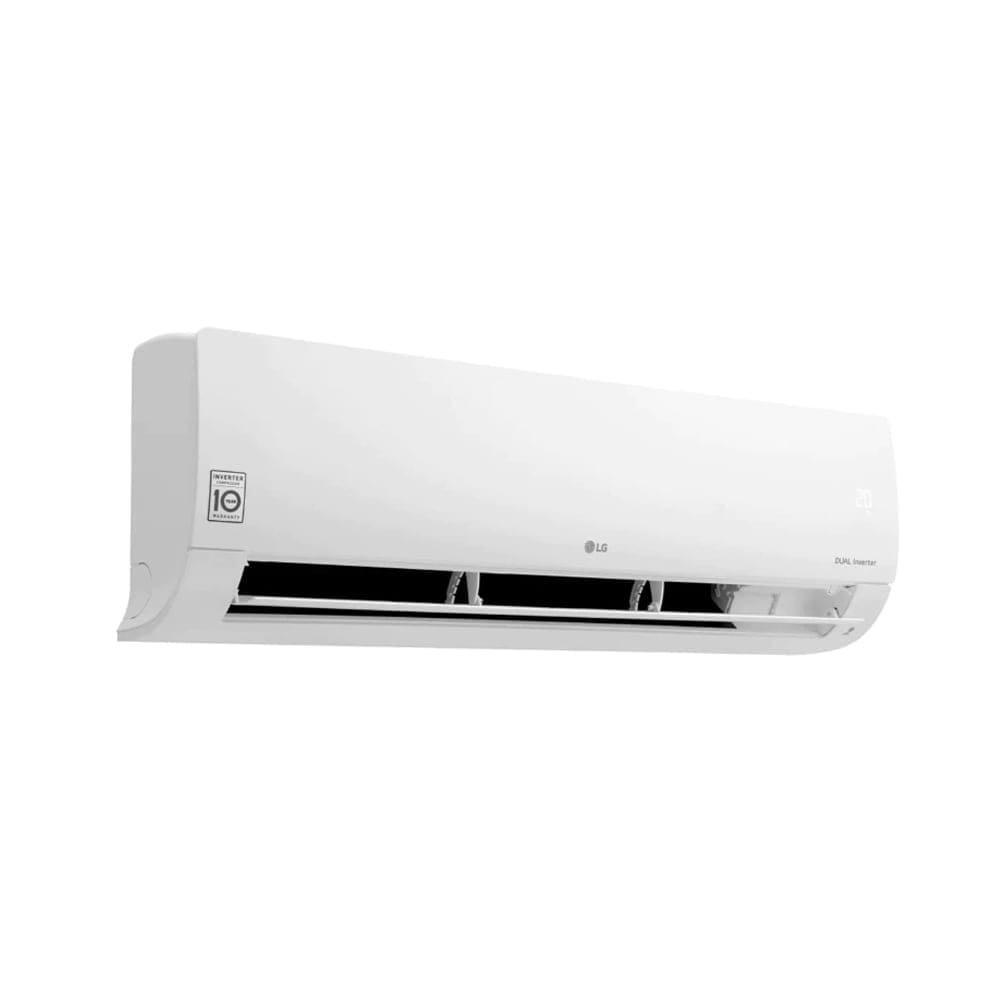

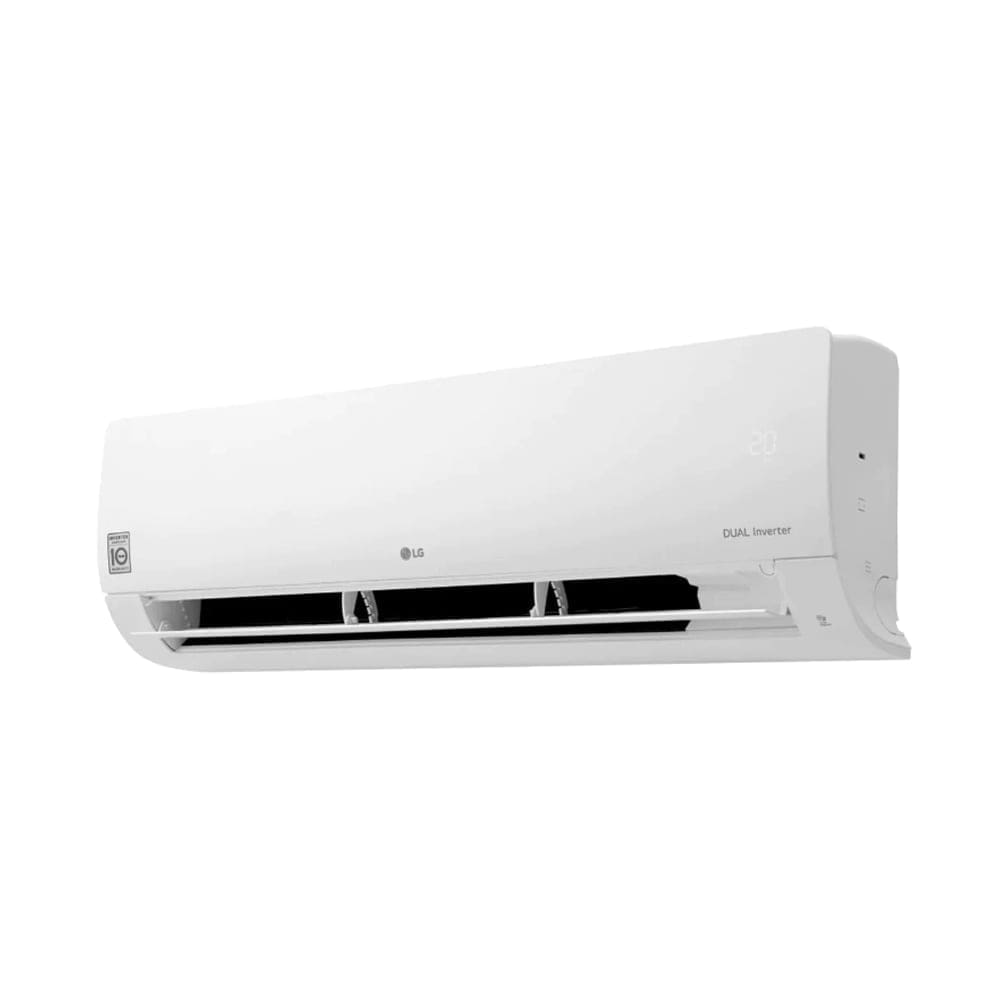

LG 2.0 HP, Dual Inverter Compressor Split Type Aircon HS18ISY2

Capacity

• Cooling (Min ~ Rated ~ Max)

– 5.28 kW

– 18,000 Btu/h

– 18,990 kJ/h

• Capacity: 2.0HP

Power Input

• Cooling (Min ~ Rated ~ Max): 1,540 W

Running Current

• Cooling (Min ~ Rated ~ Max): 7.10 A

EER

• 3.43 W/W

• 11.69 (Btu/h)/W

• 12.33 (kJ/h)/W

Power Supply

• Power Supply: 1, 230, 60 (Ø, V, Hz)

• Available Voltage Range: 187 ~ 276 V

• Power Factor – Cooling: 94%

• Moisture Removal: 1.25 l/h / 2.64 pts/h

• Circuit Breaker: 25 A

• Power Supply Cable: 3 × 1.5 No. × mm²

• Power Supply to Unit: Indoor

• Power and Communication Cable: 4 × 1.5 No. × mm²

Indoor Unit

• Air Flow Rate – Cooling, Max/H/M/L

– 18/12.7/10.2/8.4 m³/min

– 635.7/448.5/360.2/296.6

• CFMFan Motor Speed – Cooling, Max/H/HM/M/ML/L/SL: 1500/1150/1050/950/860/770/700 rpm

• Sound Pressure Level – Cooling, Max/H/M/L/SL: -/45/40/37/32 dB(A)

• Dimensions (W × H × D) – Net: 998 x 345 x 210 mm

• Dimensions (W × H × D) – Shipping: 1068 x 425 x 279 mm

• Weight – Net: 11.2kg

• Weight – Shipping: 13.2kgDisconnect Switch 25 A

• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)

• Operation Range – Cooling

– 16 ~ 32 °C DB

– 61 ~ 90 °F DB

– 10 ~ 23 °C WB

– 50 ~ 73.4 °F WB

Outdoor Unit

• Air Flow Rate –

– Max31.0 m³/min

– 1095 CFM

• Sound Pressure Level – Cooling, Rated: 53 dB(A)

• Dimensions (W × H × D) – Net: 770 x 545 x 288 mm

• Dimensions (W × H × D) – Shipping: 920 x 588 x 393 mm

• Weight – Net: 32.5kg

• Weight – Shipping: 34.8kg

• Max. Fuse Size: 15 A

• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)

• Operation Range – Cooling 18 ~ 48 °C DB

Piping

• Size – Liquid: ø 6.35 mm

• Size – Gas: ø 12.7 mm

• Connections Method – Indoor/Outdoor: Flared/Flared

• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm

• Max Piping Length Capacity: 98.7%

Between Indoor & Outdoor

• Piping Length – Min/Standard/Max: 3/7.5/30 m

• Piping Length – No Charge: 12.5 m

• Max. Elevation Difference: 20m

• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant

• Type: R32

• Pre Charge: 950g

• Additional Charge: 15g/m

• Control: Capillary

• Global Warning Potential: 675

• t-CO₂ eq: 0.641

Tool Code (Chassis)

• Indoor / Outdoor: SK / UL2

Compressor

• Type: Twin Rotary

• Model: DAT156MAD

• Motor Type: BLDC

• Oil Type / Maker: PVE (FW68D) / IDEMITSU

• Oil Charge: 400cc

• Manufacturer / Country of Origin: LG Electronics / China

Fan (Indoor)

• Type: Cross Flow Fan

• Motor Output: 30W

FAN (Outdoor)

• Type: Propeller Fan

• Motor Type: BLDC

• Motor Output: 43W

• Motor Insulation: Class E

• Motor Enclosure / Ingress Protection: TEAO/IPX4

Heat Exchanger

• Evaporator – Material, Tube / Fin: Cu/Al

• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 16 x 20 x 744) x 1

• Evaporator – Corrosion Protection: PCM

• Evaporator – Fin Type: Slit

• Condenser – Material, Tube / Fin: Cu/Al

• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 24 x 18 x 823) x 1

• Condenser – Corrosion Protection: Gold

• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindnao
