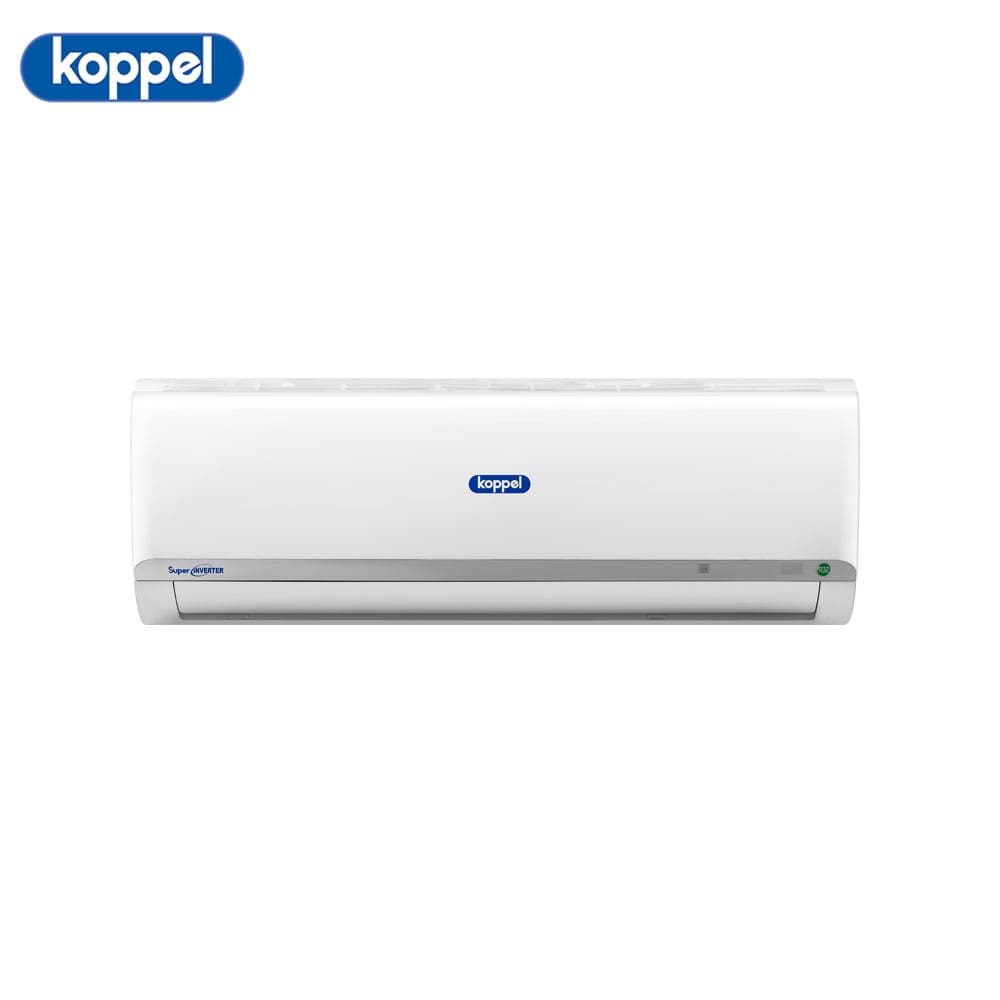

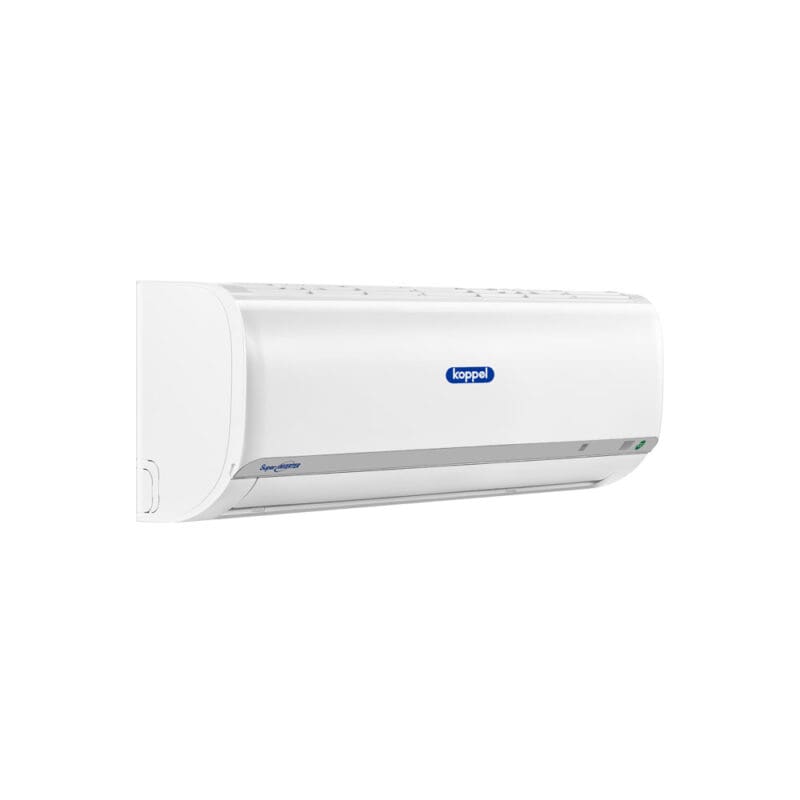

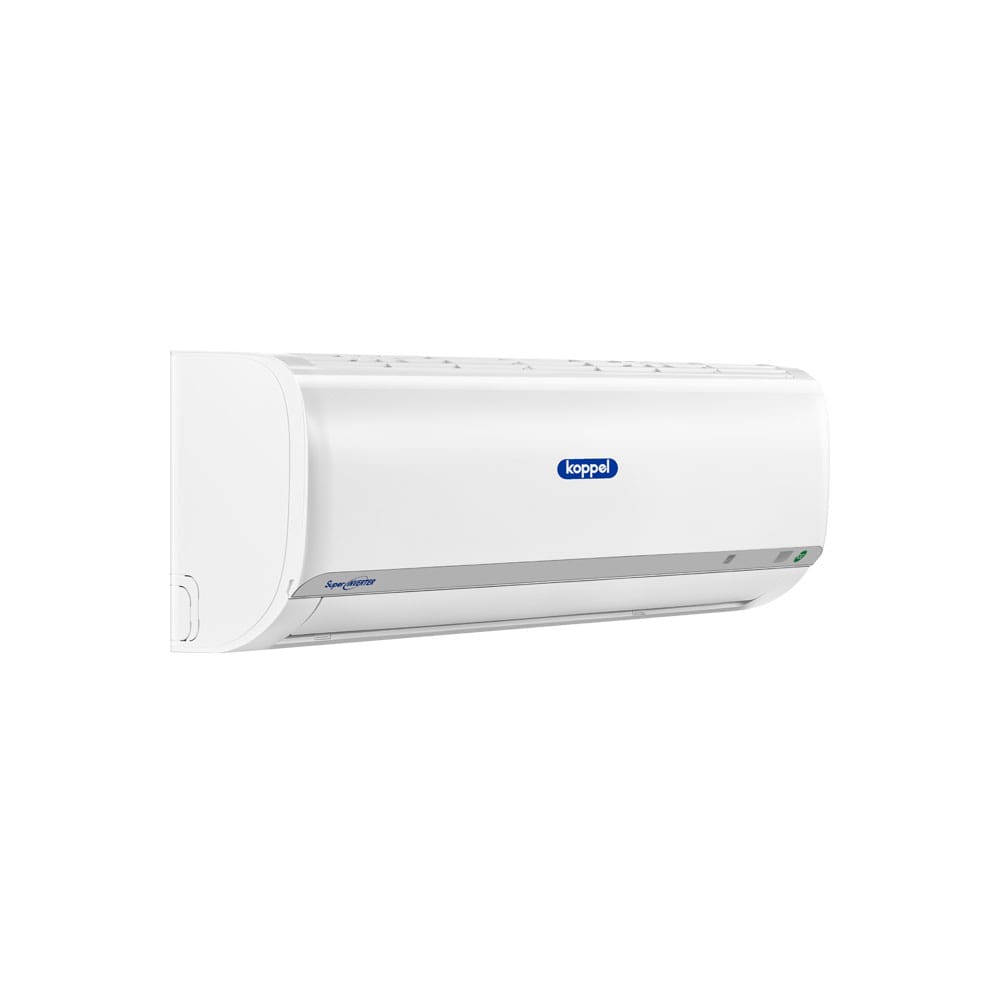

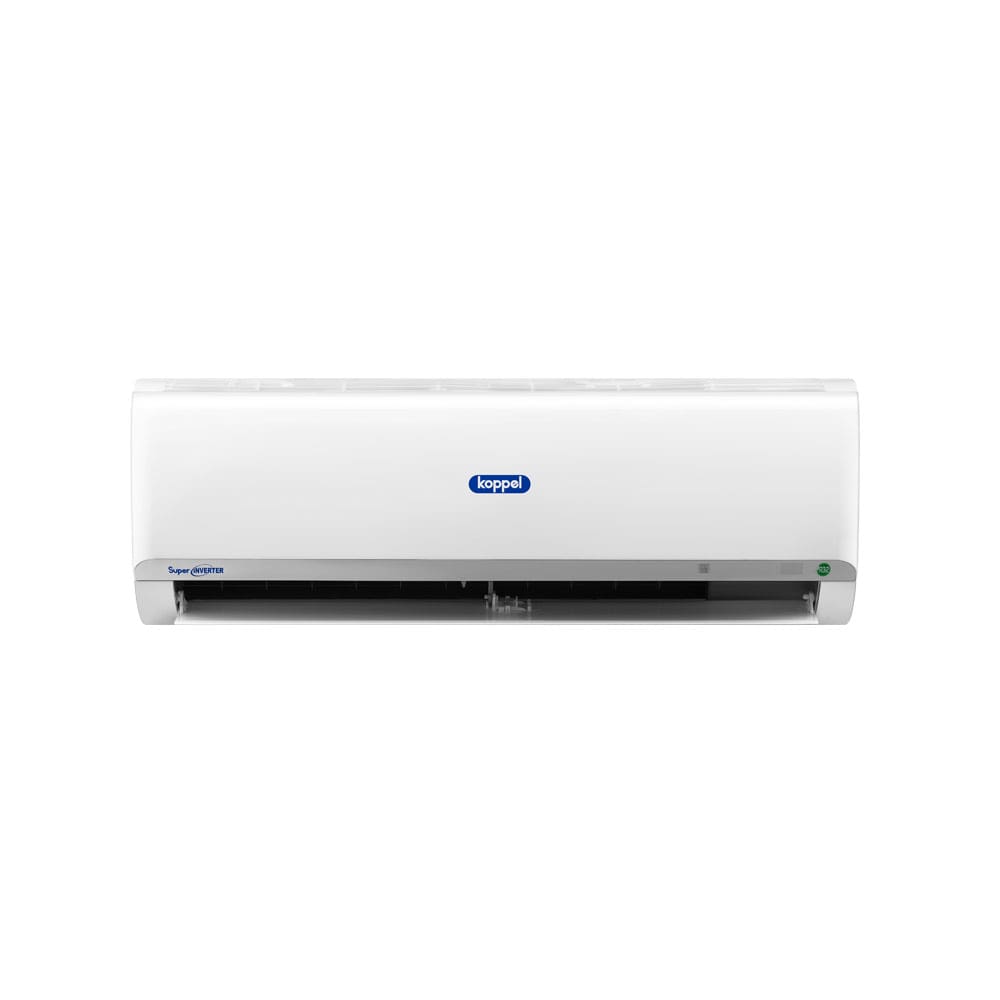

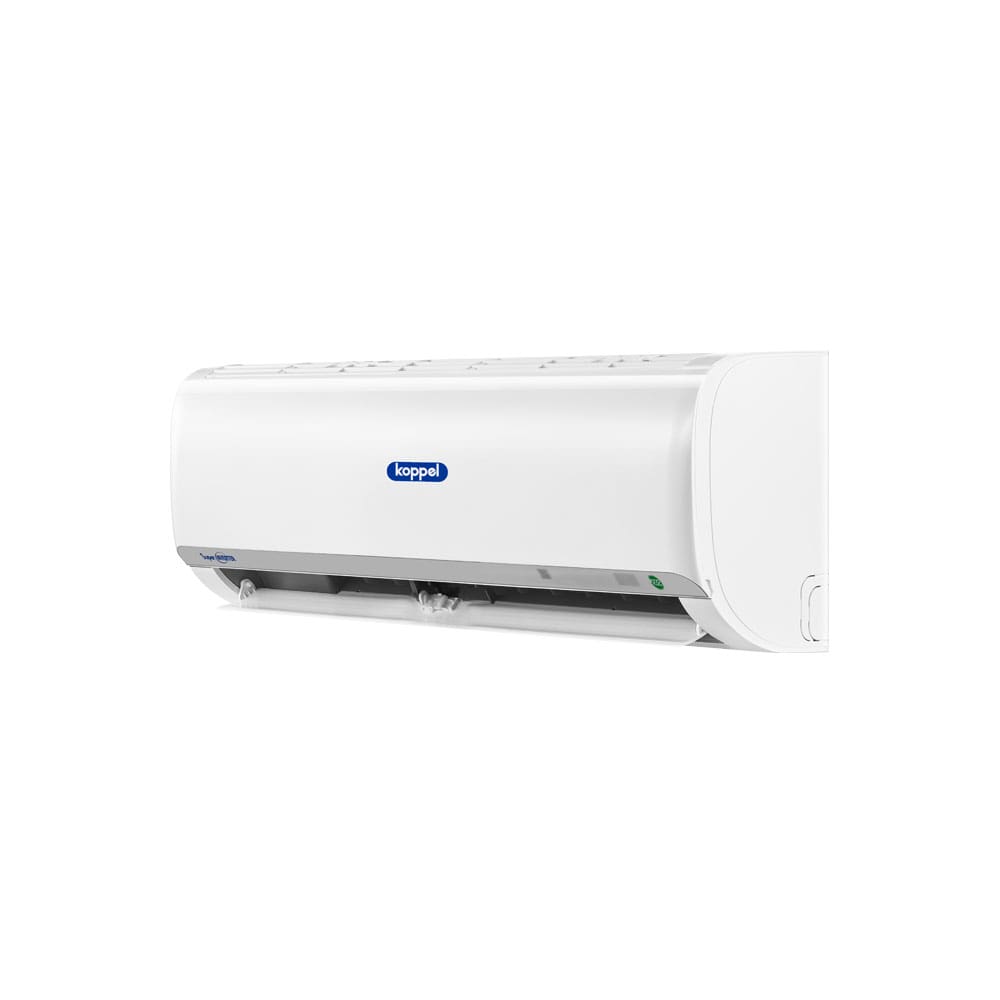

Koppel 1.0Hp Split Type Full DC Inverter Aircon KV09WM-ARF31D

Description

Koppe Aircon KV09WM-ARF31D
• Cooling Capacity
– HP: 1.0
– Btu/h (Min-Max): 9700(4805-10986)
– kJ/h (Min-Max): 10234 (5069-11590)
• Power Supply (V/Hz/Ph): 230/60/1
• Rated Power (W): 720
• Rated Current (A): 4.8
• EER
– btu/hW: 13.5
– kJ/hW: 14.2
• Refrigerant: R32
• Operation: 17-30°C
• Applicable Area (Unloaded Space): 12-18sqm
• Airflow Volume (Hi/Med/Low): 544/456/367 m³h
• Noise Level (Low): 28dB(A)
• Indoor
– Unit Dimension (W x D x H): 802 x 189 x 297mm
– Packaging Dimension (W x D x H): 875 x 285 x 380mm
– Unit Weight (Net/Gross): 8.7/11.1Kg
• Outdoor
– Unit Dimension (W x D x H): 681 x 285 x 434mm
– Packaging Dimension (W x D x H): 795 x 345 x 505mm
– Unit Weight (Net/Gross): 18.9/20.9Kg
• Piping Connections
– Liquid Pipe Size (Diameter): Ø6.35 (Ø1/4)
– Gas Pipe Size (Diameter): Ø9.52 (Ø3/8)
– Max. Refrigerant Pipe Length: 25m
– Max Difference in Level: 10m

Note: Available in Visayas and Mindanao areas.
