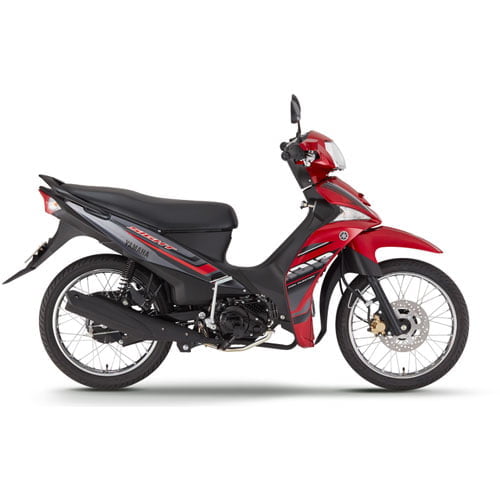

Yamaha Motorcycle Sight 1FDS

Description

Engine
• Engine type: Air-cooled 4-stroke, SOHC, 2-valve
• Cylinder layout: Single Cylinder
• Displacement: 114cc
• Bore x Stroke: 50.0 x 57.9 mm
• Compression Ratio: 9.3:1
• Maximum Output: 6.4 kW (8.7 PS) / 7,000 r/min
• Maximum Torque: 9.5 N?m (1.0 kgf?m) / 5,500 r/min
• Starter System: Electric/Kick Starter
• Lubrication system: Wet sump
• Fuel Supply System: Fuel Injection
• Primary/Secondary Reduction Ratio: 2.900(58/20) / 2.929(41/14)
• Transmission/ Shift type: Constant mesh 4-speed
• Gear Ratio: 1st: 2.833 (34/12), 2nd:1.875 (30/16), 3rd:1.353 (23/17), 4th : 1.045 (23/22)
• Clutch Type: Wet, centrifugal, shoe and multiple-disc

Dimension
• Overall length/width/height: 1,940 mm X 715 mm x 1,075 mm
• Wheelbase: 1,235 mm
• Mininum ground clearance: 155 mm
• Seat height: 775 mm
• Weight (with oil and full fuel tank): 96 kg
• Fuel Tank Capacity: 4L
• Engine oil capacity: 1L

Framework
• Suspensions (Front/Rear): Telescopic / Swingarm
• Tire size (front/rear): 70/90-17 M/C 38P (Tube type) / 80/90-17 M/C 44P (Tube type)
• Brakes (front/rear): Hydraulic single disc brake / Mechanical leading trailing drum brake
• Frame Type: Backbone

Electrical
• Ignition system: TCI (Transistor Controlled Ignition)
• Battery Type: 12V / 3Ah / NTZ4V

Note: Available in Visayas and Mindanao only

* Price inclusive of Credit Card and Bank Charge
