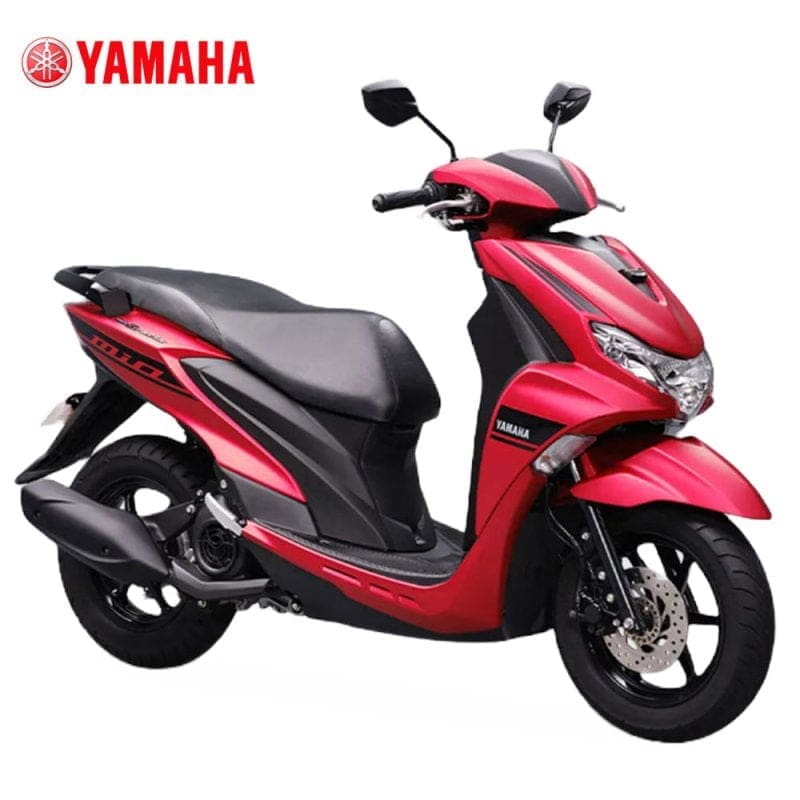

Yamaha Motorcycle Mio Gravis

Description

ENGINE
• Engine type: Air cooled, 4-stroke, SOHC, 2-valve
• Cylinder arrangement: Single Cylinder
• Displacement: 125cm³
• Bore & stroke: 52.4 x 57.9mm
• Compression ratio: 9.5:1
• Maximum horse power: 7.0kW(9.5PS)/8000r/min
• Maximum torque: 9.5N・m(1.0kgf・m)/5500r/min
• Starting system: Electric starter and kickstarter
• Lubrication system: Wet sump
• Engine oil capacity: 0.84L
• Fuel supply system: Fuel injection
• Clutch type: Dry, centrifugal, shoe
• Transmission type: V-belt automatic

CHASIS
• Frame type: Underbone
• Front suspension: Telescopic fork
• Rear suspension: Unit swing
• Front tire: 100/90-12 59J Tubeless
• Rear tire: 110/90-12 64L Tubeless
• Front brake: Hydraulic single disc brake
• Rear brake: Mechanical leading trailing drum brake

DIMENSION
• Overall length x width x height: 1905mm x 690mm x 1110mm
• Seat height: 780mm
• Wheelbase: 1275mm
• Minimum ground clearance: 135mm
• Wet weight (with oil and a full fuel tank): 100kg
• Fuel tank capacity: 4.2L

ELECTRICAL
• Ignition system type: TCI(transistor controlled ignition)
• Battery: YTZ4V / GTZ4V / NTZ4V
• Headlight: LED
• Tail light: 12V,21/5W x 1,12V,21/5Wx1

STANDARD EQUIPMENT
• Meter panel: Digital
• Electric power socket: Equipped
• Smart front refuel: Equipped
• Smart motor generator: Equipped

Note: Available in Visayas and Mindanao
