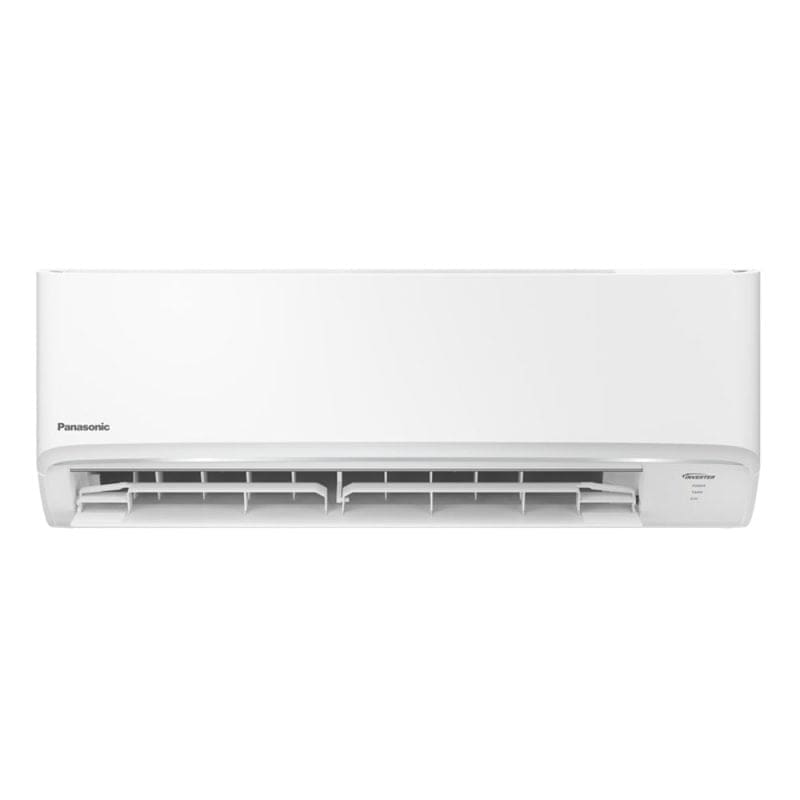

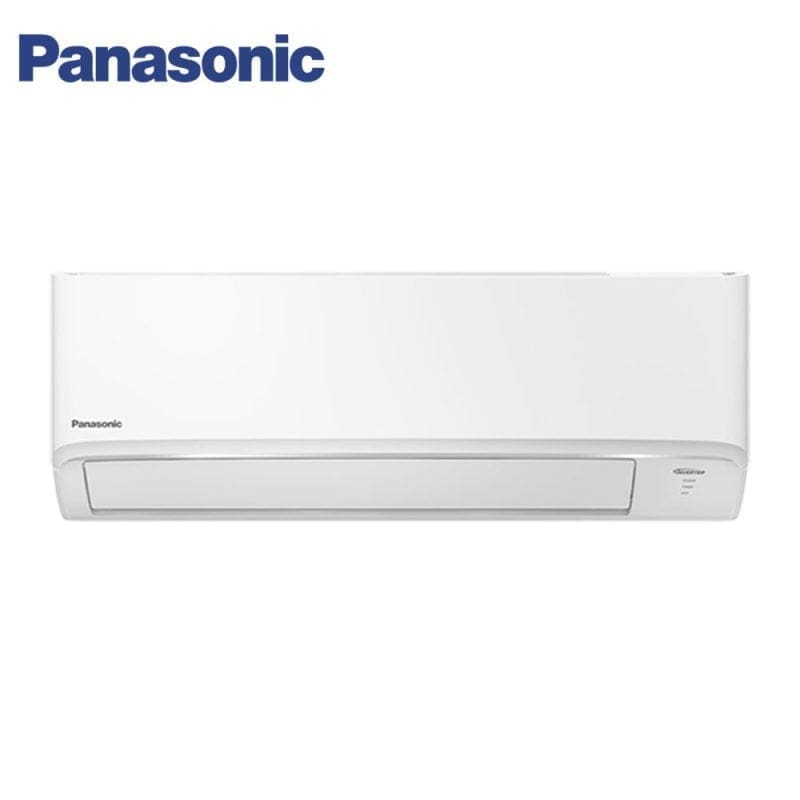

Panasonic 2HP Standard Inverter Split Type Aircon CS/CU-PU18WKQ

Description

Cooling Capacity
• (min-max):kW: 5.00 (1.10-5.40)
• (min-max):kJ/h: 18,000 (3,960-19,440)

EER
• (min-max):kJ/hW: 11.61 (13.66-10.80)

Electrical Data
• Voltage:V:230
• Current:A:7
• Power Input (min-max): W: 1,550 (290-1,800)

Moisture Removal
• L/h: 2.8
• Pt/h: 5.9

Air Circulation
• Indoor: m3/min (ft3/min): 12.6 (445)
• Outdoor: m3/min (ft3/min):39.3 (1,390)

Noise Level
• Indoor (H / L / Q-Lo): dB (A): 44/34/28
• Outdoor (H): dB (A): 51

Dimensions Indoor (Outdoor)
Height
– mm:290 (619)
– inch: 11-7/16 (24-3/8)
Width
– mm:779 (824)
– inch:30-11/16 (32-15/32)
Depth
– mm: 209 (299)
– inch: 8-1/4 (11-25/32)

Net Weight
• Indoor: kg (lb): 9 (20)
• Outdoor:kg (lb): 29 (64)

Refrigerant Pipe Diameter
• Liquid Side
– mm: ø 6.35
– inch: 1/4
• Gas Side
– mm:ø 12.70
– inch:1/2

Pipe Extension
• Chargeless Pipe Length: m: 10
• Maximum Pipe Length :m: 30
• Maximum Elevation Length: m:20
• Additional Refrigerant Gas*: g/m: 15

• Power Supply: Outdoor

Note: Available in Visayas and Mindanao.
