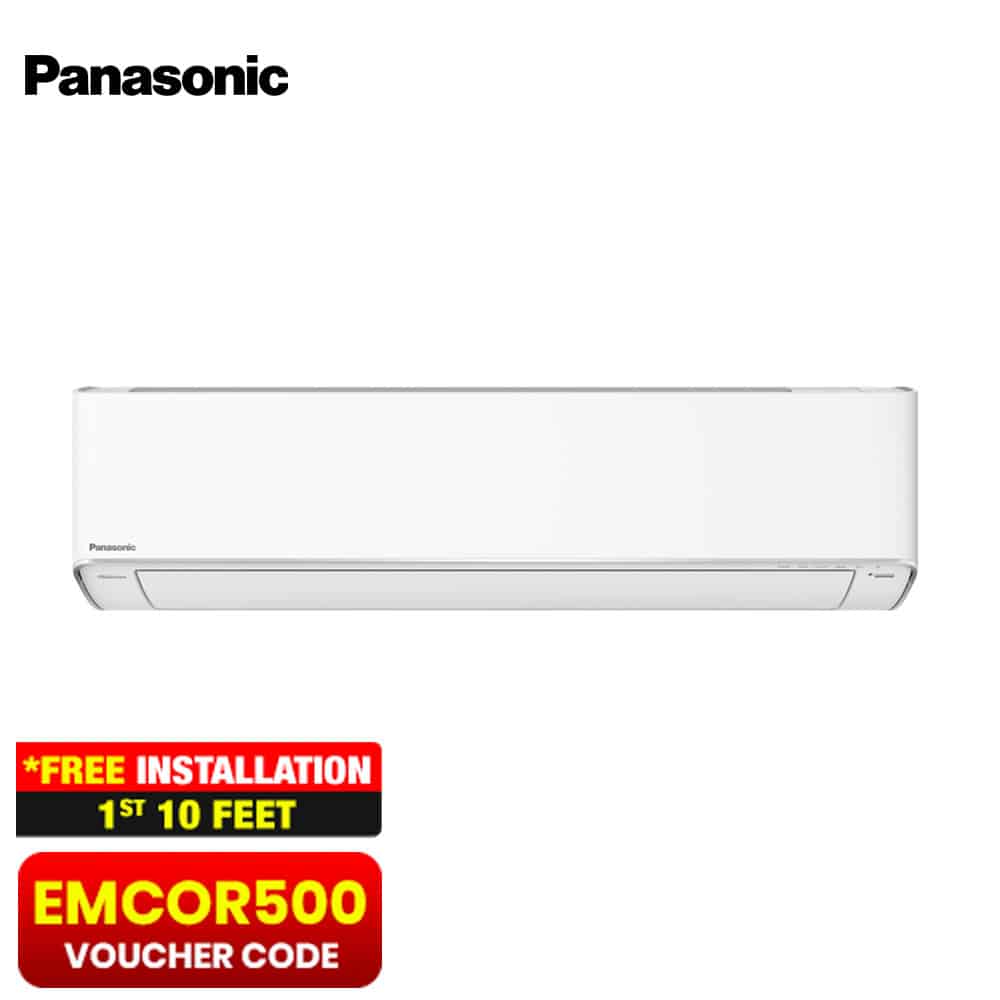

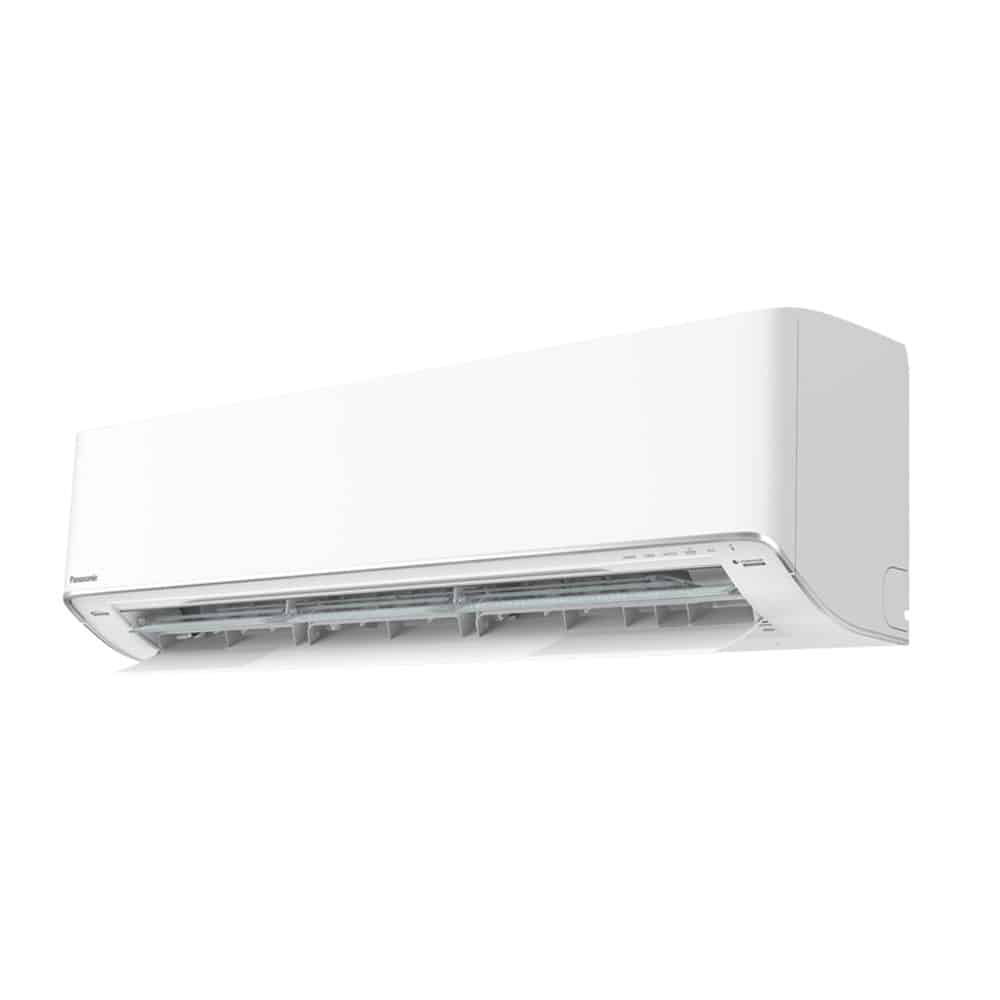

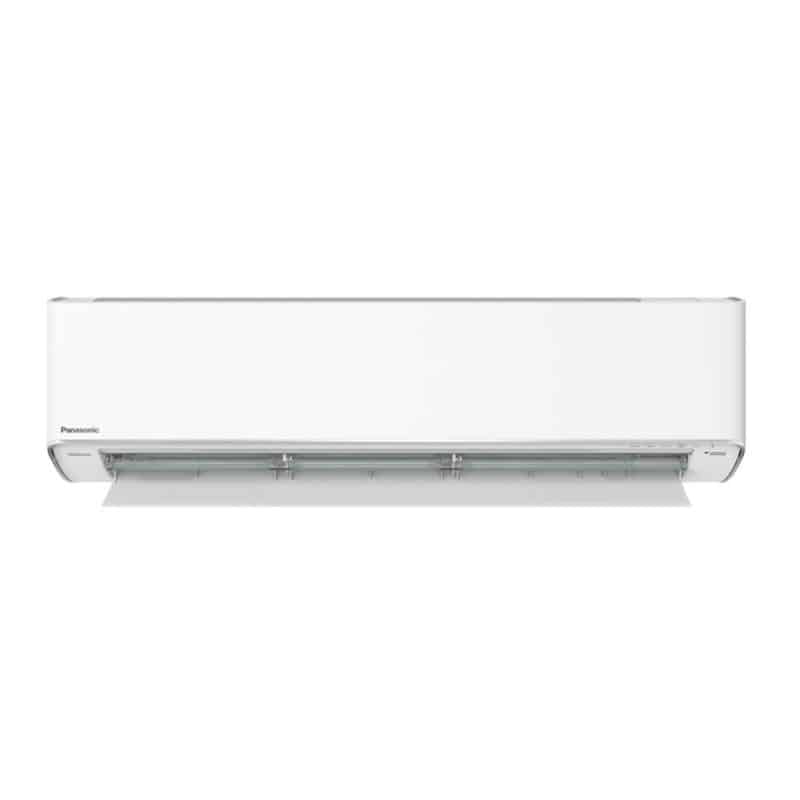

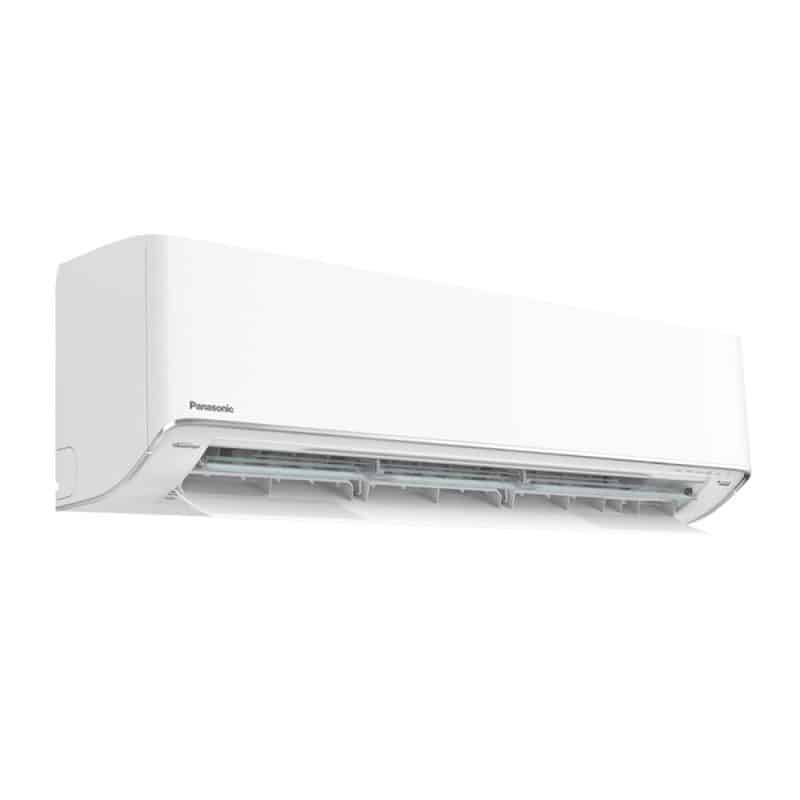

Panasonic 2.0 HP Wall Mounted Split Type Inverter CS/CU-XU18XKQ

Description

Cooling Capacity (min-max)
• 5.30 (1.10-6.21) kW
• 19,080 (3,960-22,360) kJ/h

EER (min-max)
• 15.14 (15.84-13.15) kJ/hW

Electrical Data
• Voltage: 230 V
• Current: 5.7 A
• Power Input (min-max): 1,260 (250-1,700) W

Moisture Removal
• 2.9 L/h
• 6.1 Pt/h

Air Circulation
• Indoor: 18.7 m³/min (660 ft³/min)
• Outdoor: 34.9 m³/min (1,230 ft³/min)

Dimensions (Indoor)
• Height: 295 mm (11-5/8 inch)
• Width: 1,040 mm (40-31/32 inch)
• Depth: 244 mm (9-5/8 inch)

Dimensions (Outdoor)
• Height: 619 mm (24-3/8 inch)
• Width: 824 mm (32-15/32 inch)
• Depth: 299 mm (11-25/32 inch)

Net Weight
• Indoor: 12 kg (26 lb)
• Outdoor: 30 kg (66 lb)

Refrigerant Pipe Diameter
• Liquid Side: ø 6.35 mm (1/4 inch)
• Gas Side: ø 12.70 mm (1/2 inch)

Pipe Extension
• Chargeless Pipe Length: 10 m
• Maximum Pipe Length: 30 m
• Maximum Elevation Length: 20 m
• Additional Refrigerant Gas*: 15 g/m

Power Supply
• Outdoor

Comfort Features
• iAUTO-X: Yes
• Humidity Sensor: Yes
• ECO Mode with A.I.: Yes
• Inverter Control: Yes
• Sleep Mode: Yes
• Quiet Mode: Yes
• Soft Dry Operation Mode: Yes
• Personal Airflow Creation: Yes

Cleaner Air Features
• nanoe™ X: Yes
• nanoe-G: Yes
• Odour Removing Function: Yes
• Removable Washable Panel: Yes

Convenience Features
• 24-Hour Dual ON & OFF Real Setting Timer: Yes
• LCD Wireless Remote Control: Yes
• Wireless LAN Remote Control (For Internet Connection): Yes (Built-in)
• Wired Remote Control: Yes (Optional)

Realibility Features
• Random Auto Restart: Yes (32 Restart Patterns)
• Blue Fin Condenser: Yes
• Long Piping (max.): 30 m
• Top Panel Maintenance Access: Yes
• Self-Diagnostic Function: Yes

Note: Available in Visayas and Mindanao areas
