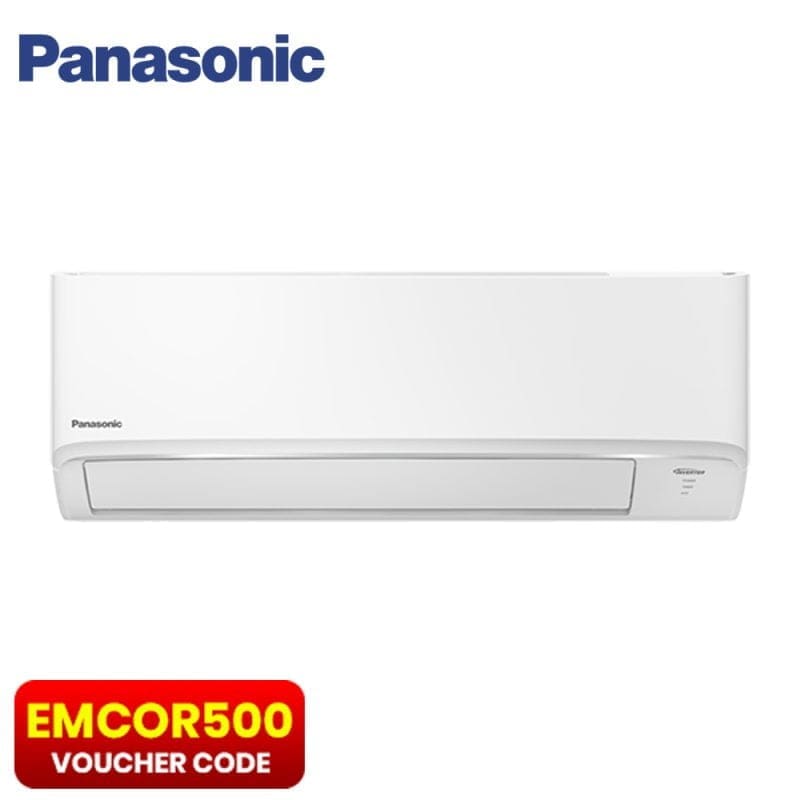

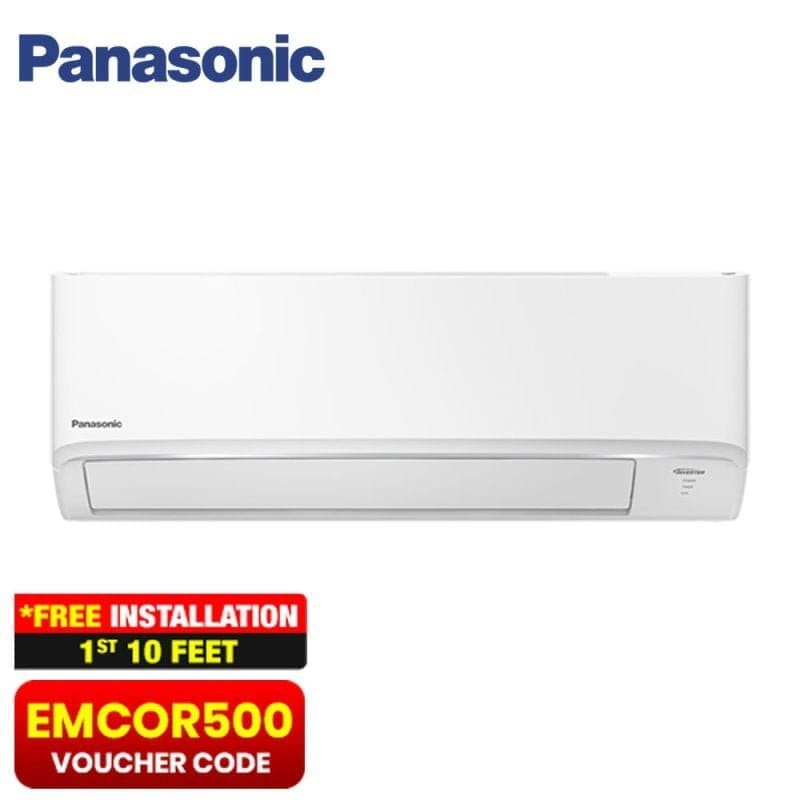

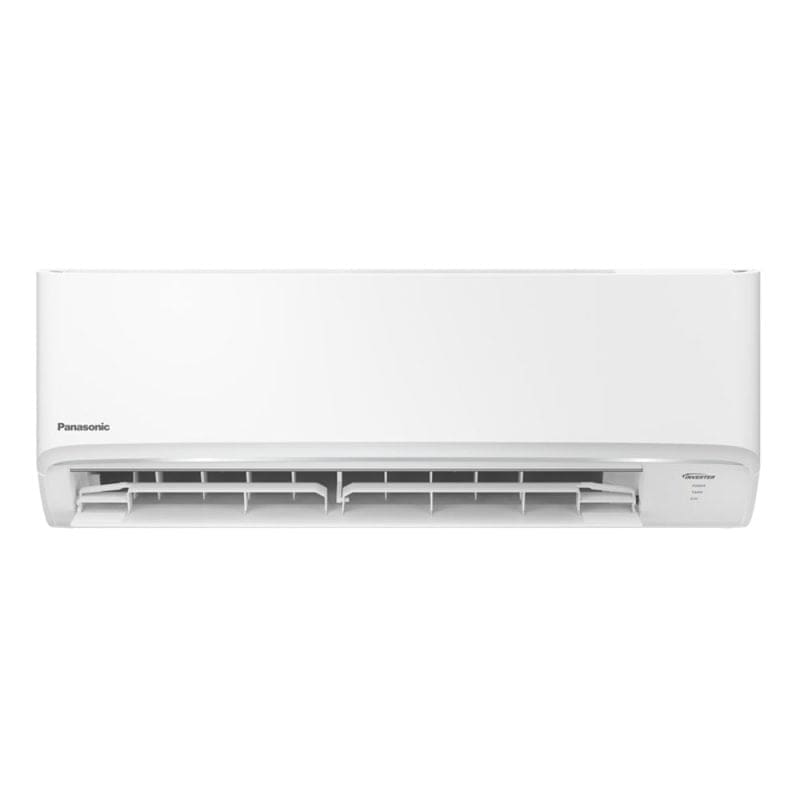

Panasonic 1.5HP Standard Inverter Split Type Aircon CS/CU-PU12WKQ

Description

Cooling Capacity
• (min-max): 3.06 (1.02-3.80) kW
• (min-max): 11,020 (3,670-13,680) kJ/h

EER
• (min-max): 14.69 (14.98-11.69) kJ/hW

Electrical Data
• Voltage: 230 V
• Current: 3.4 A
• Power Input (min-max): 750 (245-1,170) W

Moisture Removal
• L/h: 1.7
• Pt/h: 3.6

Air Circulation
• Indoor m3/min (ft3/min): 10.8 (380)
• Outdoor m3/min (ft3/min): 31.6 (1,120)

Noise Level
• Indoor (H / L / Q-Lo) dB (A): 38/28/21
• Outdoor (H) dB (A): 48

Dimensions
• Indoor (H x W x D): 290 x 779 x 209mm
• Outdoor (H x W x D): 542 x 780 x 289mm

Net Weight
• Indoor kg (lb): 8 (18)
• Outdoor kg (lb): 23 (51)

Refrigerant Pipe Diameter
• Liquid Side: ø 6.35mm ; 1/4in.
• Gas Side: ø 9.52mm; 3/8in.

Pipe Extension
• Chargeless Pipe Length: 7.5m
• Maximum Pipe Length: 20m
• Maximum Elevation Length: 15m
• Additional Refrigerant Gas*: 10 g/m

Power Supply
• Outdoor

Note: Available in Visayas and Mindanao
