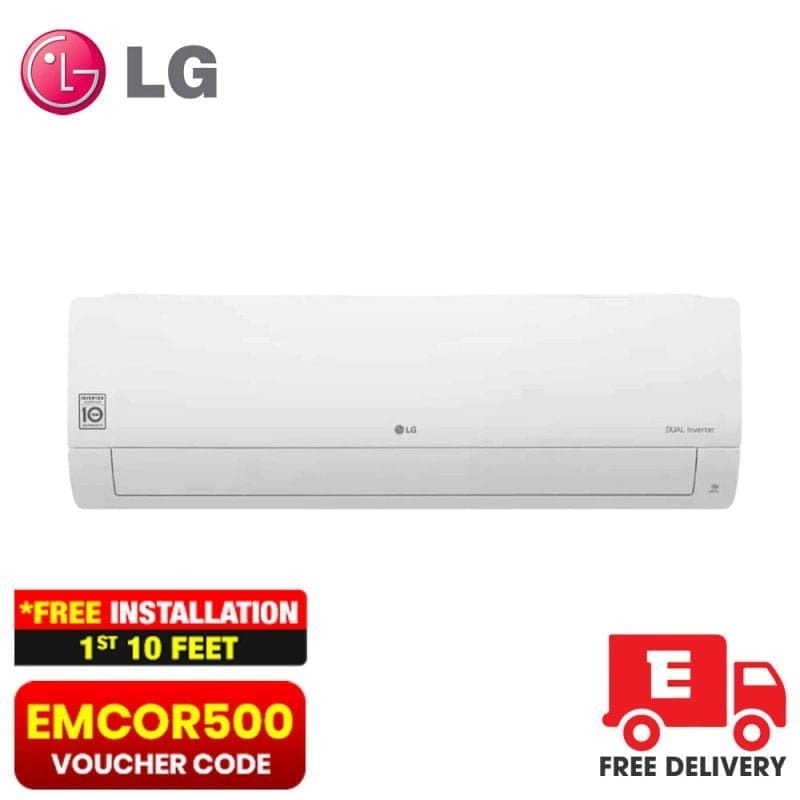

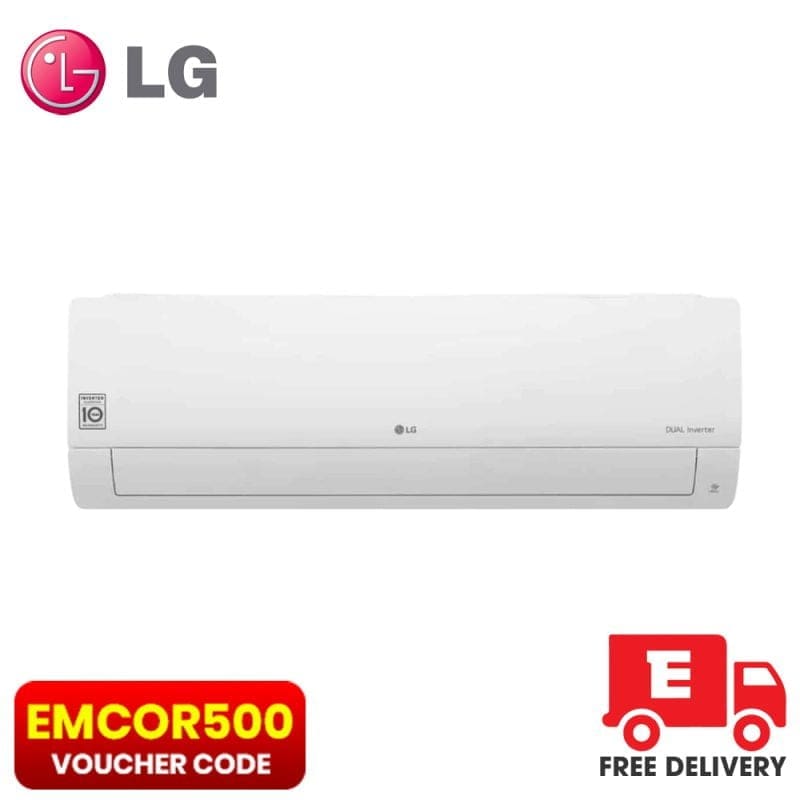

LG 2.0 HP, Dual Inverter Compressor Split Type Aircon HS18ISY

46,588.00

7 in stock

Loading the best price for you

(See if you qualify here)
Apply for Installment

Description

Capacity
• Cooling (Min ~ Rated ~ Max)
– 5.28 kW
– 18,000 Btu/h
– 18,990 kJ/h
• Capacity: 2.0HP

Power Input
• Cooling (Min ~ Rated ~ Max): 1,540 W

Running Current
• Cooling (Min ~ Rated ~ Max): 7.10 A

EER
• 3.43 W/W
• 11.69 (Btu/h)/W
• 12.33 (kJ/h)/W

Power Supply
• Power Supply: 1, 230, 60 (Ø, V, Hz)
• Available Voltage Range: 187 ~ 276 V
• Power Factor – Cooling: 94%
• Moisture Removal: 1.25 l/h / 2.64 pts/h
• Circuit Breaker: 25 A
• Power Supply Cable: 3 × 1.5 No. × mm²
• Power Supply to Unit: Indoor
• Power and Communication Cable: 4 × 1.5 No. × mm²

Indoor Unit
• Air Flow Rate – Cooling, Max/H/M/L
– 18/12.7/10.2/8.4 m³/min
– 635.7/448.5/360.2/296.6
• CFMFan Motor Speed – Cooling, Max/H/HM/M/ML/L/SL: 1500/1150/1050/950/860/770/700 rpm
• Sound Pressure Level – Cooling, Max/H/M/L/SL: -/45/40/37/32 dB(A)
• Dimensions (W × H × D) – Net: 998 x 345 x 210 mm
• Dimensions (W × H × D) – Shipping: 1068 x 425 x 279 mm
• Weight – Net: 11.2kg
• Weight – Shipping: 13.2kgDisconnect Switch 25 A
• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)
• Operation Range – Cooling
– 16 ~ 32 °C DB
– 61 ~ 90 °F DB
– 10 ~ 23 °C WB
– 50 ~ 73.4 °F WB

Outdoor Unit
• Air Flow Rate –
– Max31.0 m³/min
– 1095 CFM
• Sound Pressure Level – Cooling, Rated: 53 dB(A)
• Dimensions (W × H × D) – Net: 770 x 545 x 288 mm
• Dimensions (W × H × D) – Shipping: 920 x 588 x 393 mm
• Weight – Net: 32.5kg
• Weight – Shipping: 34.8kg
• Max. Fuse Size: 15 A
• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)
• Operation Range – Cooling 18 ~ 48 °C DB

Piping
• Size – Liquid: ø 6.35 mm
• Size – Gas: ø 12.7 mm
• Connections Method – Indoor/Outdoor: Flared/Flared
• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm
• Max Piping Length Capacity: 98.7%

Between Indoor & Outdoor
• Piping Length – Min/Standard/Max: 3/7.5/30 m
• Piping Length – No Charge: 12.5 m
• Max. Elevation Difference: 20m
• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant
• Type: R32
• Pre Charge: 950g
• Additional Charge: 15g/m
• Control: Capillary
• Global Warning Potential: 675
• t-CO₂ eq: 0.641

Tool Code (Chassis)
• Indoor / Outdoor: SK / UL2

Compressor
• Type: Twin Rotary
• Model: DAT156MAD
• Motor Type: BLDC
• Oil Type / Maker: PVE (FW68D) / IDEMITSU
• Oil Charge: 400cc
• Manufacturer / Country of Origin: LG Electronics / China

Fan (Indoor)
• Type: Cross Flow Fan
• Motor Output: 30W

FAN (Outdoor)
• Type: Propeller Fan
• Motor Type: BLDC
• Motor Output: 43W
• Motor Insulation: Class E
• Motor Enclosure / Ingress Protection: TEAO/IPX4

Heat Exchanger
• Evaporator – Material, Tube / Fin: Cu/Al
• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 16 x 20 x 744) x 1
• Evaporator – Corrosion Protection: PCM
• Evaporator – Fin Type: Slit
• Condenser – Material, Tube / Fin: Cu/Al
• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 24 x 18 x 823) x 1
• Condenser – Corrosion Protection: Gold
• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindnao

Additional information

Brand

LG

Aircon HP

2.0 HP

Aircon Inverter Tech

Inverter

Product Category

Split Type Aircon
