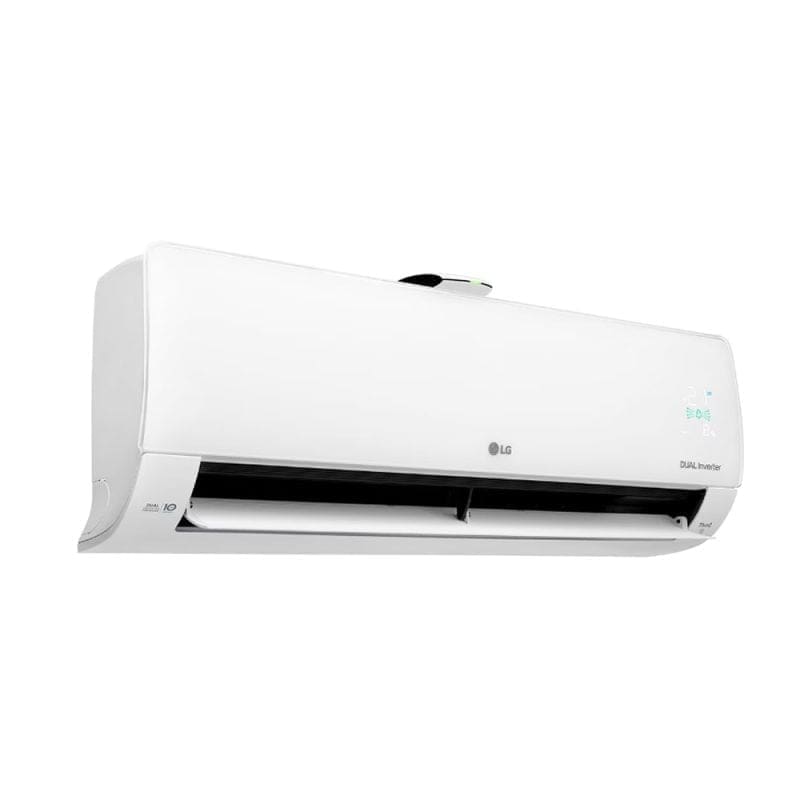

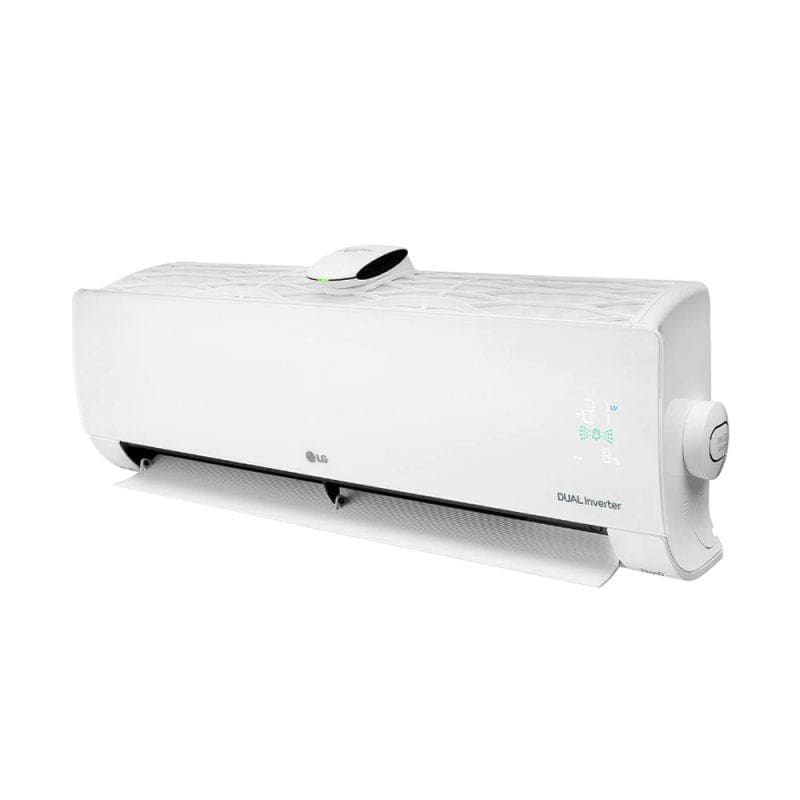

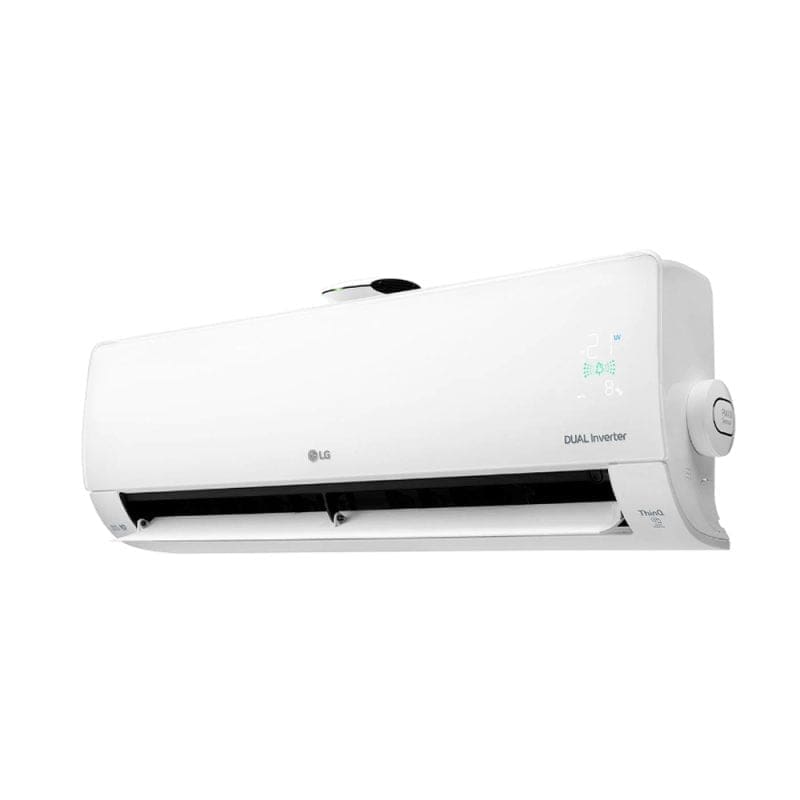

LG 2.0 HP, Dual Inverter Compressor Split Type Aircon HS18APX

Description

Capacity
• Cooling (Min ~ Rated ~ Max)
– 1.75 ~ 5.28 ~ 6.07 kW
– 5,972 ~ 18,000 ~ 20,700 Btu/h
– 6,300 ~ 18,990 ~ 21,839 Btu/h
• Capacity: 2HP

Power Input
• Cooling (Min ~ Rated ~ Max): 315 ~ 1,460 ~ 1,950 W

Running Current
• Cooling (Min ~ Rated ~ Max): 1.60 ~ 6.80 ~ 9.00 A

EER
• 3.61 W/W
• 12.33 (Btu/h)/W13.01 (kJ/h)/W

Power Supply
• Power Supply: 1, 230, 60 (Ø, V, Hz)
• Available Voltage Range: 187 ~ 276 V
• Power Factor – Cooling: 97.5%
• Moisture Removal: 2.50 l/h

Indoor Unit
• Air Flow Rate – Cooling, Max/H/M/L: 18.5/12.4/9.7/8.0 m³/min
• Sound Pressure Level – Cooling, Max/H/M/L/SL: -/46/42/38/32 dB(A)
• Dimensions (W × H × D) – Net: 1020 × 385 × 210 mm
• Dimensions (W × H × D) – Shipping: 1073 × 433 × 276 mm
• Weight – Net: 12.0kg
• Weight – Shipping: 13.8kg
• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)

Outdoor Unit
• Air Flow Rate – Max: 49.0 m³/min
• Fan Motor Speed – Cooling, Min ~ Max: 380 ~ 650 rpm
• Sound Pressure Level – Cooling, Rated: 53 dB
• Dimensions (W × H × D) – Net: 870 × 650 × 330
• Dimensions (W × H × D) – Shipping: 1040 × 710 × 455 mm
• Weight – Net: 42.0kg
• Weight – Shipping: 46.0kg
• Max. Fuse Size: 20A
• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)
• Operation Range – Cooling: 18 ~ 48 °C DB

Circuit Breaker
• Circuit Breaker: 25A
• Power Supply Cable: 3 x 1.5 No. x mm²
• Power Supply to Unit: Indoor
• Power and Communication Cable: 4 x 1.5 No. x mm²

Piping
• Size – Liquid: ø 6.35 mm
• Size – Gas: ø 12.7 mm
• Connections Method – Indoor/Outdoor: Flared/Flared
• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm

Between Indoor & Outdoor
• Piping Length – Min/Standard/Max: 3/7.5/30 m
• Piping Length – No Change: 12.5 m
• Max. Elevation Difference: 20m
• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant
• Type: R32
• Pre Charge: 1050g
• Additional Charge: 20g/m
• Control: Electronic Expansion Valve
• Global Warning Potential: 675
• t-CO₂ eq: 0.709
• Tool Code (Chassis) – Indoor/Outdoor: SK/U24A

Compressor
• Type Twin RotaryModel: DAT156MAD
• Motor Type: BLDC
• Oil Type / Maker: PVE (FW68D)/IDEMITSU
• Oil Charge: 400cc
• Manufacturer / Country of Origin: LG Electronics/China

Fan (Indoor)
• Type: Cross Flow Fan
• Motor Output: 30W

FAN (Outdoor)
• Type: Propeller, Fan
• Motor Type: BLDC
• Motor Output: 85W
• Motor Insulation: Class E
• Motor Enclosure / Ingress Protection: TEAO/IPX4

Heat Exchanger
• Evaporator – Material, Tube / Fin: Cu/Al
• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 16 x 20 x 744) x 1
• Evaporator – Corrosion Protection: PCM
• Evaporator – Fin Type: Slit
• Condenser – Material, Tube / Fin: Cu/Al
• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 28 x 18 x 940) x 1
• Condenser – Corrosion Protection: Gold
• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindanao
