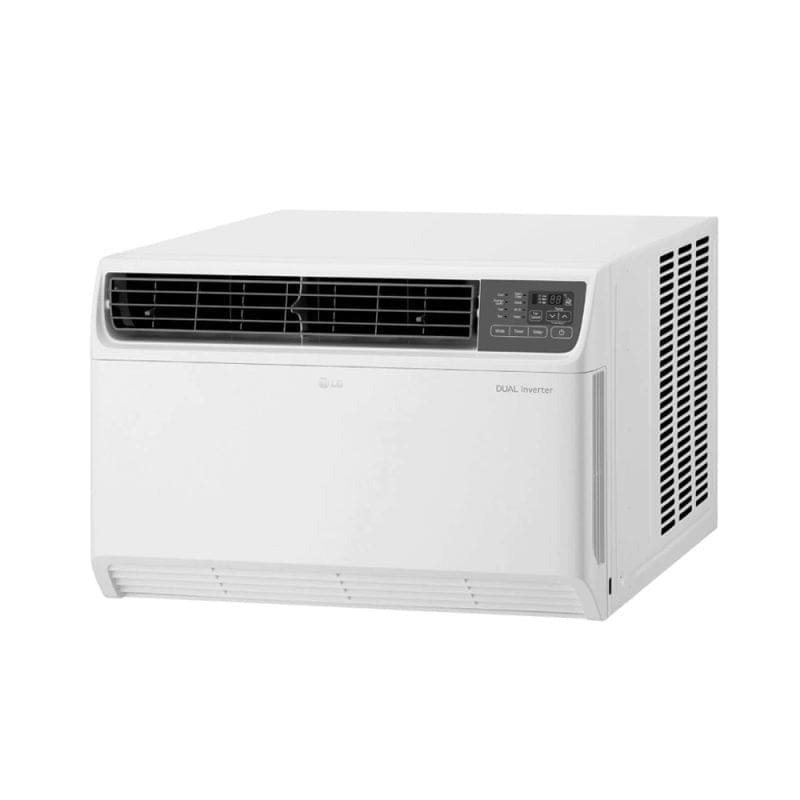

LG 2.0 HP, Dual Inverter Compressor LA200EC

Description

Performance
• Cooling – Capacity: 18,000 (kJ/h)
• Cooling – Capa. Range (Btu/h): 7,500 ~ 20,000 (kJ/h)
• Cooling – Power (W): 1,590 (605~1,915)
• Cooling – Current (A): 7.3 (3.0~8.9)
• Cooling – EER: 11.3 (10.7~12.4) (kJ/hW)
• Cooling – Energy saving Rate (%): (70%) *Compare with PHI 18k & for MKT
• Cooling – Refrigerant (g): 520 (R32)

Electrical Ratings
• Voltage / 60 Hz: 230V/60Hz

Feature
• WiFi Connection: Yes
• Temperature display: ℃
• Temp Control: Thermistor
• Air Diflection: 4-Way (Manual)

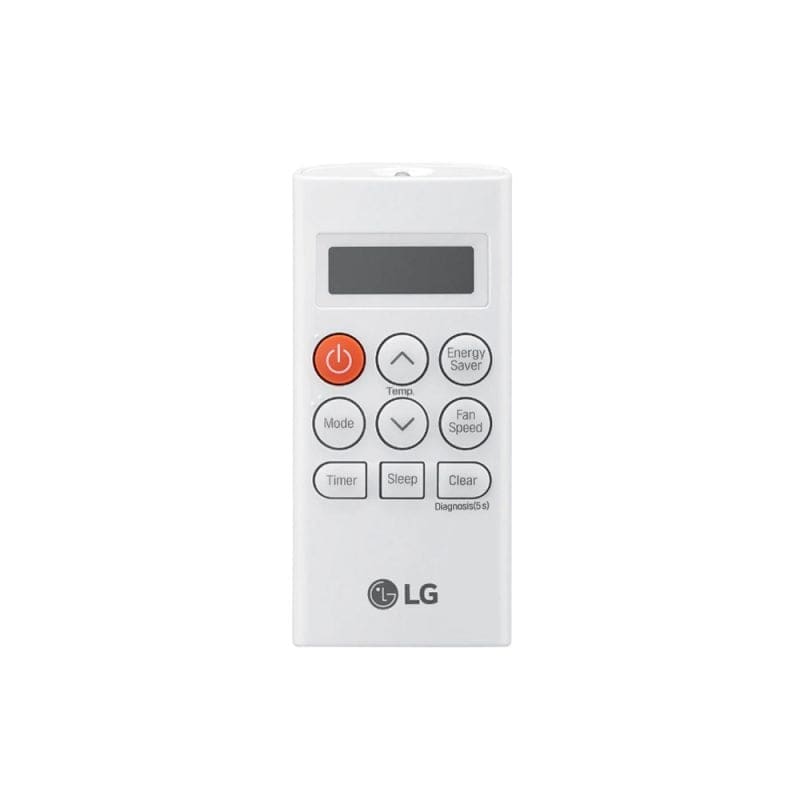

• Remote controller: Good LCD
• Auto Restart: Yes
• Filter Alarm Function: Yes
• Timer: 24Hr,On/Off
• Sleep: 7hr,On/Off
• Energy saver Fuction: Yes
• Outdoor Vent / Exhaust: Yes
• Mode: Hig /Mid/Low/Sleep
• Fan Speed – Cooling: 4
• Fan Speed – Fan Only: 4
• Fan Type (ID/OD): Turbo/Axial
• Chassis Type: Slide In-Out; WT+ Chassis
• Type Air Discharge: TOP Discharge

Others
• Noise – Indoor dB(A) (High/Mid/Low/Sleep): 59/56/53/44Noise – Outdoor dB(A) • (High/Mid/Low/Sleep): 65/63/61/55
• Carton (mm) – Height: 629
• Carton (mm) – Width: 747
• Carton (mm) – Depth: 771
• Dimension (Include Front Grille, mm) – Height: 450
• Dimension (Include Front Grille, mm) – Width: 660
• Dimension (Include Front Grille, mm) – Depth: 779
• Dimension (Front Grille) – Depth: 113
• Dimension (Except Front Grille, mm) – Height: 450
• Dimension (Except Front Grille, mm) – Width: 660
• Dimension (Except Front Grille, mm) – Depth: 666
• Net Weight (kg): 49.5Gross Weight (kg): 56.0
• Stuffing quantity (20ft/40ft/40ft High): 63/144/192
• Compressor: DAT156MAE

Cycle Part
• Compressor: DAT156MAE
• Evaporator: Φ7 544 × 3R × 15C 21FPI
• Condenser: Φ5 561.7 × 3R × 21C 20FPI
• Capillary Tube (ID/OD/Length/EA): 1.0/2.6/1,400/4

Capacity
• Capacity: 2.0HP

Note: Available in Visayas and Mindanao
