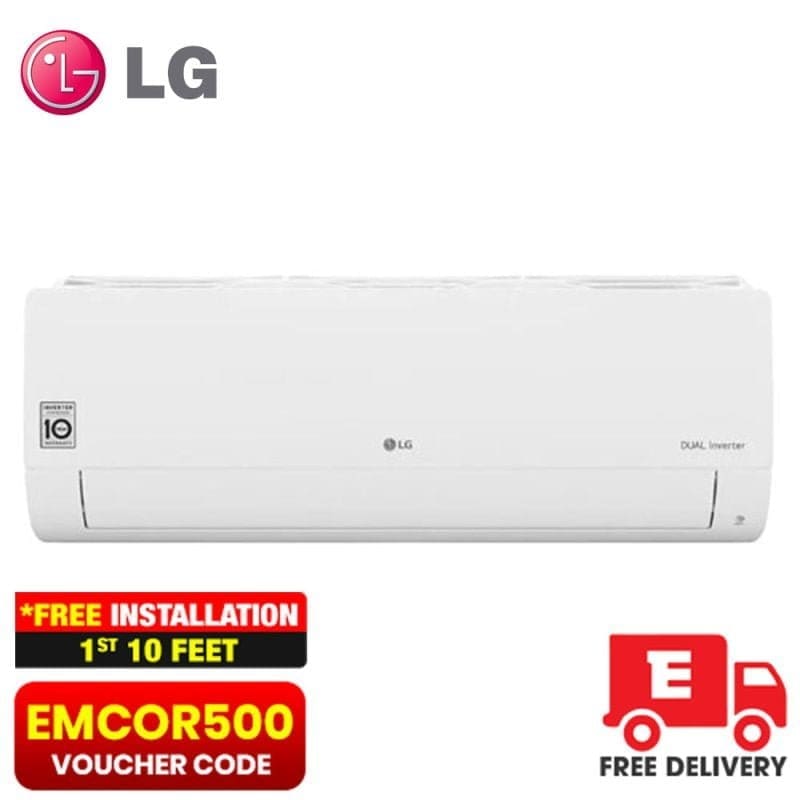

LG 1HP Split Type Inverter Aircon HS09ISY

32,388.00

Apply this code EMCOR500 for an extra P500 discount.

5 in stock

Loading the best price for you

(See if you qualify here)
Apply for Installment

Description

Capacity
• Cooling (Min ~ Rated ~ Max): 2.70 kW; 9,200 Btu/h; 9,706 kJ/h

Power Input
• Cooling (Min ~ Rated ~ Max): 770 W

Running Current
• Cooling (Min ~ Rated ~ Max): 4.40 A

EER
• EER: 3.50 W/W; 11.95 (Btu/h)/W; 12.61 (kJ/h)/W

Power Supply
• Power Supply: 1, 230, 60 (Ø, V, Hz)
• Available Voltage Range: 187 ~ 276 V
• Power Factor – Cooling: 93%
• Moisture Removal: 1.25 l/h; 2.64 pts/h
• Circuit Breaker: 15 A
• Power Supply Cable: 3 × 1 No. × mm²
• Power Supply to Unit: Indoor
• Power and Communication Cable: 4 × 1 No. × mm²

Indoor Unit
• Air Flow Rate – Cooling, Max/H/M/L: 10.5/9/6.6/4.2 m³/min; 371/318/233/148 CFM
• Fan Motor Speed – Cooling, Max/H/HM/M/ML/L/SL: 1350/1150/1020/900/770/650/480 rpm
• Sound Pressure Level – Cooling, Max/H/M/L/SL: -/39/33/27/21 dB(A)
• Dimensions (W × H × D) – Net: 837 x 308 x 189 mm
• Dimensions (W × H × D) – Shipping: 897 x 390 x 254 mm
• Weight – Net: 8.7kg
• Weight – Shipping: 10.5kg
• Disconnect Switch: 15 A
• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)
• Operation Range – Cooling: 16 ~ 32 °C DB; 61 ~ 90 °F DB; 10 ~ 23 °C WB; 50 ~ 73.4 °F WB

Outdoor Unit
• Air Flow Rate – Max: 28.0 m³/min; 989 CFM
• Sound Pressure Level – Cooling, Rated: 50 dB(A)
• Dimensions (W × H × D) – Net: 717 x 495 x 230 mm
• Dimensions (W × H × D) – Shipping: 839 x 532 x 324 mm
• Weight – Net: 21.7kg
• Weight – Shipping: 23.5kg
• Max. Fuse Size: 15 A
• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)
• Operation Range – Cooling: 18 ~ 48 °C DB

Piping
• Size – Liquid: ø 6.35 mm
• Size – Gas: ø 9.52 mm
• Connections Method – Indoor/Outdoor: Flared/Flared
• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm
• Max Piping Length Capacity: 98.7%

Between Indoor & Outdoor
• Piping Length – Min/Standard/Max: 3/7.5/20 m
• Piping Length – No Charge: 12.5 m
• Max. Elevation Difference: 15 m
• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant
• Type: R32
• Pre Charge: 500g
• Additional Charge: 15g/m
• Control: Capillary
• Global Warning Potential: 675
• t-CO₂ eq: 0.338

Tool Code (Chassis)
• Indoor / Outdoor: SJ / UA3

Compressor
• Type: Twin Rotary
• Model: DST066MAA
• Motor Type: BLDC
• Oil Type / Maker: PVE (FW68D) / IDEMITSU
• Oil Charge: 220cc
• Manufacturer / Country of Origin: LG Electronics / China

Fan(Indoor)
• Type: Cross Flow Fan
• Motor Output: 30W

Fan(Outdoor)
• Type: Propeller Fan
• Motor Type: AC
• Motor Output: 25W
• Motor Insulation: Class B
• Motor Enclosure / Ingress Protection: TEAO/IP44

Heat Exchanger
• Evaporator – Material, Tube / Fin: Cu/Al
• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 15 x 21 x 616.8) x 1
• Evaporator – Corrosion Protection: PCM
• Evaporator – Fin Type: Slit
• Condenser – Material, Tube / Fin: Cu/Al
• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 1 x 22 x 21 x 667.5) x 1
• Condenser – Corrosion Protection: Gold
• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindanao only

Additional information

Brand

LG

Product Category

Split Type Aircon

Aircon HP

1.0 HP

Aircon Inverter Tech

Inverter

Aircon Type

Inverter
