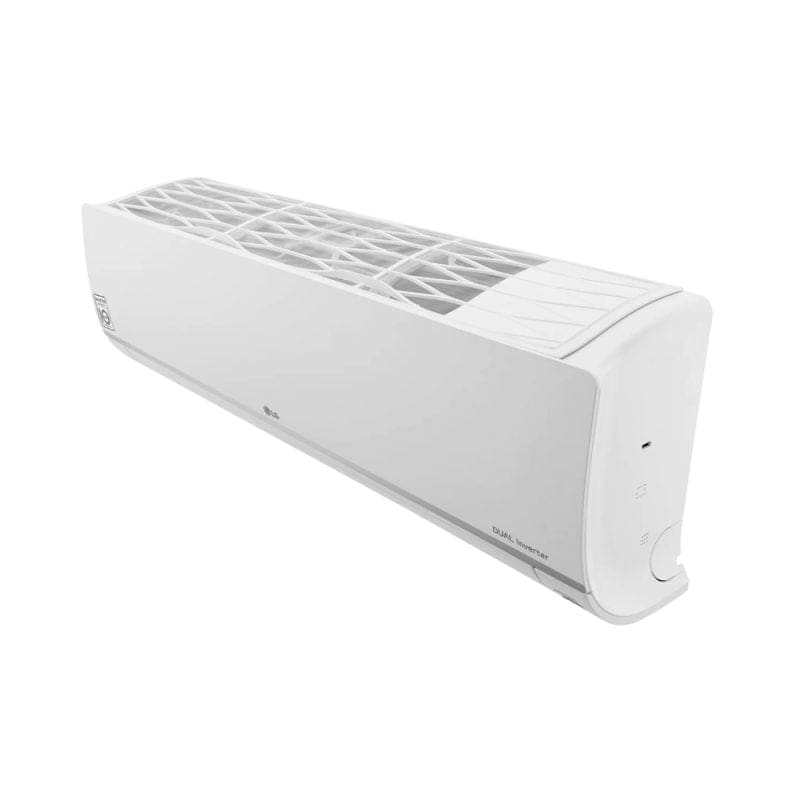

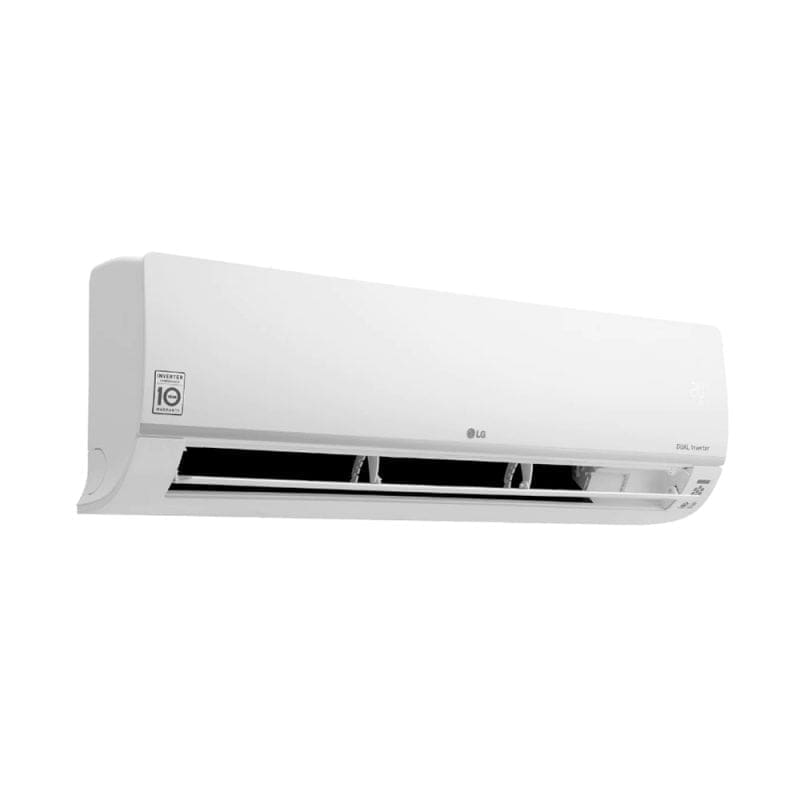

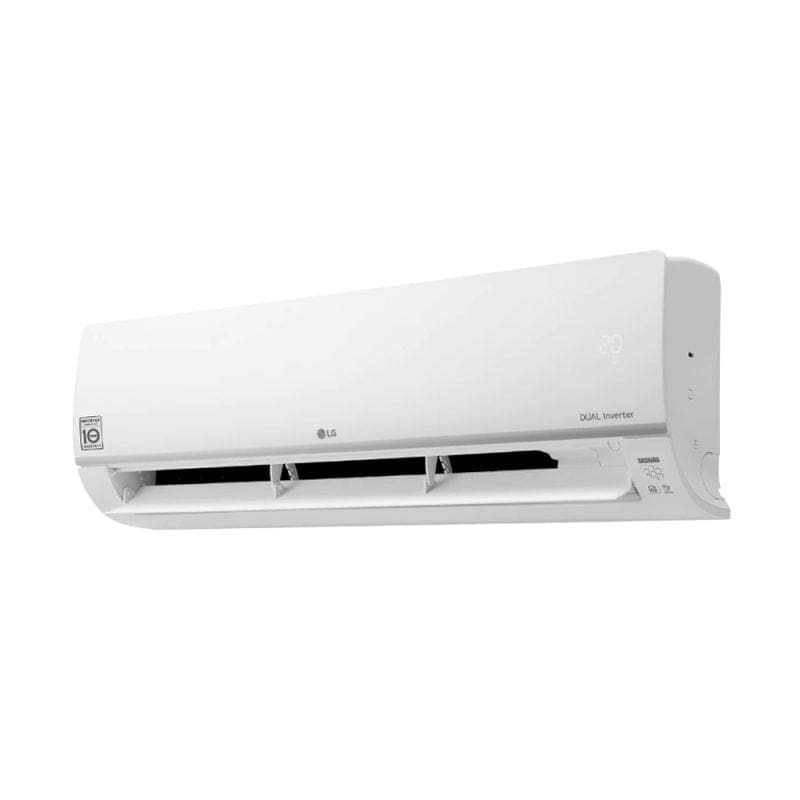

LG 1.5 HP, Dual Inverter Compressor Split Type Aircon HS12IPX

41,388.00

Apply this code EMCOR500 for an extra P500 discount.

1 in stock

Loading the best price for you

(See if you qualify here)
Apply for Installment

Description

Capacity
• Cooling (Min ~ Rated ~ Max)
– 1.43 ~ 3.30 ~ 3.58 kW
– 4,882 ~ 11,260 ~ 12,199 Btu/h
– 5,150 ~ 11,879 ~ 12,870 Btu/h
• Capacity: 1.5HP

Power Input
• Cooling (Min ~ Rated ~ Max): 305 ~ 840 ~ 1,050 W

Running Current
• Cooling (Min ~ Rated ~ Max): 1.60 ~ 4.10 ~ 5.00 A

EER
• 3.93 W/W
• 13.40 (Btu/h)/W
• 14.14 (kJ/h)/W

Power Supply
• Power Supply: 1, 230, 60 (Ø, V, Hz)
• Available Voltage Range: 187 ~ 276 V
• Power Factor – Cooling: 97%
• Moisture Removal: 1.25 l/h

Indoor Unit
• Air Flow Rate – Cooling, Max/H/M/L: 13 / 10 / 6.6 / 4.2 m³/minSound Pressure Level – • Cooling, Max/H/M/L/SL: – / 41 / 35 / 27 / 21 dB(A)
• Dimensions (W × H × D) – Net: 837 x 308 x 189 mm
• Dimensions (W × H × D) – Shipping: 897 x 390 x 254 mm
• Weight – Net: 8.7kg
• Weight – Shipping: 10.5kg
• Exterior Color Code: Munsell 7.5BG 10/2 (RAL 9016)

Outdoor Unit
• Air Flow Rate – Max: 28.0 m³/min
• Fan Motor Speed – Cooling, Min ~ Max: 230 ~ 900 rpm
• Sound Pressure Level – Cooling, Rated: 50 dB(A)
• Dimensions (W × H × D) – Net: 720 x 500 x 230 mm
• Dimensions (W × H × D) – Shipping: 839 x 532 x 324 mm
• Weight – Net: 23.9kg
• Weight – Shipping: 25.9kg
• Max. Fuse Size: 20A
• Exterior Color Code: Munsell 9.54Y 8.34/1.31 (RAL 9001)
• Operation Range – Cooling: 18 ~ 48 °C DB

Circuit Breaker
• Circuit Breaker: 15A
• Power Supply Cable: 3 x 1 No. x mm²
• Power Supply to Unit: Indoor
• Power and Communication Cable: 4 x 1 No. x mm²

Piping
• Size – Liquid: ø 6.35 mm
• Size – Gas: ø 9.52 mm
• Connections Method – Indoor/Outdoor: Flared/Flared
• Drain Hose Size – O.D, I.D: 21.5, 16.0 mm

Between Indoor & Outdoor
• Piping Length – Min/Standard/Max: 3/7.5/20 m
• Piping Length – No Change: 12.5 m
• Max. Elevation Difference: 15m
• Piping Connection Heat Insulation: Both liquid and gas pipes

Refrigerant
• Type: R32
• Pre Charge: 680g
• Additional Charge: 10g/m
• Control: Capillary
• Global Warning Potential: 675
• t-CO₂ eq: 0.459

Compressor
• Type: Twin Rotary
• Model: DST066MAA
• Motor Type: BLDC
• Oil Type / Maker: PVE (FW68D) / IDEMITSU
• Oil Charge: 280cc
• Manufacturer / Country of Origin: LG Electronics / China

Fan (Indoor)
• Type: Cross Flow Fan
• Motor Output: 30W

Fan (Outdoor)
• Type: Propeller, Fan
• Motor Type: BLDC
• Motor Output: 43W
• Motor Insulation: Class E
• Motor Enclosure / Ingress Protection: TEAO/IPX4

Heat Exchanger
• Evaporator – Material, Tube / Fin: Cu/Al
• Evaporator – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 15 x 21 x 616.8) x 1
• Evaporator – Corrosion Protection: PCM
• Evaporator – Fin Type: Slit
• Condenser – Material, Tube / Fin: Cu/Al
• Condenser – (ø x Row x Column x FPI x L) x Qty.: (ø7 x 2 x 22 x 18 x 667) x 1
• Condenser – Corrosion Protection: Gold
• Condenser – Fin Type: Louver

Note: Available in Visayas and Mindanao

Additional information

Brand

LG

Product Category

Split Type Aircon

Aircon HP

1.5 HP

Aircon Inverter Tech

Inverter
